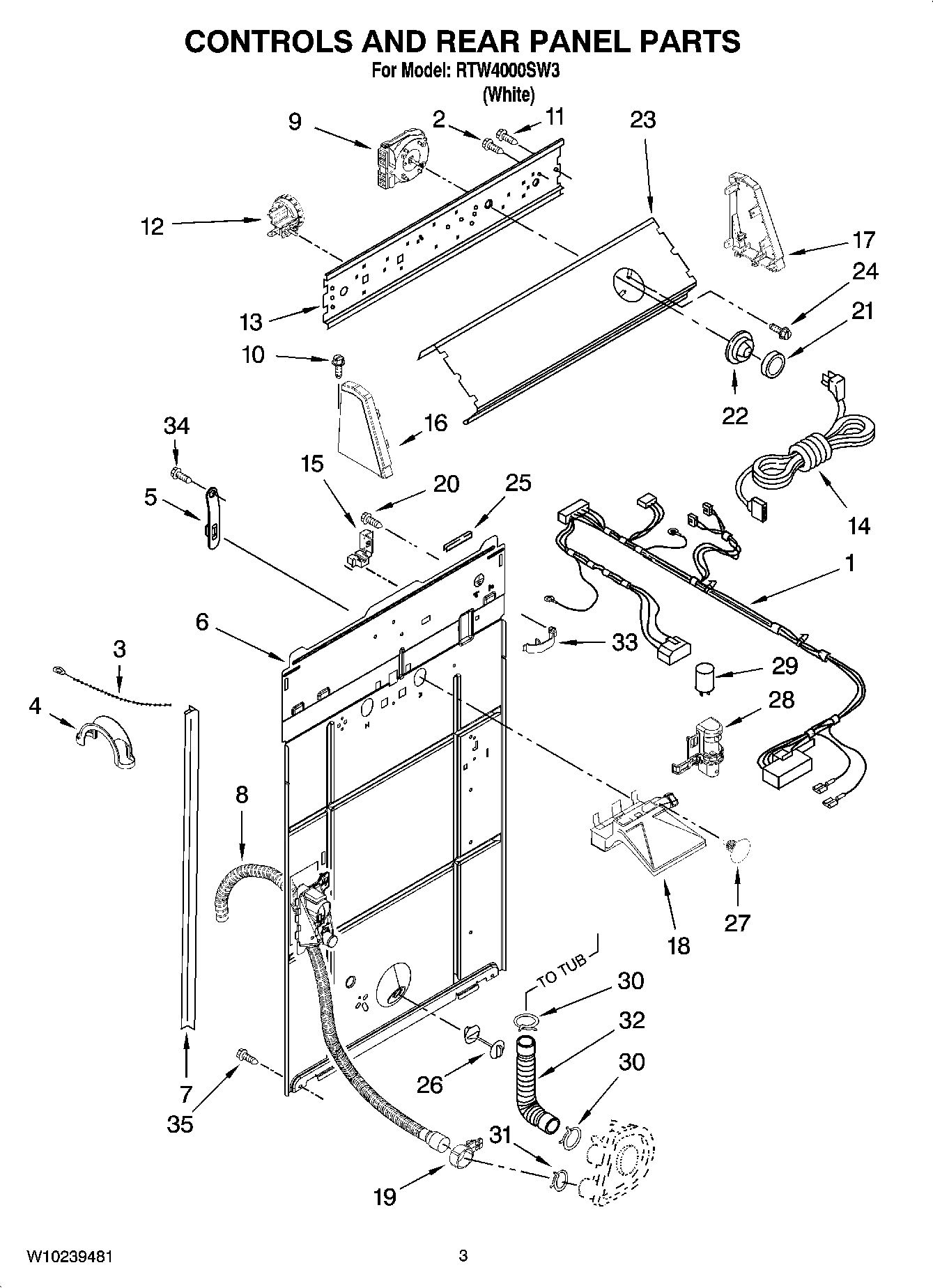

RTW4000SW3 02 – CONTROL AND REAR PANEL PARTS

Products

Position	Product
1	Harness, Wiring (For Detail See Pages 9 & 10)
2	3400073 Whirlpool Screw
3	WPW10339879 Whirlpool Wire Tie
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10201447 Whirlpool Timer
10	WP388326 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339332 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	Cap, End (R.H.)
18	Valve, Water Inlet-Single Port W/Vacuum Break
19	8541668 Whirlpool Washer Clamp
20	WP3351614 Whirlpool Screw
21	WP3957823 Whirlpool Knob
22	Dial, Timer
23	Panel, Console
24	WP3400818 Whirlpool Screw
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clip, Push-In Retainer
28	Clip, Capacitor
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness
34	WP9740848 Whirlpool Dishwasher Screw
35	WP3390631 Whirlpool Screw
