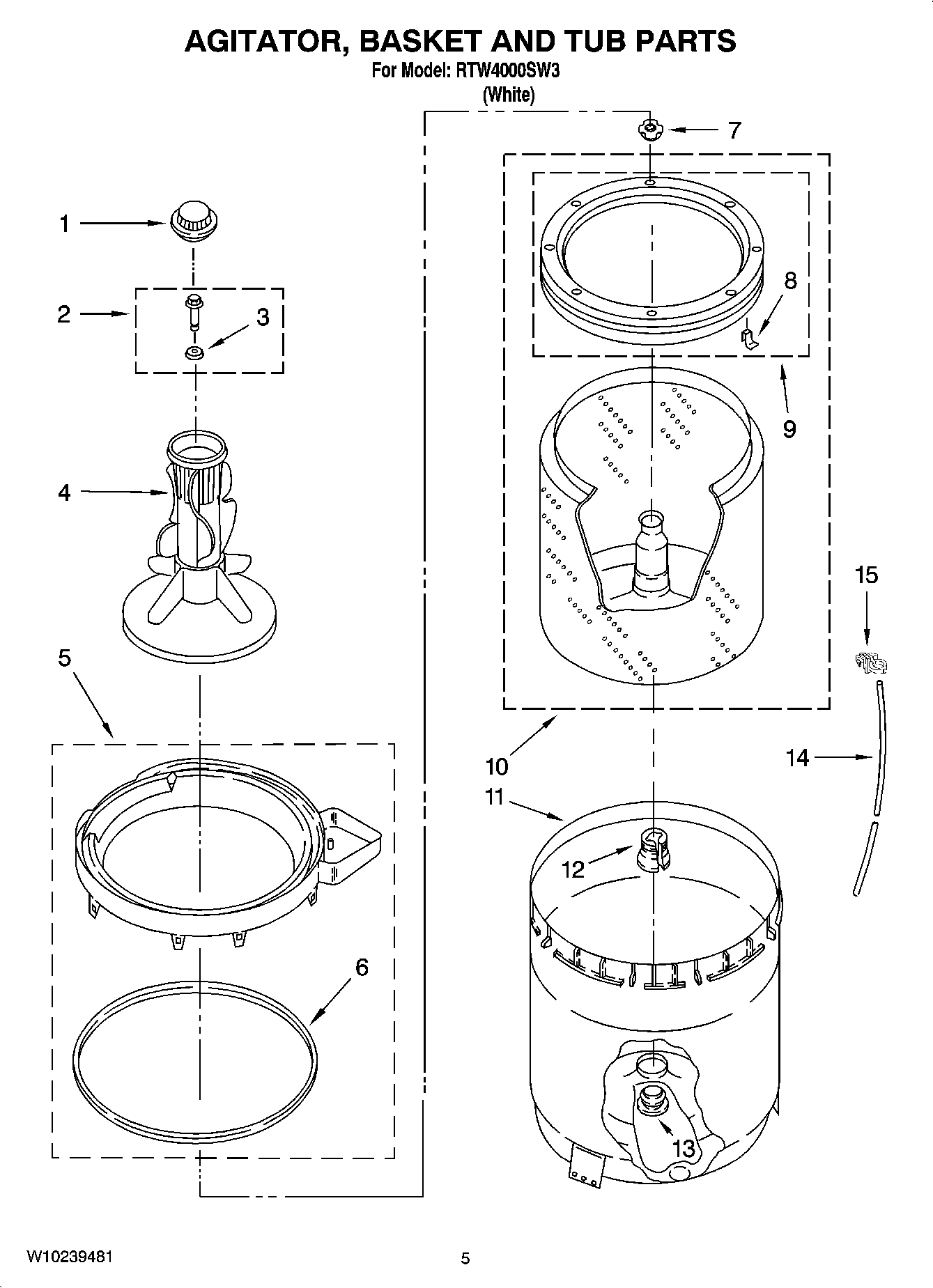

RTW4000SW3 03 – AGITATOR, BASKET AND TUB PARTS

RTW4000SW3 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

RTW4000SW3 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4Agitator
5Tub Ring & Gasket Assembly
6WP3359586 Whirlpool Tub Seal
7WP21366 Whirlpool Spanner Nut
8WP8519815 Whirlpool Washer Balance Ring Clip
9WP3956205 Whirlpool Balance Ring
10Basket & Balance Ring
11Tub
12WP389140 Whirlpool Drive Block or Bell
13W10814296 Whirlpool Washer Center Post Seal Gasket
14WP353244 Whirlpool Hose
152219077 Whirlpool Refrigerator Clip
