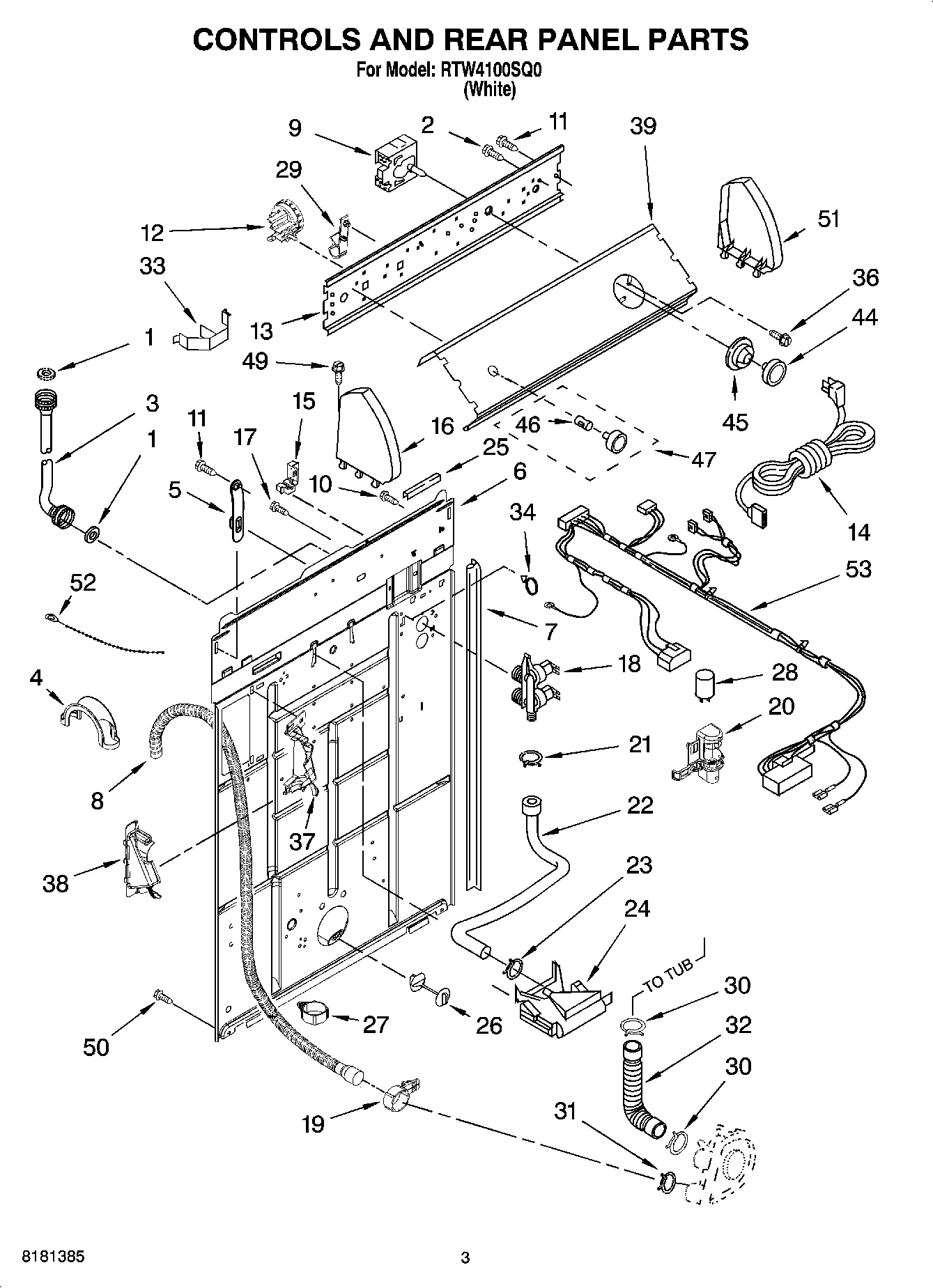

RTW4100SQ0 02 – CONTROLS AND REAR PANEL PARTS

RTW4100SQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

RTW4100SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8546681 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339334 Whirlpool Washer Water Level Control Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
17WP9740848 Whirlpool Dishwasher Screw
18285805 Whirlpool Washer Water Inlet Valve
198541668 Whirlpool Washer Clamp
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28CAPACITOR
29Retainer, Harness
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
348559320 Whirlpool Clip
36WP3400818 Whirlpool Screw
38WPW10096921 Whirlpool Hose
39Panel, Console
44WP8538949 Whirlpool Knob
45WP8538955 Whirlpool Dial
46WP8536939 Whirlpool Spring Clip
47KNOB
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
52WPW10339879 Whirlpool Wire Tie
53Harness, Wiring (For Detail See Pages 9 & 10)
