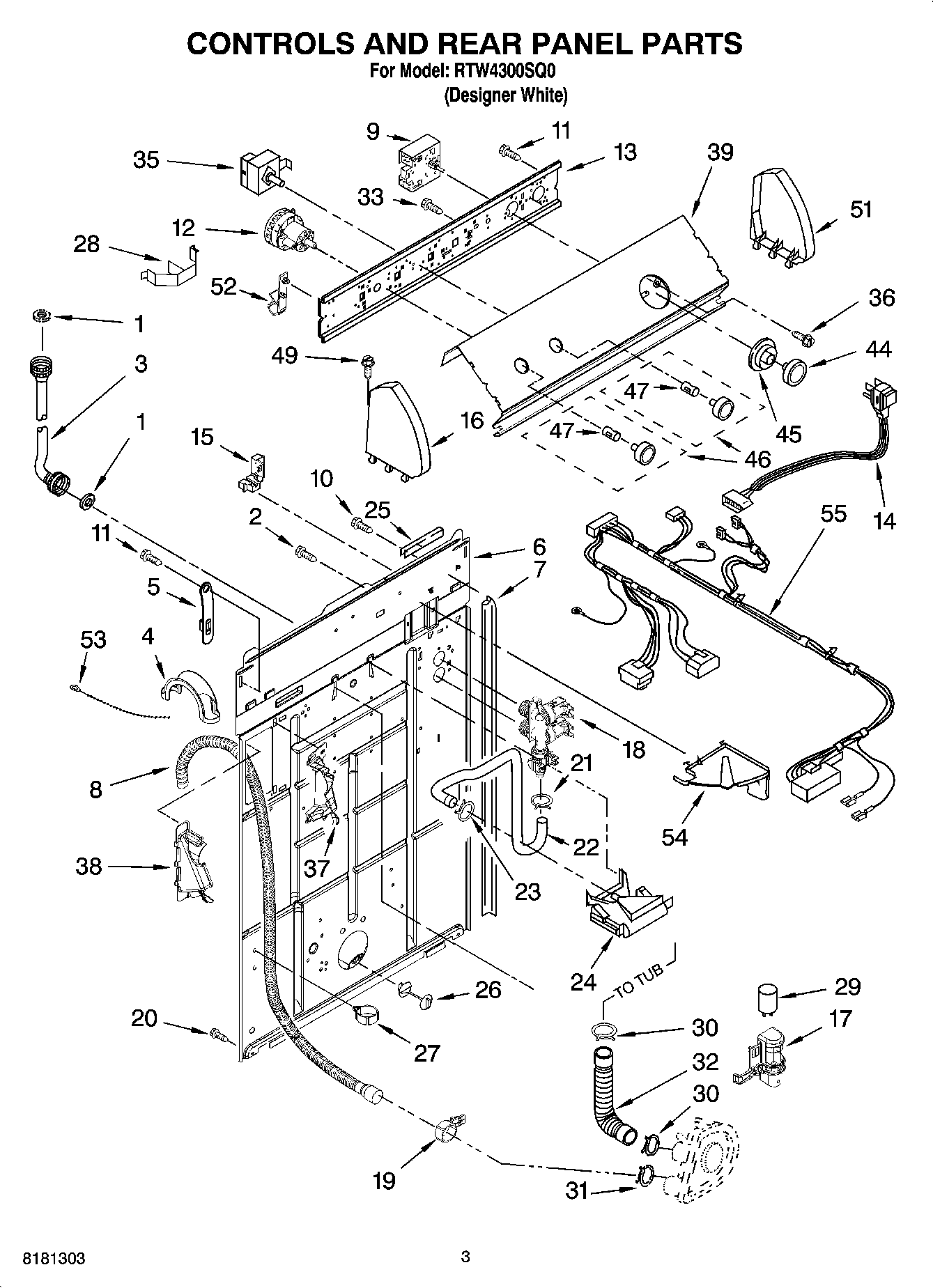

RTW4300SQ0 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
RTW4300SQ0 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP16123 Whirlpool Washer
2
WP9740848 Whirlpool Dishwasher Screw
3
WP89503 Whirlpool Washer Fill Hose
3
FILL HOSE 5' W/WASHER
4
WP8577378 Whirlpool Retainer
5
WP8568314 Whirlpool Strap
6
Panel, Rear
7
WP62747 Whirlpool Pad
9
TIMER-WASHER
10
WP3351614 Whirlpool Screw
11
WP90767 Whirlpool Screw
12
W10339334 Whirlpool Washer Water Level Control Switch
13
WP3948608 Whirlpool Bracket
14
Cord, Power (Includes Item 15)
15
Strain Relief, Power Cord
17
Clip, Capacitor
18
WP8578341 Whirlpool Valve
19
8541668 Whirlpool Washer Clamp
20
WP3390631 Whirlpool Screw
21
WP596669 Whirlpool Hose Clamp
22
HOSE
24
WP3360977 Whirlpool Washer Tub Fill Nozzle
25
Edge Protector
26
WP8519200 Whirlpool Support Assembly
27
Clamp, Hose
28
Clip, Harness & Pressure Hose
29
CAPACITOR
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
3400073 Whirlpool Screw
35
WP8578337 Whirlpool Water Temperature Switch
36
WP3400818 Whirlpool Screw
38
WPW10096921 Whirlpool Hose
39
Panel, Console
44
WP8538949 Whirlpool Knob
45
WP8538955 Whirlpool Dial
46
KNOB
47
WP8536939 Whirlpool Spring Clip
49
WP388326 Whirlpool Screw
51
279960 Whirlpool Endcap Assembly
52
Retainer, Harness
53
WPW10339879 Whirlpool Wire Tie
54
WPL 8539874
55
Harness, Wiring (For Detail See Pages 9 & 10)
←
