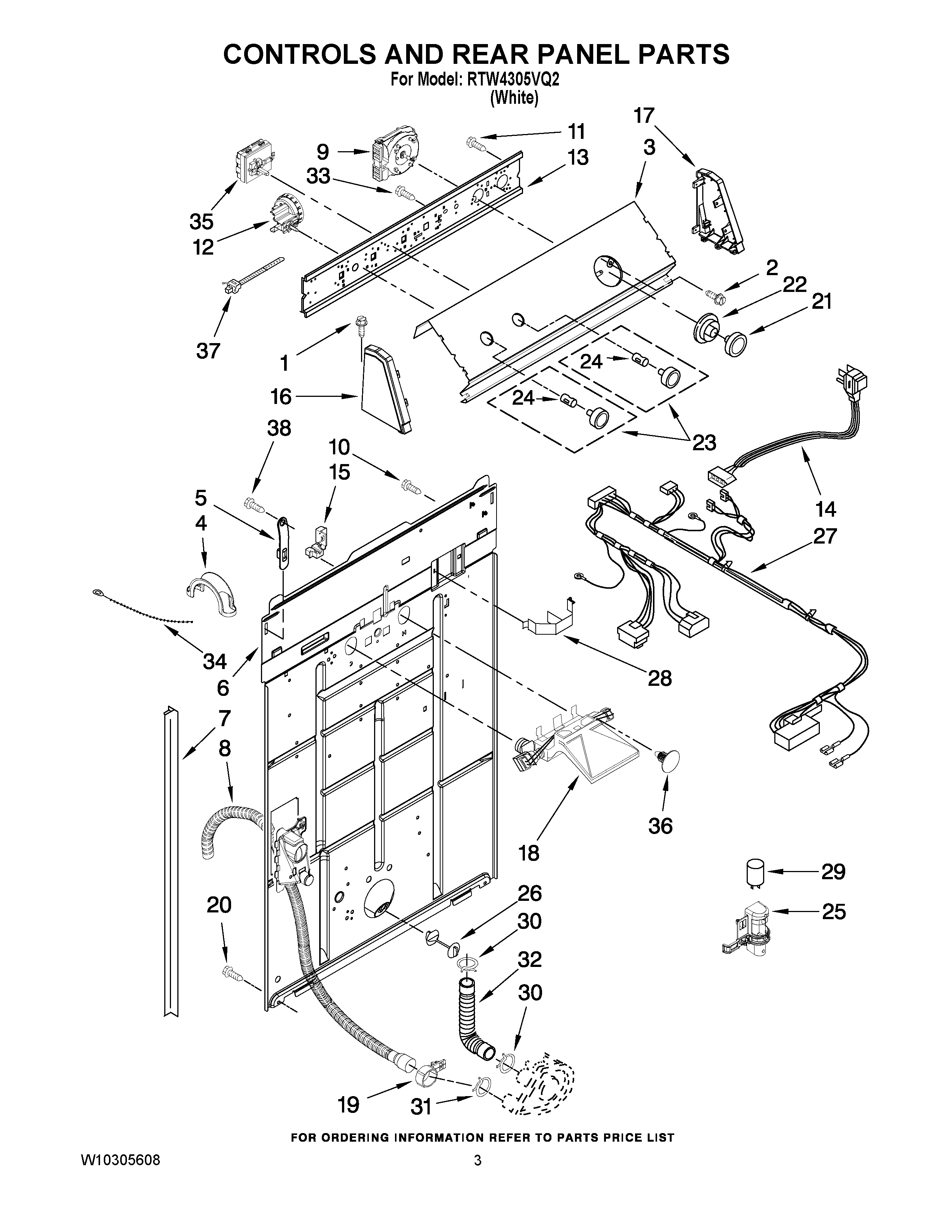

RTW4305VQ2 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
RTW4305VQ2 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP388326 Whirlpool Screw
2
WP3400818 Whirlpool Screw
3
Panel, Control
4
WP8577378 Whirlpool Retainer
5
WP8568314 Whirlpool Strap
6
WPW10194450 Whirlpool Rear Panel
7
WP62747 Whirlpool Pad
8
WPW10189267 Whirlpool Drain Hose
9
WPW10199989 Whirlpool Timer
10
WP3351614 Whirlpool Screw
11
WP90767 Whirlpool Screw
12
WPW10231402 Whirlpool Washer Water Level Switch
13
WP3948608 Whirlpool Bracket
14
W10820044 Whirlpool Power Cord
15
Strain Relief, Power Cord
17
279960 Whirlpool Endcap Assembly
18
WPW10144820 Whirlpool Washer Water Inlet Valve
19
8541668 Whirlpool Washer Clamp
20
WP3390631 Whirlpool Screw
21
WP8538949 Whirlpool Knob
22
WP8538955 Whirlpool Dial
23
KNOB
24
WP8536939 Whirlpool Spring Clip
25
Clip, Capacitor
26
WP8519200 Whirlpool Support Assembly
27
HARNESS WIRING
28
Clip, Harness & Pressure Hose
29
CAPACITOR
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
3400073 Whirlpool Screw
34
WPW10339879 Whirlpool Wire Tie
35
WPW10112532 Whirlpool Temperature Control Switch
36
Clip, Push-In Retainer
37
CABLE TIE
38
WP9740848 Whirlpool Dishwasher Screw
←
