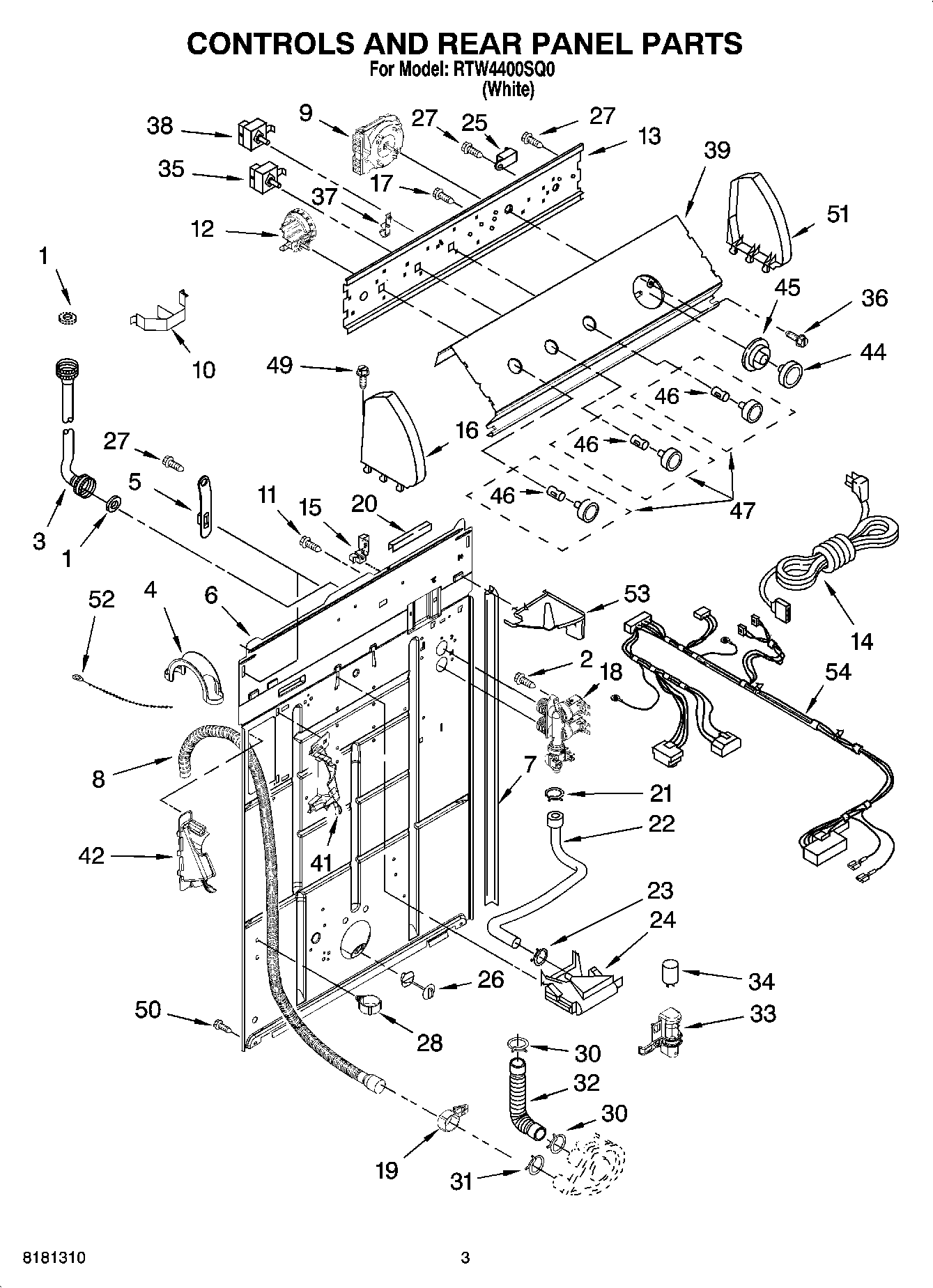

RTW4400SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	Clip, Harness & Pressure Hose
11	WP3351614 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
17	3400073 Whirlpool Screw
18	WP8578341 Whirlpool Valve
19	8541668 Whirlpool Washer Clamp
20	Edge Protector
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP694419 Whirlpool Buzzer Adjuster
26	WP8519200 Whirlpool Support Assembly
27	WP90767 Whirlpool Screw
28	Clamp, Hose
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Capacitor
34	CAPACITOR
35	WP8578337 Whirlpool Water Temperature Switch
36	WP3400818 Whirlpool Screw
37	Retainer, Harness
38	WPW10168257 Whirlpool Cycle Switch
39	Panel, Console
42	WPW10096921 Whirlpool Hose
44	WP8538949 Whirlpool Knob
45	WP8538955 Whirlpool Dial
46	WP8536939 Whirlpool Spring Clip
47	KNOB
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	279960 Whirlpool Endcap Assembly
52	WPW10339879 Whirlpool Wire Tie
53	WPL 8539874
54	WPL W10039470
