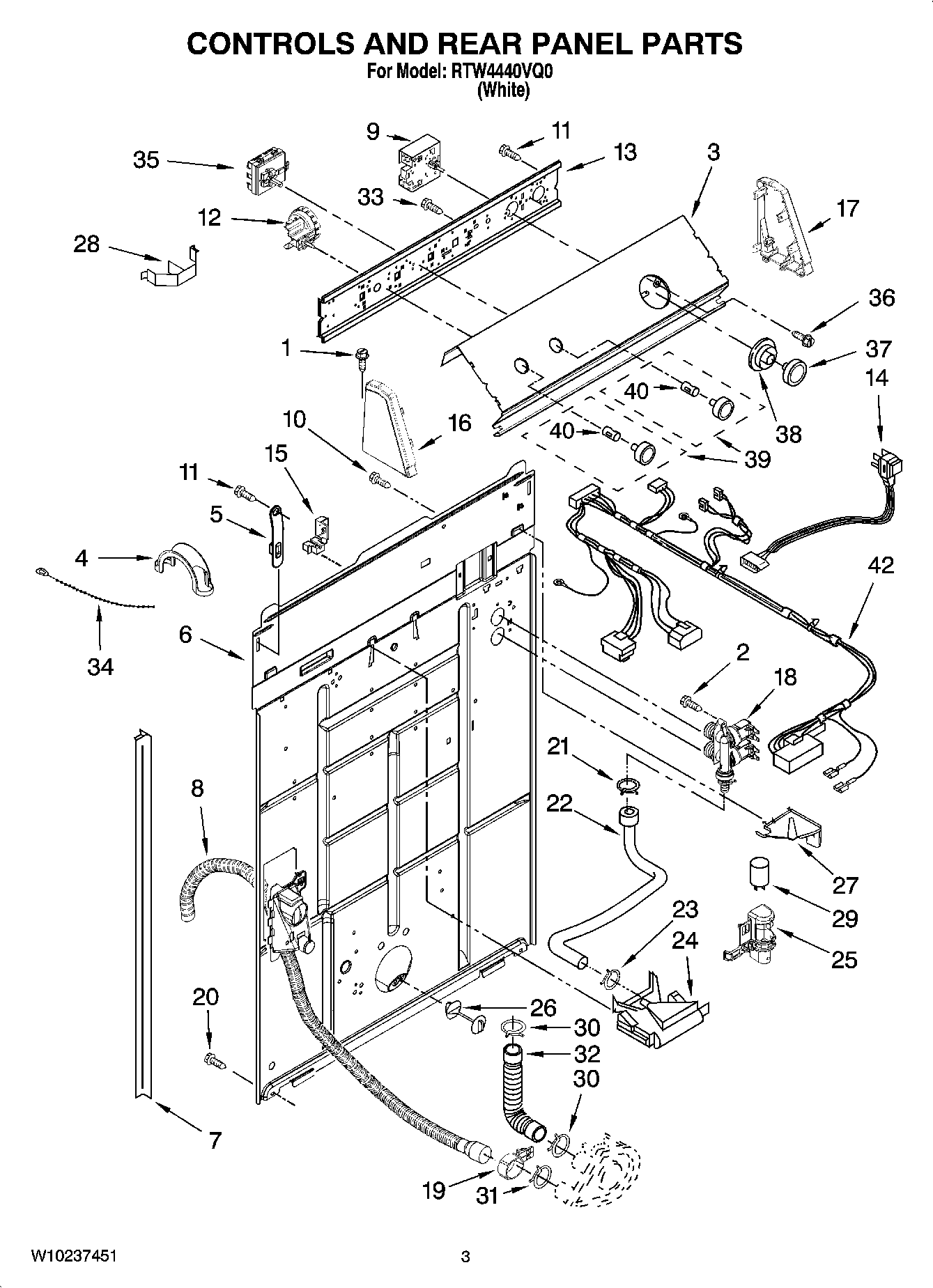

RTW4440VQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP388326 Whirlpool Screw
2	WP9740848 Whirlpool Dishwasher Screw
3	Panel, Control
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	TIMER-WASHER
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	279960 Whirlpool Endcap Assembly
18	WP3979346 Whirlpool Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	WP3390631 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Clip, Capacitor
26	WP8519200 Whirlpool Support Assembly
27	WPL 8539874
28	Clip, Harness & Pressure Hose
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3400073 Whirlpool Screw
34	WPW10339879 Whirlpool Wire Tie
35	WPW10184148 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	WP8538949 Whirlpool Knob
38	WP8538955 Whirlpool Dial
39	KNOB
40	WP8536939 Whirlpool Spring Clip
42	Harness, Wiring (For Detail See Pages 9 & 10)
