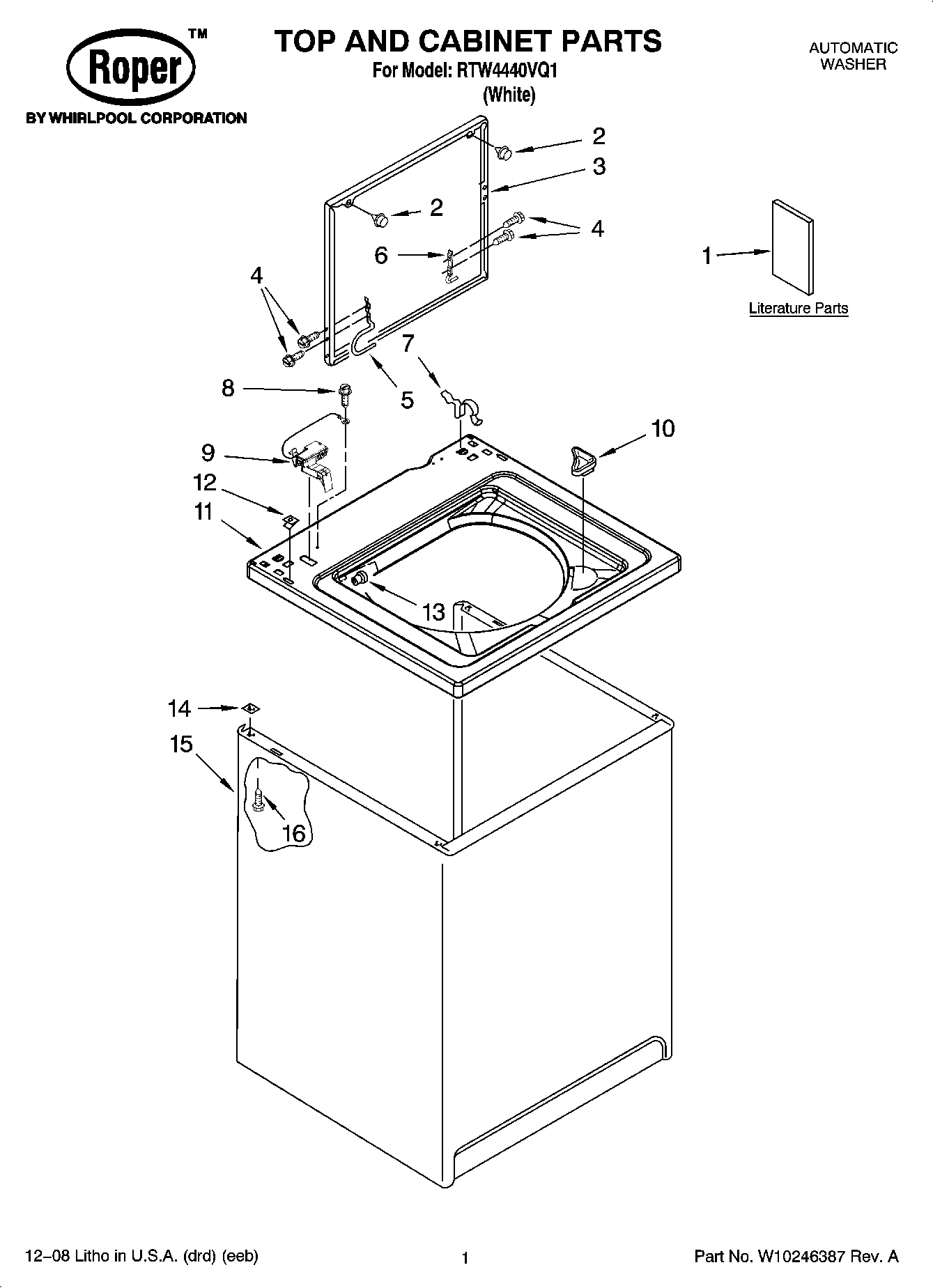

RTW4440VQ1 01 – TOP AND CABINET PARTS

RTW4440VQ1 01 – TOP AND CABINET PARTS

Written by

in

RTW4440VQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Wiring Diagram
1Installation Instructions (English/French)
1Installation Instructions (Spanish)
1FEATURE SHEET
1USE & CARE GUIDE
2WP9724509 Whirlpool Bumper
3WPW10193857 Whirlpool Lid Assembly
4SCREW
5Hinge, Lid (L.H.)
6WP91770 Whirlpool Hinge
7WP62780 Whirlpool Cabinet Clip
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP3362952 Whirlpool Bezel
11Top (White)
12WP357213 Whirlpool Hinge Stopper
13WP21258 Whirlpool Washer Lid Hinge Bearing
14WP62750 Whirlpool Spacer
1563424 Whirlpool Cabinet Assembly
16WP3390631 Whirlpool Screw
