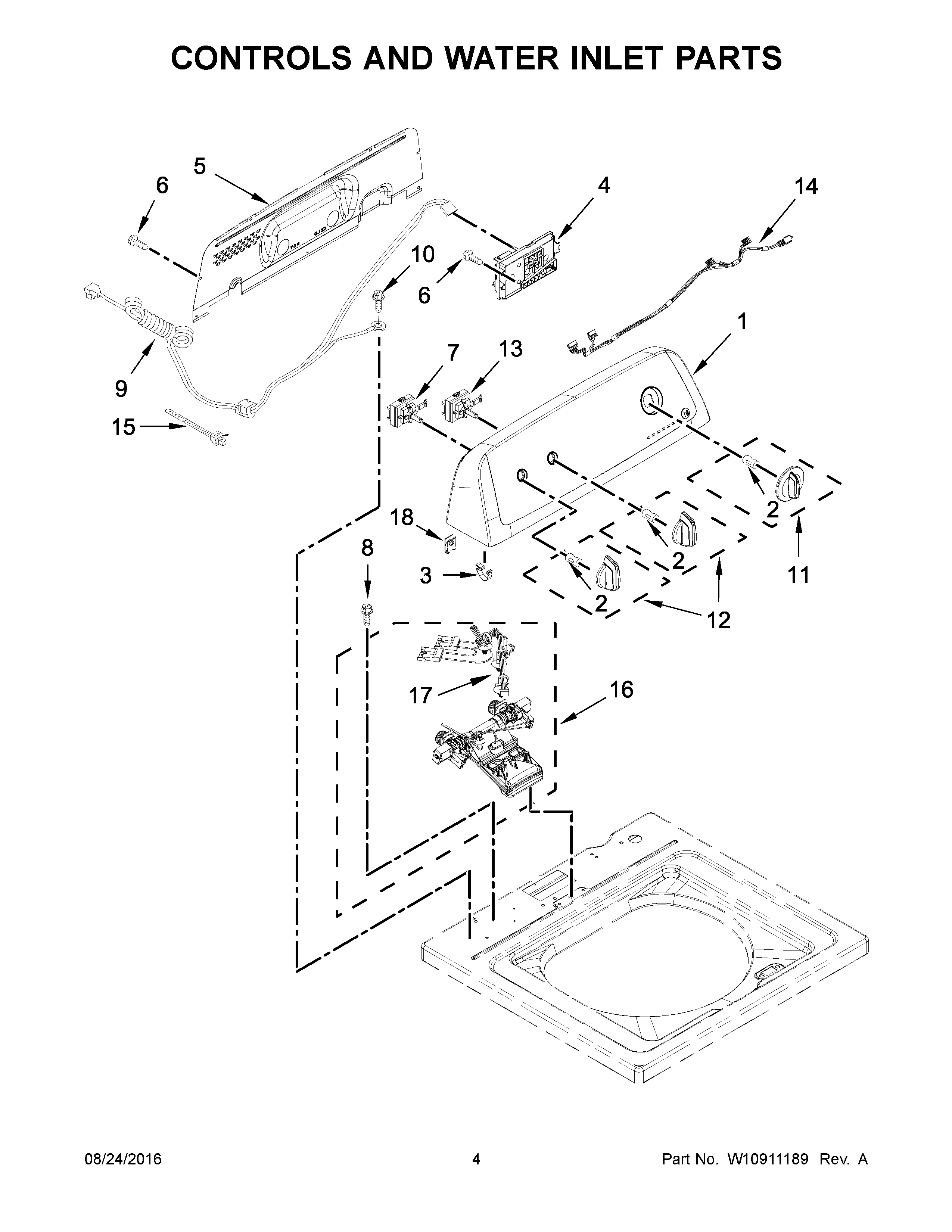

RTW4516FW1 03 – CONTROLS AND WATER INLET PARTS

RTW4516FW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

RTW4516FW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W10890625 Whirlpool Console
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4W11124712 Whirlpool Electronic Control Board + Core
5W10409320 Whirlpool Rear Panel
6WP489069 Whirlpool Compactor Screw
7WPW10414398 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9W10850133 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13W10859568 Whirlpool Cycle Switch
14W11256701 Whirlpool Wire Harness
15W10339680 Whirlpool Wire Tie
16W11210459 Whirlpool Washer Water Inlet Valve
17W10678671 Whirlpool Wire Harness
18W11213336 Whirlpool Nut
