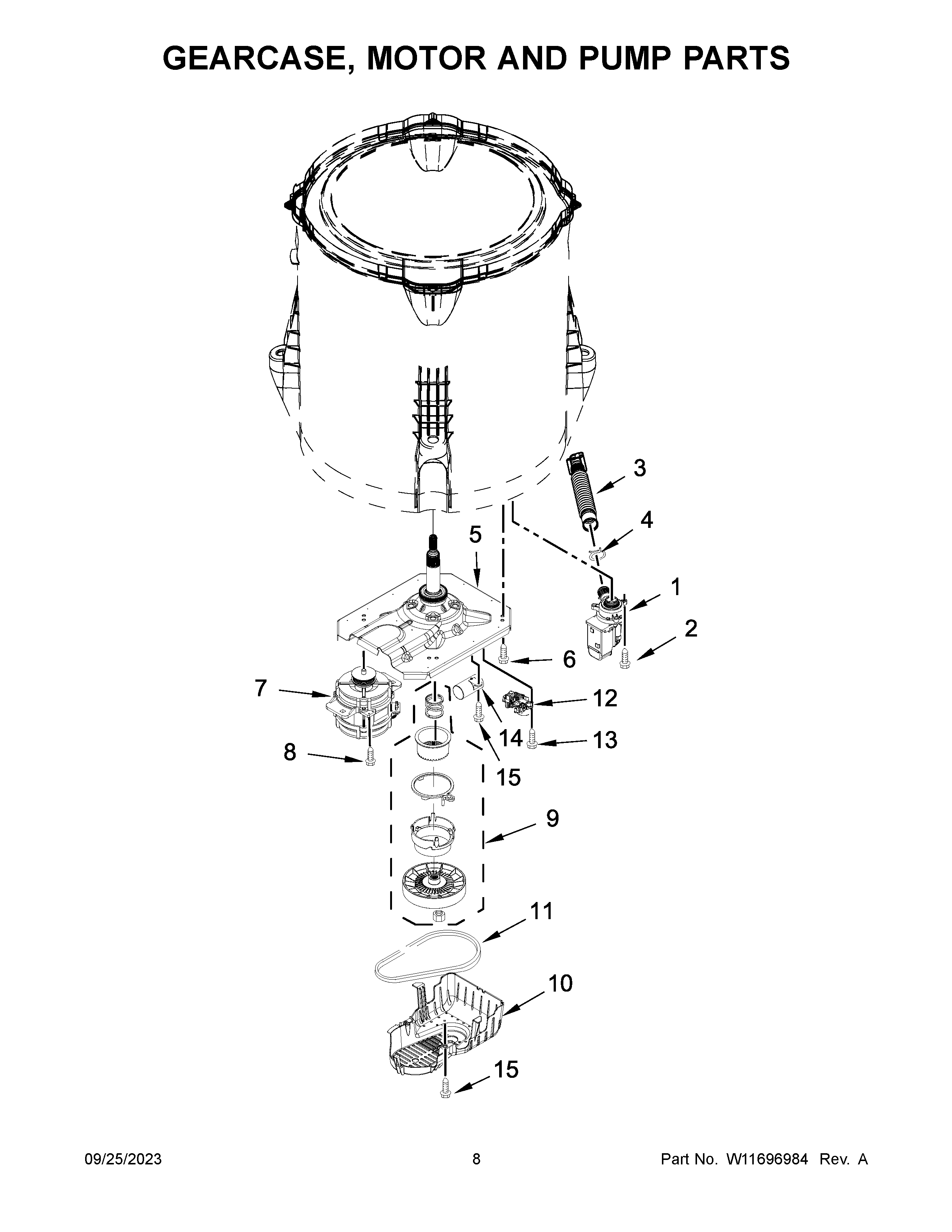

RTW4519PW0 05 – GEARCASE, MOTOR AND PUMP PARTS

RTW4519PW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

RTW4519PW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	PUMP-WATER
2	WPW10004910 Whirlpool Screw
3	W10899966 Whirlpool Hose Assembly
4	WP285655 Whirlpool Hose Clamp
5	GEARCASE (DW1)
6	WPW10249633 Whirlpool Screw
7	W11686050 Whirlpool Drive Motor
8	W11685857 Whirlpool Screw Assembly
9	W10721967 Whirlpool Washer Cam Kit
10	W11409708 Whirlpool Shield Assembly
11	W11239857 Whirlpool Washer Belt
12	ACTUATOR
13	W11596033 Whirlpool Microwave Screw
14	CAPACITOR-SCREW
15	W11573574 Whirlpool Screw
