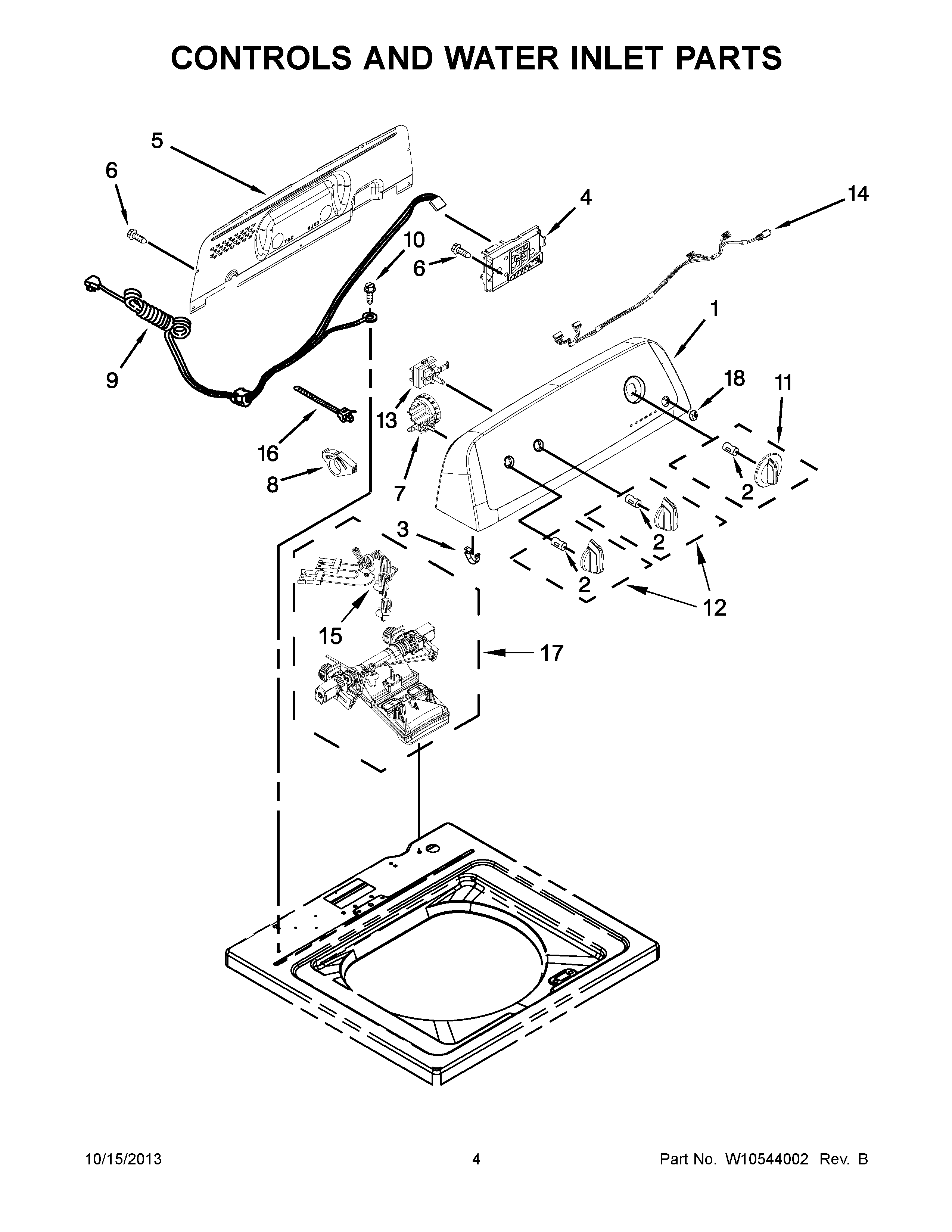

RTW4640YQ1 03 – CONTROLS AND WATER INLET PARTS

RTW4640YQ1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

RTW4640YQ1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1WPW10420404 Whirlpool Console
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4W10484681-includeCORE Whirlpool W10484681 Washer Electronic Control Board + Core
5W10409320 Whirlpool Rear Panel
6WP489069 Whirlpool Compactor Screw
7WPW10450959 Whirlpool Washer Water Level Switch
8WPW10663966 Whirlpool Washer Water Level Switch
9WPW10525192 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13WPW10414397 Whirlpool Cycle Switch
14W10475254 Whirlpool Wire Harness
15W10876654 Whirlpool Wire Harness
16WPW10339879 Whirlpool Wire Tie
17WPW10683603 Whirlpool Dishwasher Water Inlet Valve
18WPW10251309 Whirlpool Push Button
