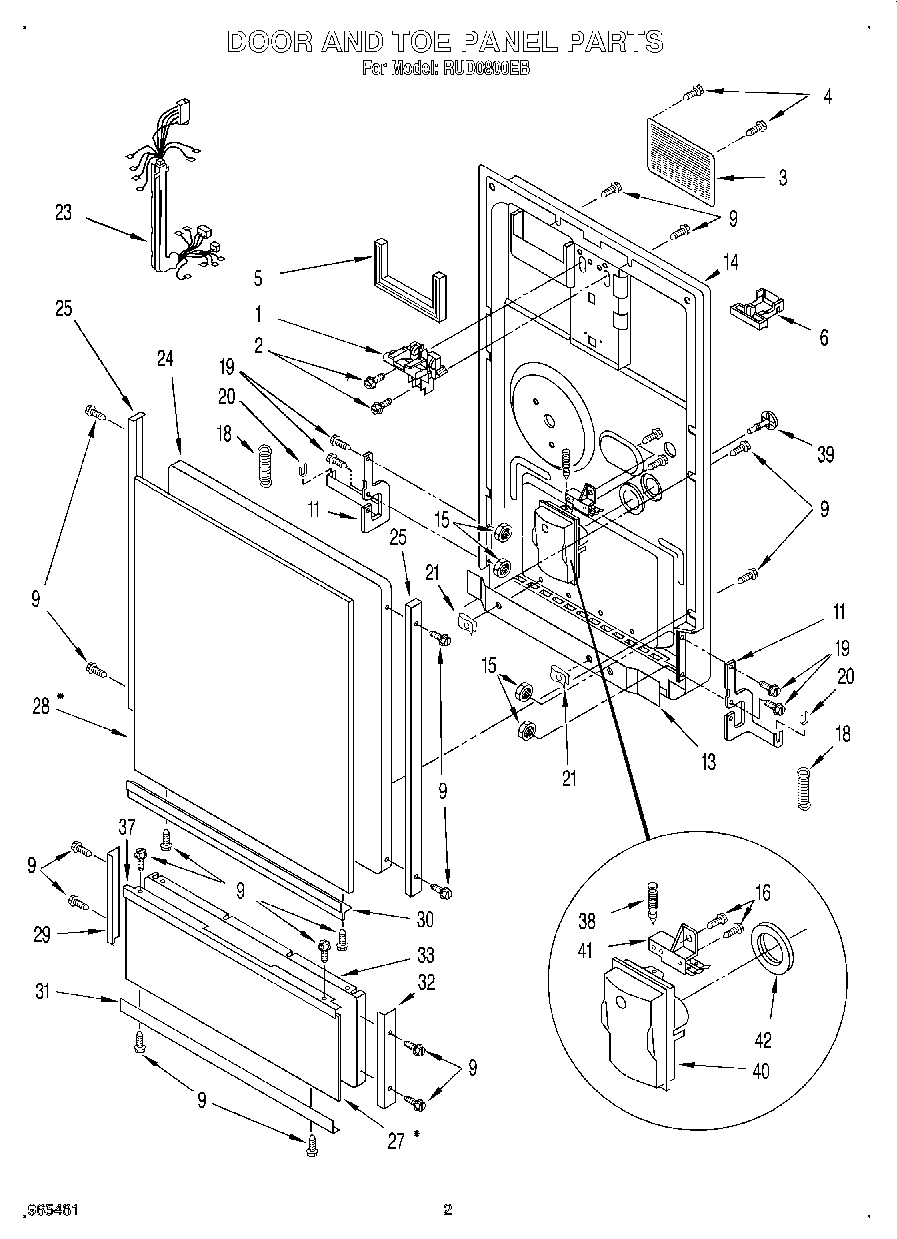

RUD0800EB 02 – DOOR AND TOE PANEL

RUD0800EB 02 – DOOR AND TOE PANEL

Written by

in

RUD0800EB 02 – DOOR AND TOE PANEL

Products

PositionProduct
1Shield, Timer
2Screw
3Cover, Vent
4Screw, Vent Cover
5Gasket, Vent Cover
6Handle, Door
9Screw, No.8 x 3/8
11Arm Assembly (R.H. & L.H.)
13Seal, Baffle
14Door, Inner
15Nut, Arm Assembly
16WP488729 Whirlpool Refrigerator Door Screw
18Spring, Door
19Screw, Arm Assembly
20Spring Pad (2)
21Speednut, Baffle
23Harness, Wiring
24Panel, Door
25Trim, Side Door
27Insert, Access Panel (White & Clear)
28Insert, Door Panel (White & Clear)
29Trim, Access Panel – L.H.
30Trim, Door Bottom
31Trim, Access Panel Bottom
32Trim, Access Panel – R.H.
33Panel, Access
37Trim, Access Panel Top
38Plunger, Dispenser
39Plug, Fill
40Body Assembly
41Bi-Metal Assembly
42Grommet, Dispenser
42Panel, Door & Access
