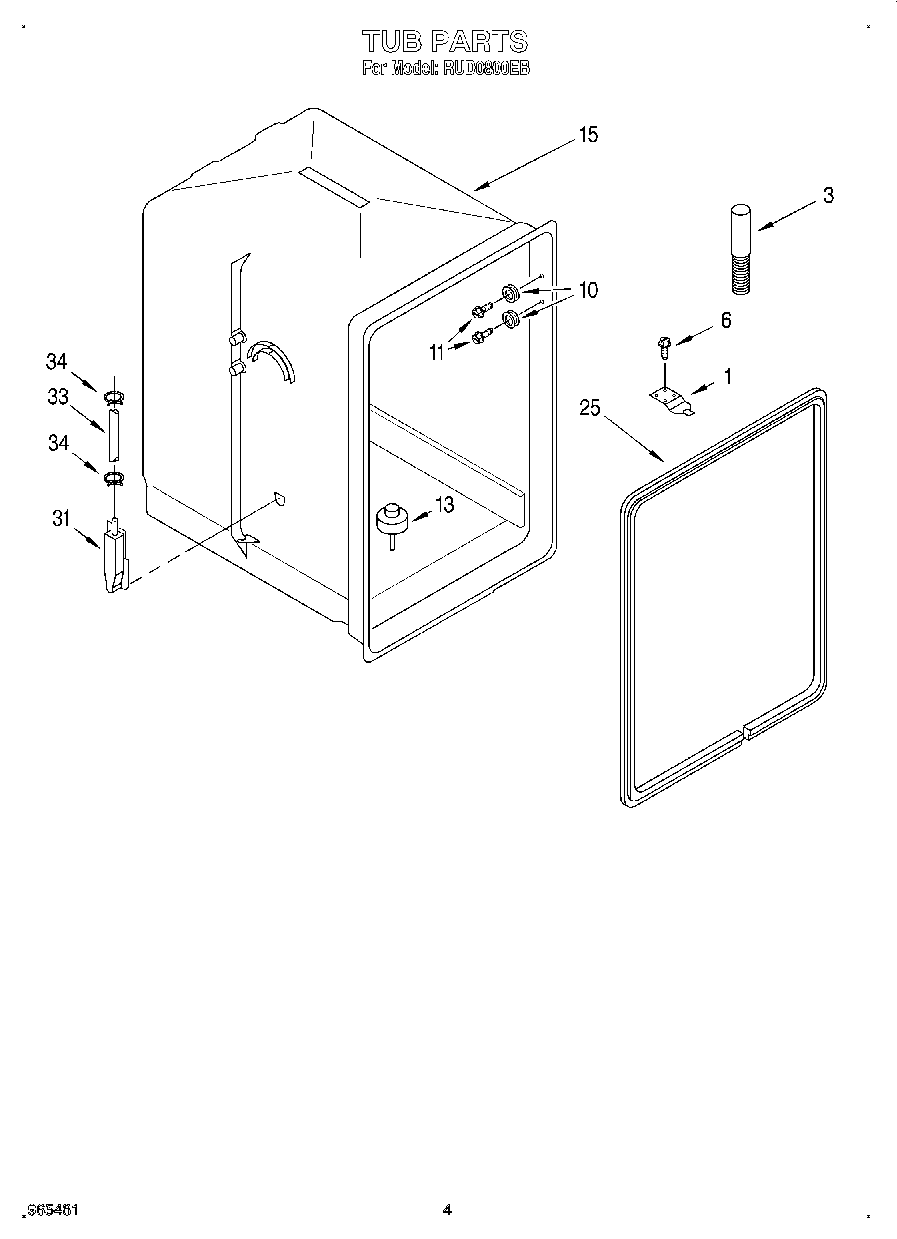

RUD0800EB 03 – TUB

Written by

RUD0800EB 03 – TUB

Products

Position	Product
1	Strike, Door
3	Hose, Drain
6	Screw, 10-10 x 9/16
8	Washer (See Illus. No. 11)
10	Roller, Tub
11	Screw, Roller
13	Float
15	Tub & Gasket Assembly (Includes Item 8)
25	Gasket, Tub
31	Inlet, Water
33	Tubing, Inlet (Includes Item 10)
34	Clamp (2)
