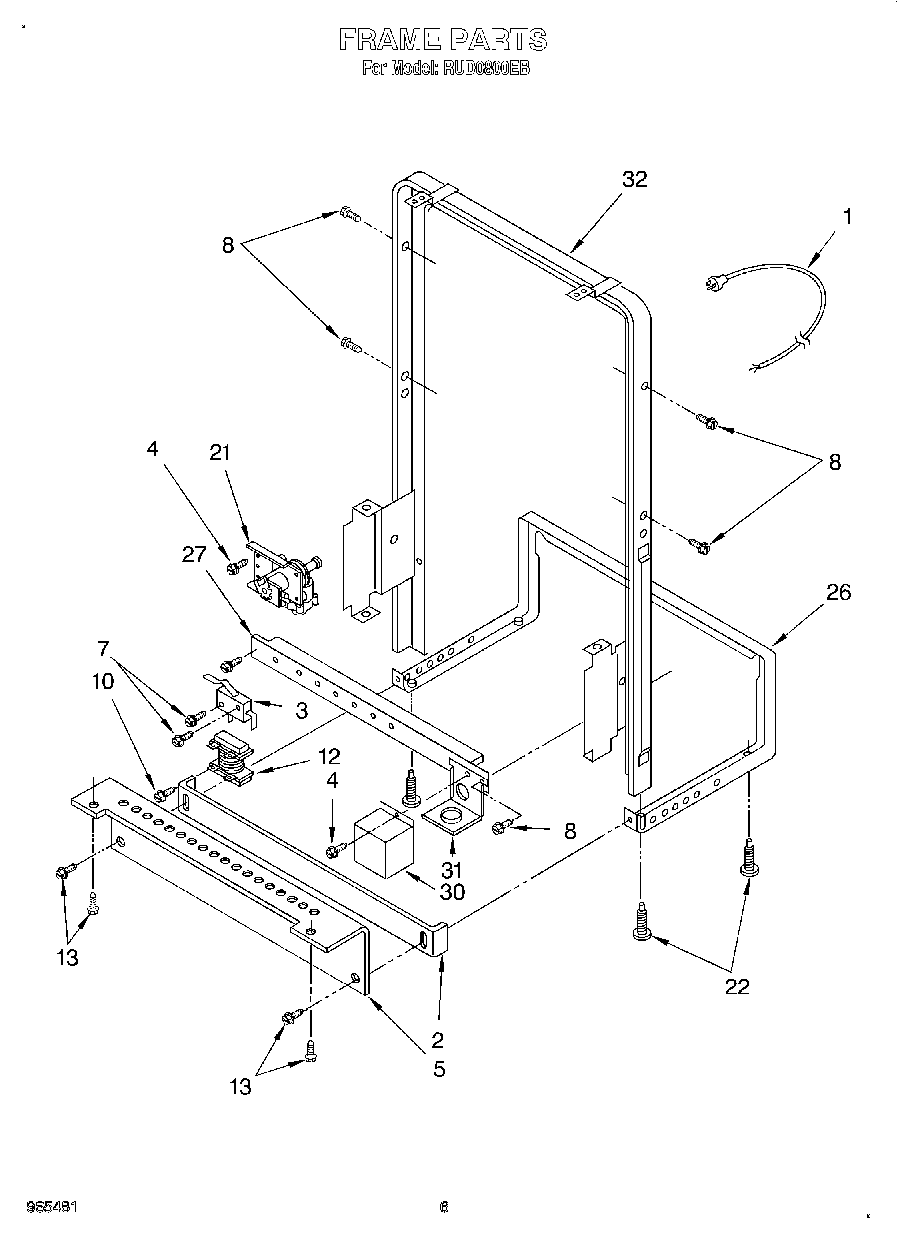

RUD0800EB 05 – FRAME, LIT/OPTIONAL

RUD0800EB 05 – FRAME, LIT/OPTIONAL

Written by

in

RUD0800EB 05 – FRAME, LIT/OPTIONAL

Products

PositionProduct
350956 Whirlpool Spray Assembly
Guide, Use & Care
Guide, Energy
Instructions, Installation
Kit, Epoxy Patch (White)
Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
W10840471 Whirlpool Dishwasher Touch Up
676458 Whirlpool Dishwasher Tine Tip
675679 Whirlpool Dishwasher White Tip Tines
WP676455 Whirlpool Dishwasher Touch-Up
285006 Whirlpool Spray
WP676453 Whirlpool Dishwasher Touch-Up
1Power Cord (optional)
2Toeplate, Adjustable
3Switch, Float
4Screw
5Toeplate
6Bracket, Float Switch
7Screw, 10 x 5/8
8Screw, 10-10 x 9/16
10Screw, No.8-32 x 1 1/4
12Relay, Motor
13Screw, No.8 x 3/8
21WPR9800089 Whirlpool Inlet Valve
22Levelers (4)
26Frame, Rear
27Brace, Front
30Cover, Junction Box
31Bracket, Junction Box
32Frame Assy., Front
