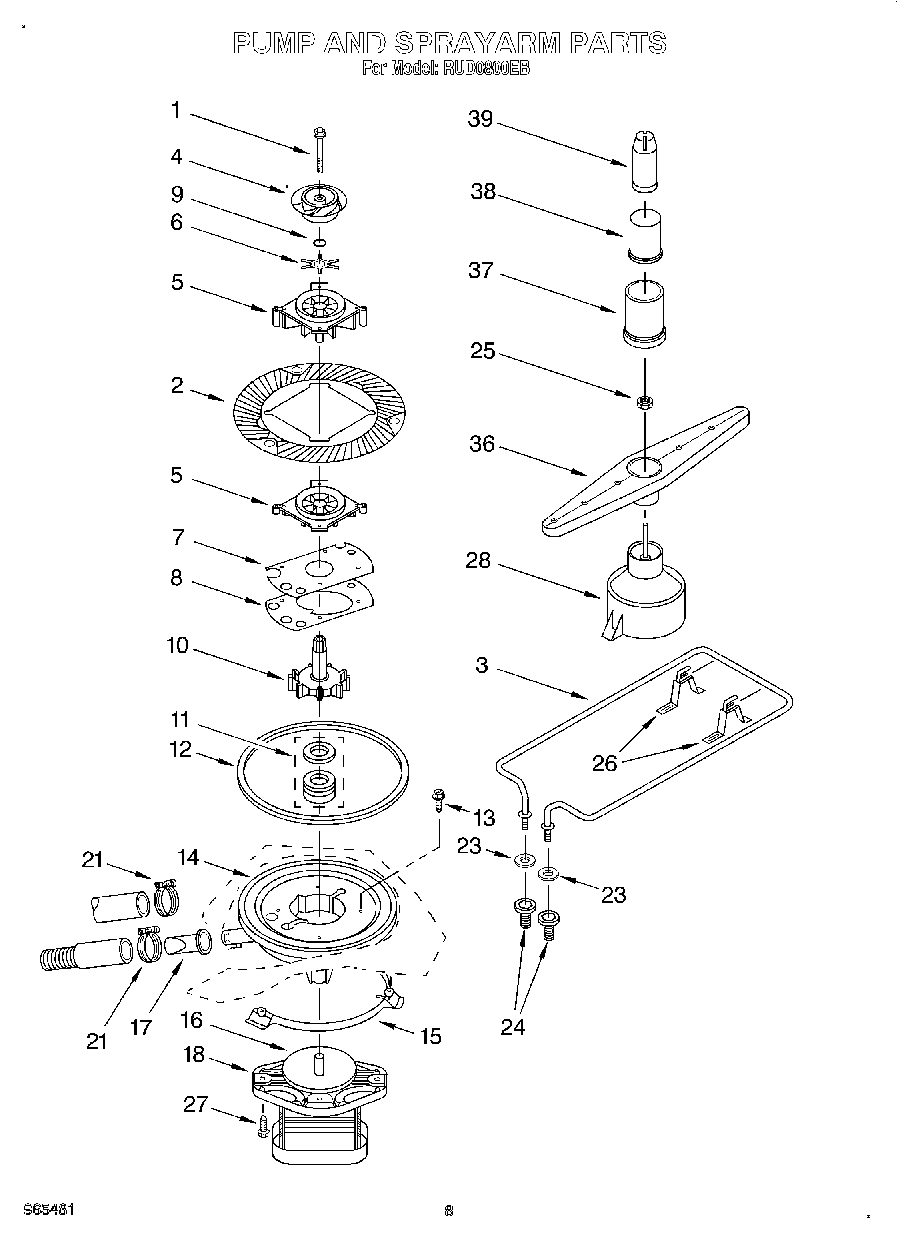

RUD0800EB 06 – PUMP AND SPRAYARMadmin2025-04-26T11:27:47+00:00RUD0800EB 06 – PUMP AND SPRAYARM
Products
| Position | Product |
|---|
| 1 | Screw, No.10-32 x 2 1/4 |
| 2 | Plate, Strainer |
| 3 | Heater |
| 4 | Upper Impeller |
| 5 | Spacer Plate |
| 6 | Macerator |
| 7 | Pump Plate |
| 8 | Pump Gasket |
| 9 | O-Ring |
| 10 | Pump Seal Kit |
| 11 | Water Seal |
| 12 | Gasket, Pump |
| 13 | Screw, Pump Housing |
| 14 | Housing, Pump |
| 15 | Clamp, Pump |
| 16 | Watershield Assembly |
| 17 | Valve, Check |
| 18 | Motor Assembly |
| 19 | Seal Installation Tool |
| 21 | Clamp, Hose |
| 23 | Washer, Insulating |
| 24 | Nut, Heater |
| 25 | Nut, Spray Arm |
| 26 | Bracket, Heater |
| 27 | Screw, Motor Mounting |
| 28 | Diffuser |
| 36 | Sprayarm, Lower |
| 37 | Base, Tower |
| 38 | Middle, Tower |
| 39 | Tip, Tower |
