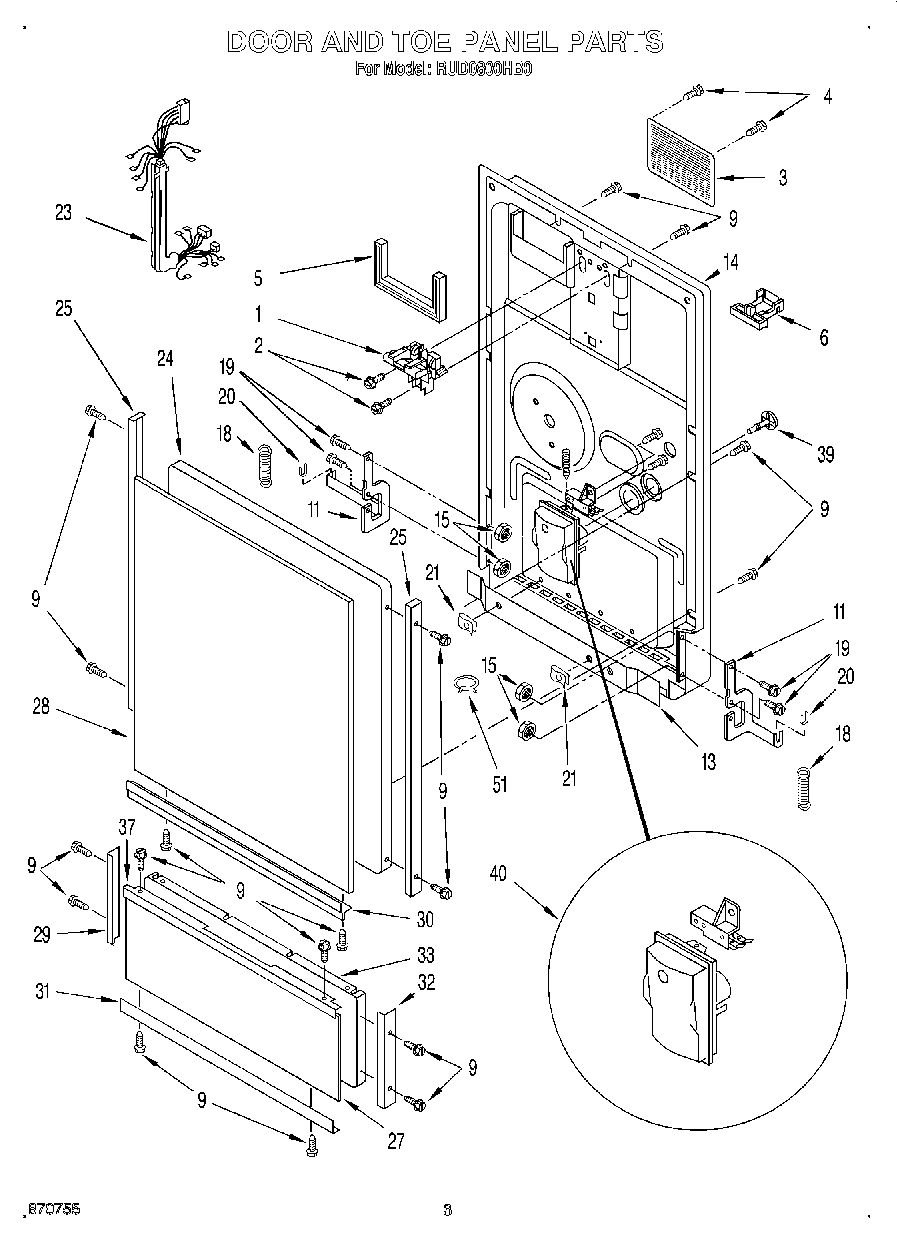

RUD0800HB0 03 – DOOR AND TOE PANEL

RUD0800HB0 03 – DOOR AND TOE PANEL

Written by

in

RUD0800HB0 03 – DOOR AND TOE PANEL

Products

PositionProduct
1Latch Assembly
2Screw
3Cover, Vent
4Screw, Vent Cover
5Gasket, Vent Cover
6Handle, Door
9Screw, 8 x 3/8
11Arm Assembly (R.H. & L.H.)
13Seal, Baffle
14Door, Inner
15Nut, Arm Assembly
18Spring, Door
19Screw, Arm Assembly
20Spring Pad (2)
21Speednut, Baffle
23Harness, Wiring
24Panel, Door
25Trim, Side Door
27Insert, Access Panel (White & Clear)
28Insert, Door Panel (White & Clear)
29Trim, Access Panel – L.H.
30Trim, Door Bottom
31Trim, Access Panel Bottom
32Trim, Access Panel – R.H.
33Panel, Access
37Trim, Access Panel Top
39Plug, Fill
40WPW10247183 Whirlpool Dishwasher Dispenser
51Panel, Door & Access
51Clamp, wire
