RUD0800HB0 04 – FRAME

RUD0800HB0 04 – FRAME

Written by

in

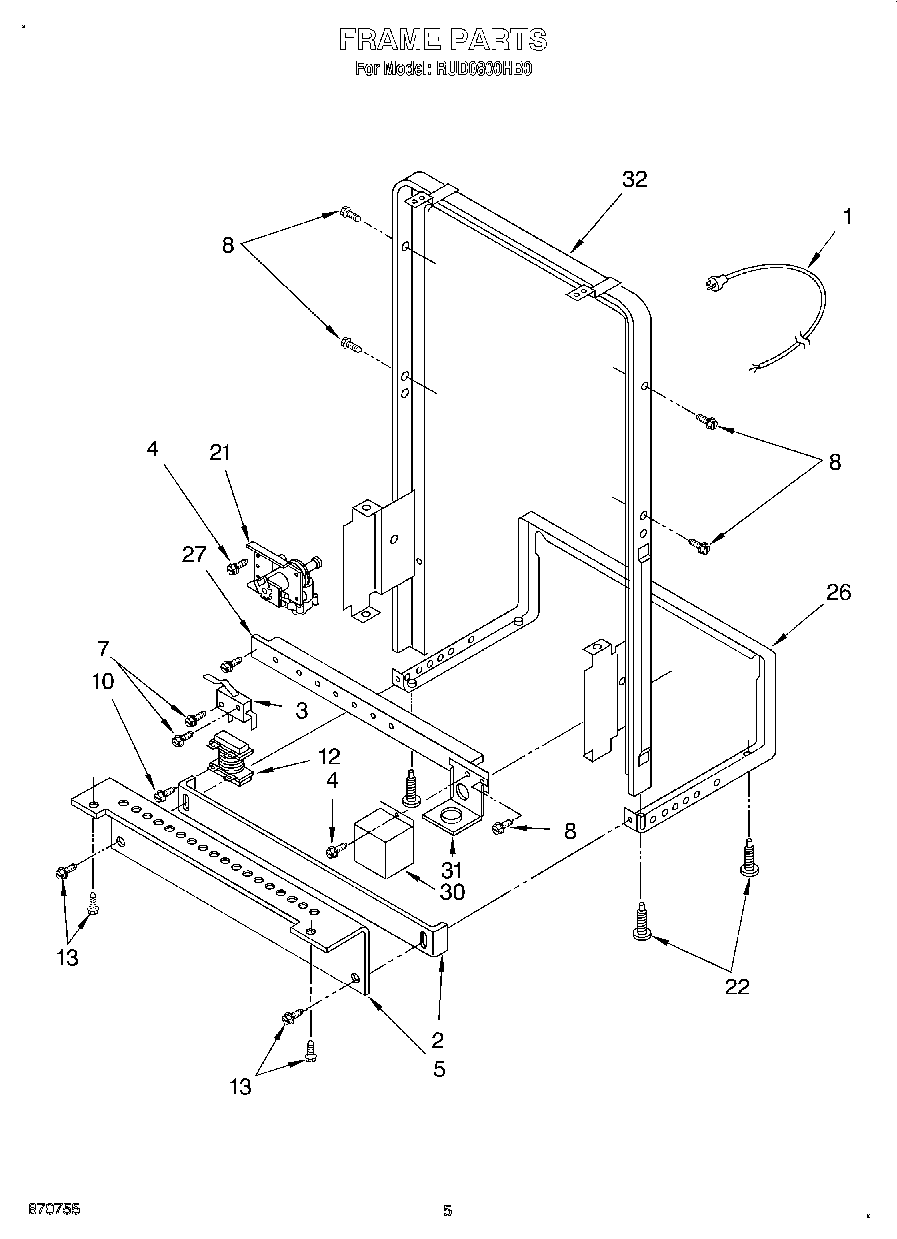

RUD0800HB0 04 – FRAME

Products

Position	Product
1	Power Cord (optional)
2	Toeplate, Adjustable
3	Switch, Float
4	Screw
5	Toeplate
7	Screw, 10 x 5/8
8	Screw
10	Screw, No.8-32 x 1 1/4
12	Relay, Motor
13	Screw, No.8 x 3/8
21	WPR9800089 Whirlpool Inlet Valve
22	Levelers (4)
26	Frame, Rear
27	Brace, Front
30	Cover, Junction Box
31	Bracket, Junction Box
32	Frame Assy., Front
