RUD0800HB0 05 – PUMP AND SPRAYARM
Written by
in

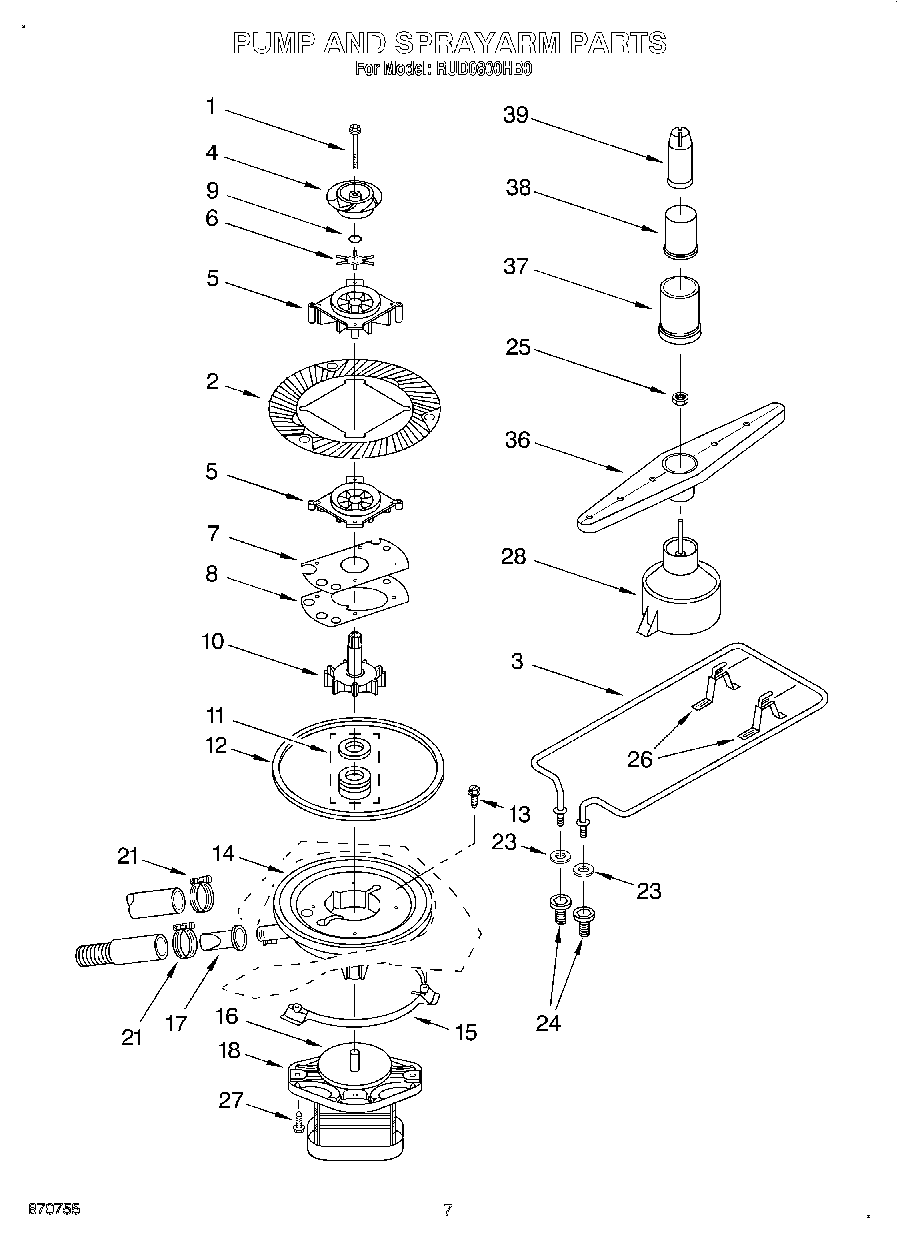

RUD0800HB0 05 – PUMP AND SPRAYARM
Products
Position
Product
1
Screw, No.10-32 x 2 1/4
2
Plate, Strainer
3
Heater
4
Upper Impeller
5
Spacer Plate
6
Macerator
7
Pump Plate
8
Pump Gasket
9
O-Ring
10
Pump Seal Kit
11
Water Seal
12
Gasket, Pump
13
Screw, Pump Housing
14
Housing, Pump
15
Clamp, Pump
16
Watershield Assembly
17
Valve, Check
18
Motor Assembly
21
Clamp, Hose
23
Washer, Insulating
24
Nut, Heater
25
Nut, Spray Arm
26
Bracket, Heater
27
Screw, Motor Mounting
28
Diffuser
36
Sprayarm, Lower
37
Base, Tower
38
Middle, Tower
39
Tip, Tower
←
