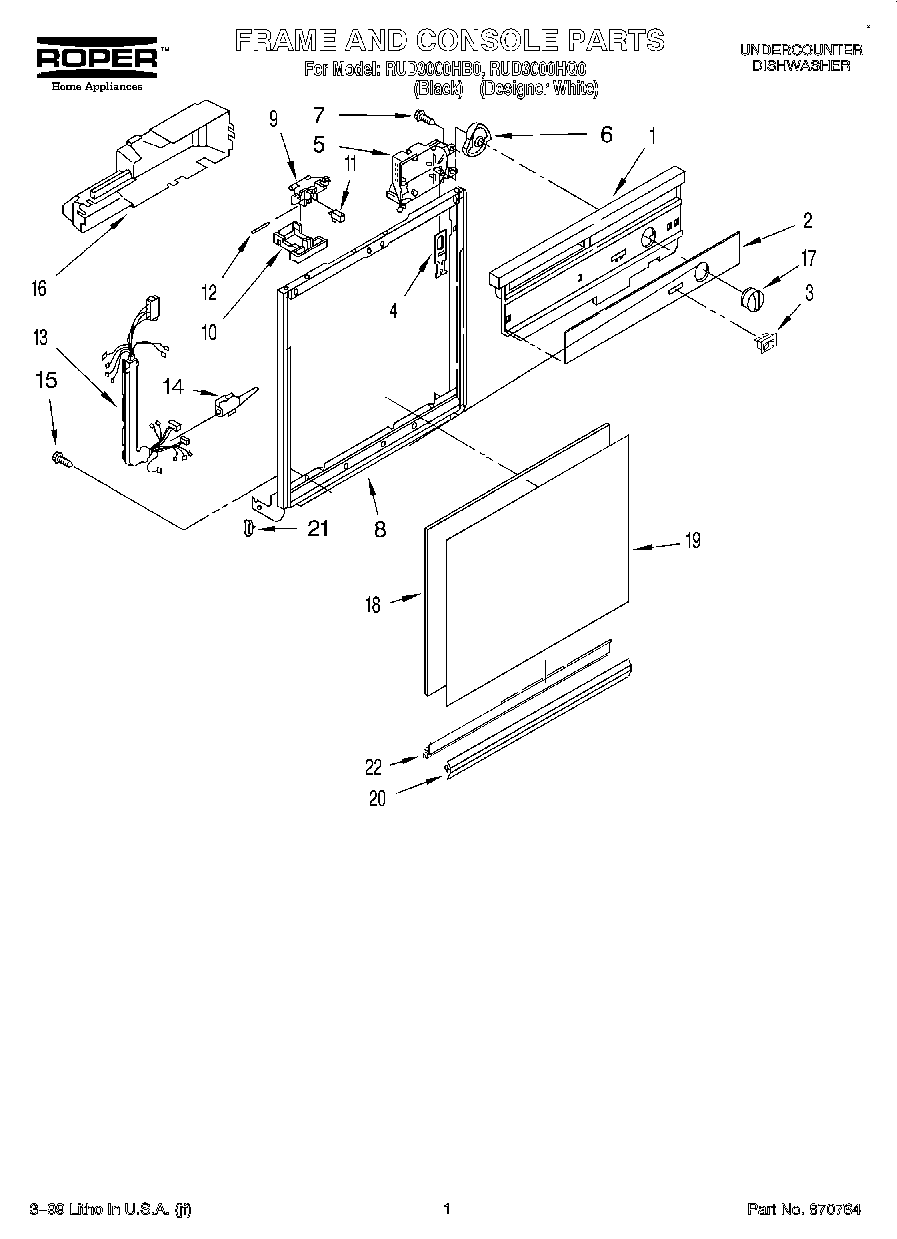

RUD3000HB0 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Also Order Key 2) (Black)
1	Console (Also Order Key 2) (White)
2	Insert, Console (White)
2	Insert, Console (Black)
3	8051730 Whirlpool Dishwasher Switch
3	8051729 Whirlpool Dishwasher Switch
4	Follower, Cam
5	Timer
6	WP8271510 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	3374711 Whirlpool Dishwasher Frame
8	Door Frame (Includes Item 24) (White)
9	WP3380854 Whirlpool Door Latch Bolt
10	WP3368954 Whirlpool Dishwasher Lever
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	Knob, Timer (White)
17	Knob, Timer
18	Spacer, Corrugated
19	+Front Panel (White)
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel (White)
20	Retainer, Panel
21	WP3373234 Whirlpool Dishwasher Bearing
22	WP3374716 Whirlpool Dishwasher Channel
