RUD4500DB0 03 – TUB ASSEMBLY, LIT/OPTIONAL

RUD4500DB0 03 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

RUD4500DB0 03 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	350956 Whirlpool Spray Assembly
	72032 Whirlpool Touch Up Paint Black
	Guide, Use & Care
	Instructions, Installation
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WP676453 Whirlpool Dishwasher Touch-Up
	WP676455 Whirlpool Dishwasher Touch-Up
	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
	DOOR SPRING KIT: (HEAVY DUTY)
	Side Panel Kit: (Almond)
	Side Panel Kit (White)
	676458 Whirlpool Dishwasher Tine Tip
	285006 Whirlpool Spray
	Vinyl Touch Up (Blue)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	Energy Guide
	WPL LIT3373616
	Platinum
	Toast
	Gold
	350942 Whirlpool Spray Paint
	Avocado
	Enamel, Black (1 Qt. Uncut)
	675679 Whirlpool Dishwasher White Tip Tines

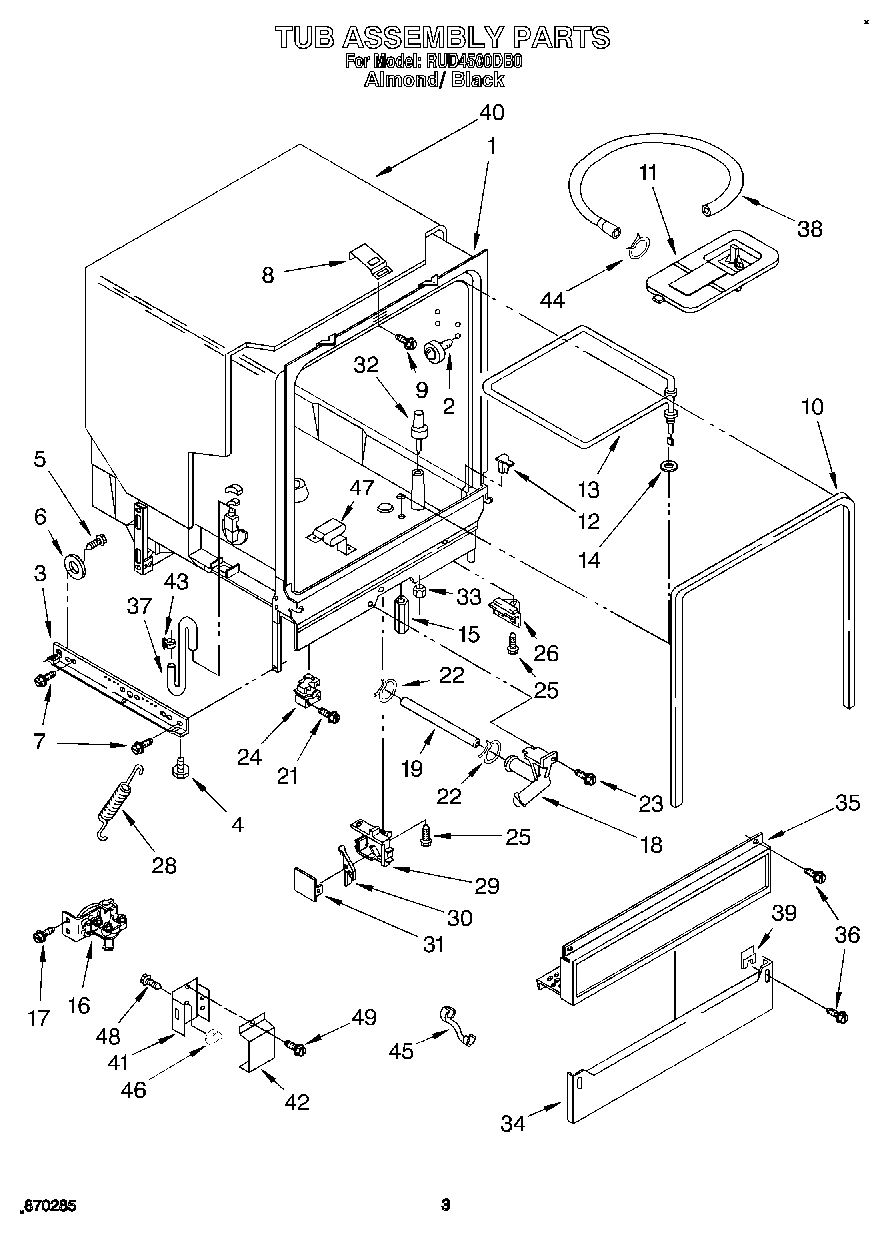

1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
21	WP489128 Whirlpool Refrigerator Screw
22	CLAMP, HOSE
23	W11693756 Whirlpool Screw Assembly
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
28	WP3373228 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	Access Panel & Clip Assembly (Includes Item 39)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP3374077 Whirlpool Dishwasher Drain Hose
39	Clip, Grounding
40	W11086533 Whirlpool Dishwasher Shield
41	Box, Terminal
42	300068 Whirlpool Dishwasher Cover Assembly
43	WP596669 Whirlpool Hose Clamp
44	WP356138 Whirlpool Hose Clamp
45	Relief, Strain
46	WP488130 Whirlpool Air Conditioner Nut
47	Support, Heater
48	WP250830 Whirlpool Refrigerator Screw
49	Screw
