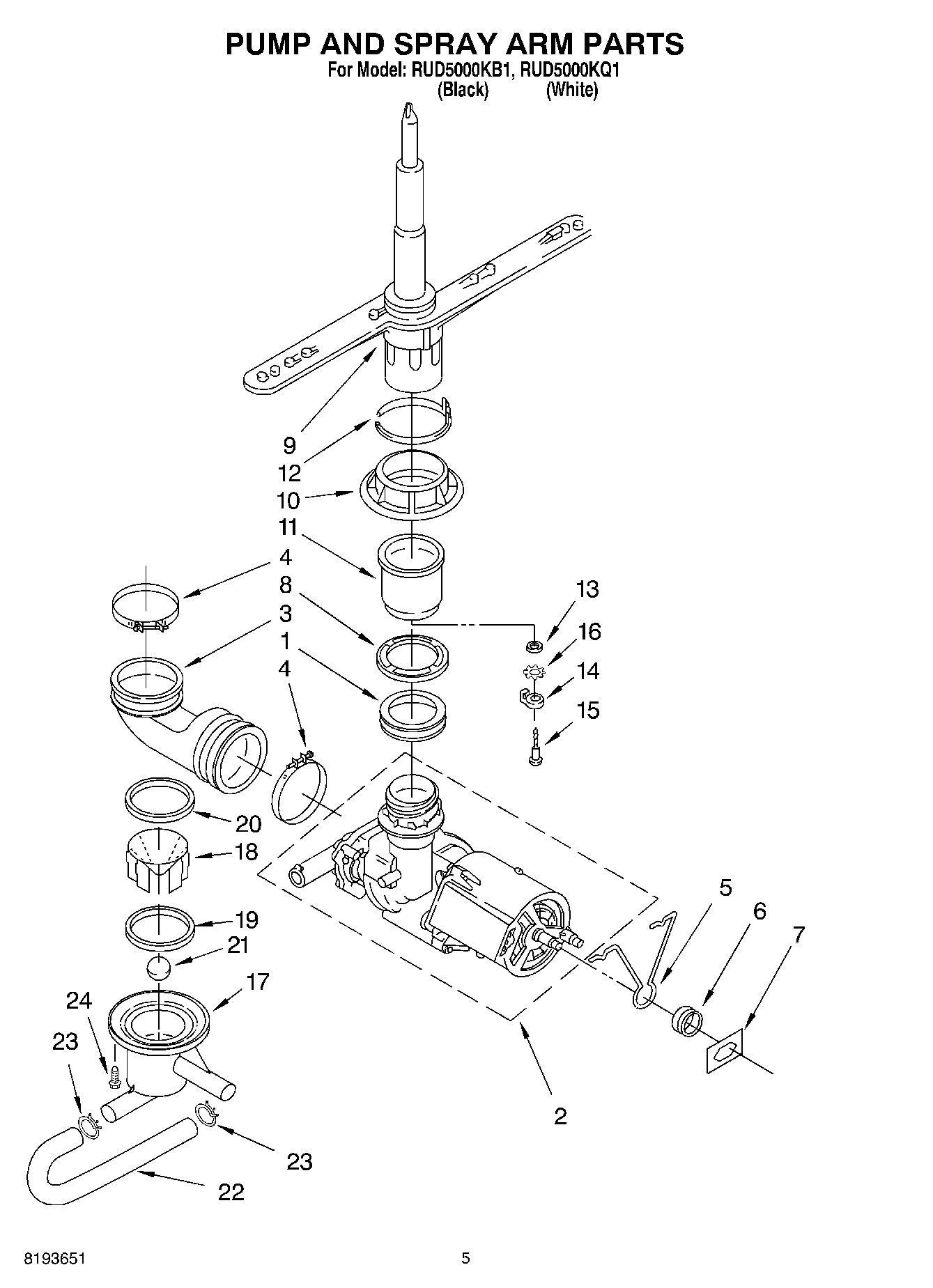

RUD5000KB1 04 – PUMP AND SPRAY ARM PARTS

RUD5000KB1 04 – PUMP AND SPRAY ARM PARTS

Written by

in

RUD5000KB1 04 – PUMP AND SPRAY ARM PARTS

Products

PositionProduct
1Grommet, Pump Seal
2PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE
3W11189178 Whirlpool Dishwasher Hose
4Clamp (2)
5Support, Motor
6Grommet, Motor Support
7Push-Nut, Motor Support
8Washer, Grommet
9Spray Arm, Assembly Lower
10Nut, Pump Outlet
12WP3369045 Whirlpool Dishwasher Seal
13Washer
143371746 Whirlpool Dishwasher Bearing
15WP3371745 Whirlpool Dishwasher Support
16Washer, Curved
17Collector w/Check Valve
18WP8520841 Whirlpool Dishwasher Hose Adapter
19WP8520843 Whirlpool Dishwasher Seal
20WP3369177 Whirlpool Dishwasher Seal
21WP3369178 Whirlpool Dishwasher Check Ball
228520842 Whirlpool Dishwasher Hose
23CLAMP, HOSE
24Screw 10-16, Hi-Lo (4)
