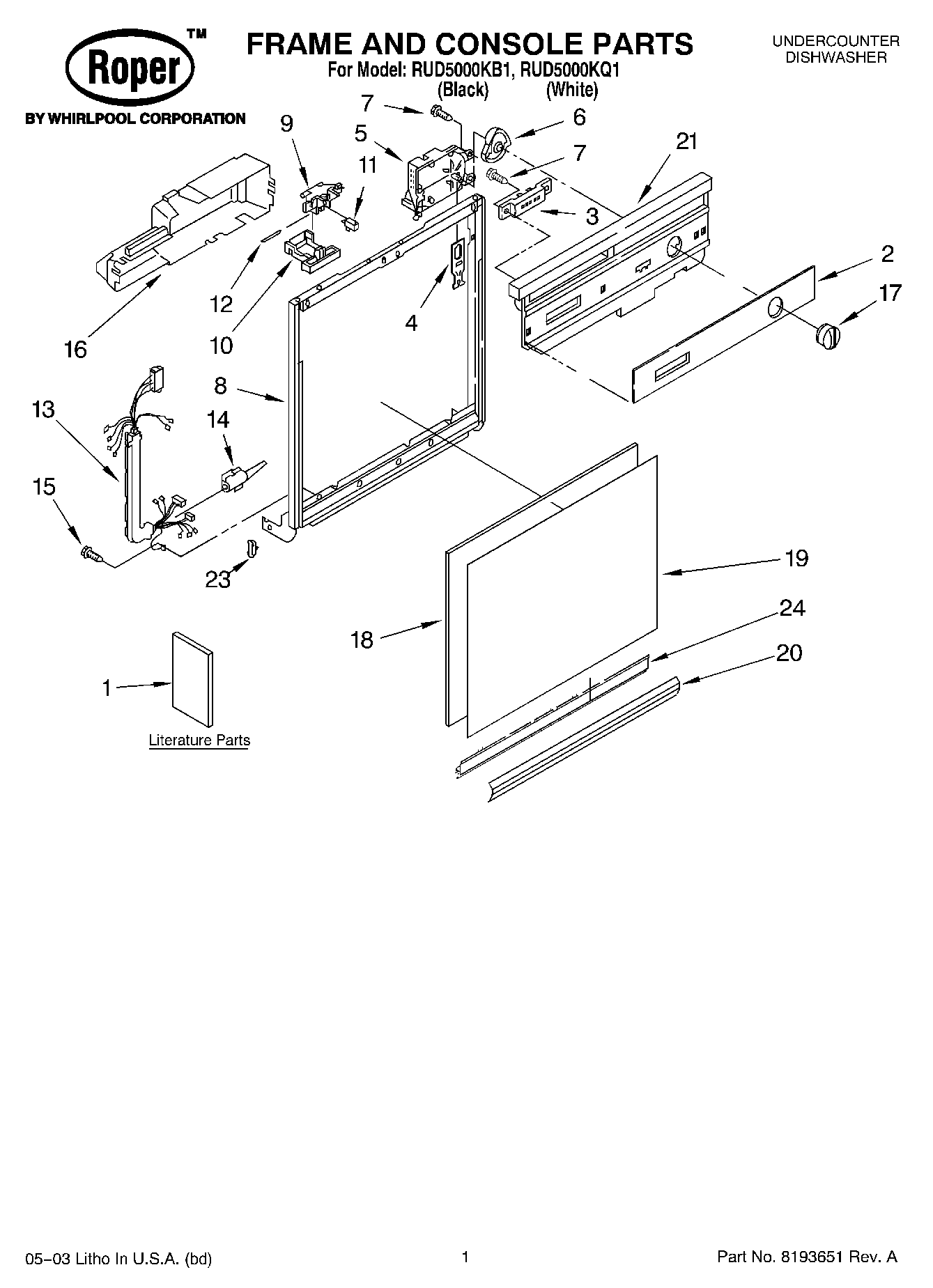

RUD5000KQ1 01 – FRAME AND CONSOLE PARTS

RUD5000KQ1 01 – FRAME AND CONSOLE PARTS

Written by

in

RUD5000KQ1 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Diagram, Wiring)
1Literature Parts (Guide, Energy)
1Instructions, Installation (Supplement) (Locating Your Water Supply)
2Insert, Console (White)
2Insert, Console (Black)
3Switch, 5-Pushbutton (Black)
3Switch, 5-Pushbutton (White)
4Follower, Cam
5Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8Door Frame (Includes Item 24) (White)
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10WP3368954 Whirlpool Dishwasher Lever
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover Timer
17Knob, Timer
17Knob, Timer (White)
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
20Retainer, Panel (White)
21Console (Includes Item 2) (Black)
21Console (Includes Item 2) (White)
23WP3373234 Whirlpool Dishwasher Bearing
24WP3374716 Whirlpool Dishwasher Channel
