RUD5750DB0 03 – TUB ASSEMBLY, LIT/OPTIONAL
Written by
in

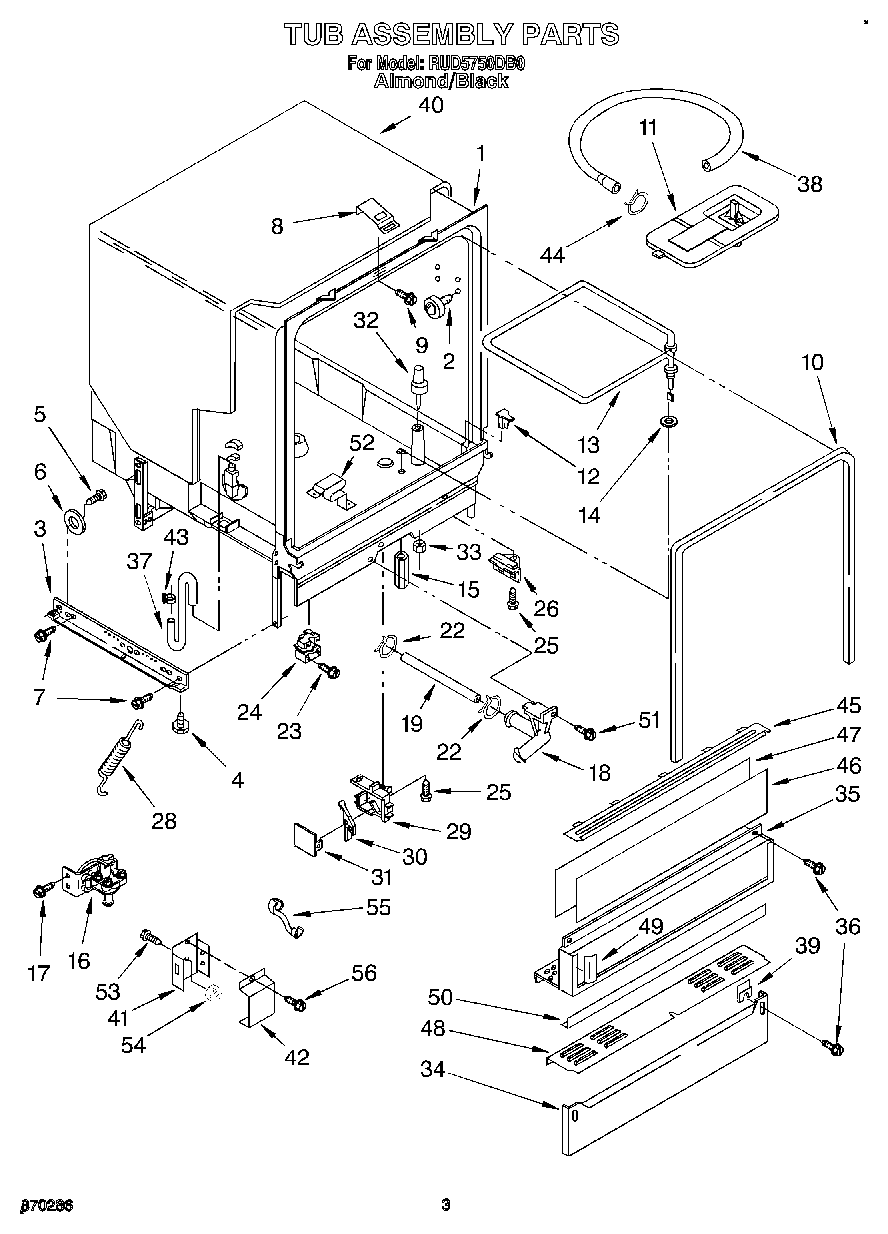

RUD5750DB0 03 – TUB ASSEMBLY, LIT/OPTIONAL
Products
Position
Product
350956 Whirlpool Spray Assembly
Guide, Use & Care
WP676453 Whirlpool Dishwasher Touch-Up
WP676455 Whirlpool Dishwasher Touch-Up
Instructions, Installation
Side Panel Kit: (Almond)
Instructions, Installation (Supplement) (Locating Your Water Supply)
Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
DOOR SPRING KIT: (HEAVY DUTY)
Side Panel Kit (White)
W10840471 Whirlpool Dishwasher Touch Up
676458 Whirlpool Dishwasher Tine Tip
675679 Whirlpool Dishwasher White Tip Tines
Avocado
72032 Whirlpool Touch Up Paint Black
350942 Whirlpool Spray Paint
Platinum
Wiring Diagram
Energy Guide
Almond (Uncut)
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
Toast
Enamel, Black (1 Qt. Uncut)
Gold
285006 Whirlpool Spray
1
Tub Assembly
2
Tub, Wheel Assembly (8)
3
Runner (2)
4
8193716 Whirlpool Leveling Leg
5
Screw (2)
6
WP302819 Whirlpool Dishwasher Wheel
7
SCREW
8
Plate, Latch
9
WP3374720 Whirlpool Dishwasher Screw
10
WPW10509257 Whirlpool Door Gasket
11
WP3369322 Whirlpool Cover Assembly
12
DEFLECTOR-DISHWASHER
13
WPW10082894 Whirlpool Dishwasher Heater
14
WP717273 Whirlpool Dishwasher Rubber Washer
15
Nut (2) (Heater Terminal)
16
Water Valve
17
WP489069 Whirlpool Compactor Screw
18
Check, Valve Assembly
19
Hose, Coupler
22
CLAMP, HOSE
23
WP489128 Whirlpool Refrigerator Screw
24
W10102260 Whirlpool Dishwasher Motor Relay
25
WP304231 Whirlpool Dishwasher Screw
26
WP3368928 Whirlpool Dishwasher Fuse
28
WP3373228 Whirlpool Dishwasher Spring
29
Housing, Float Switch
30
Switch, Float
31
Cover, Switch Housing
32
WP8519552 Whirlpool Dishwasher Float
33
Nut
34
WP3379920 Whirlpool Dishwasher Toe Panel
35
WP3369193 Whirlpool Dishwasher Panel
36
WP302868 Whirlpool Screw
37
Hose, Inlet
38
WP3374077 Whirlpool Dishwasher Drain Hose
39
Clip, Grounding
40
W11086533 Whirlpool Dishwasher Shield
41
Box, Terminal
42
300068 Whirlpool Dishwasher Cover Assembly
43
WP596669 Whirlpool Hose Clamp
44
WP356138 Whirlpool Hose Clamp
45
WP3372412 Whirlpool Dishwasher Retainer
46
Panel, Front Access (Almond/Black)
47
Spacer, Corrugated
48
Extension & Clip Assembly
49
Trim, Side (2)
50
Trim, Bottom
51
W11693756 Whirlpool Screw Assembly
52
Support, Heater
53
WP250830 Whirlpool Refrigerator Screw
54
WP488130 Whirlpool Air Conditioner Nut
55
Relief, Strain
56
Screw
←
