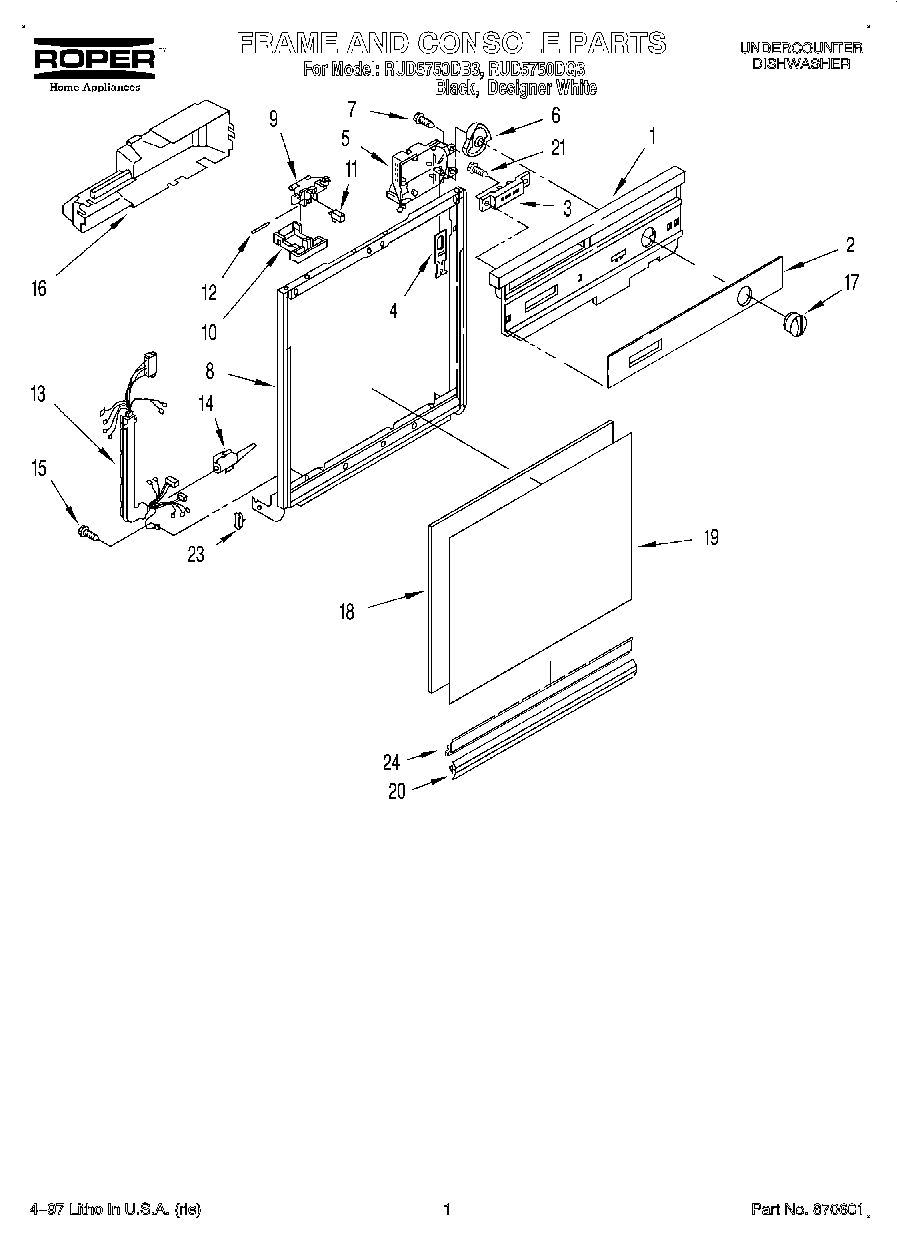

RUD5750DB3 01 – FRAME AND CONSOLEadmin2025-04-26T12:53:08+00:00RUD5750DB3 01 – FRAME AND CONSOLE
Products
| Position | Product |
|---|
| 1 | Console (Incl. Illus. 2) (Black) |
| 1 | Console (Incl. Illus. 2) (White) |
| 2 | Insert, Console (White) |
| 2 | Insert, Console (Black) |
| 3 | Switch, 7-Pushbutton (White) |
| 3 | Switch, 7-Pushbutton (Black) |
| 4 | Follower, Cam |
| 5 | Timer |
| 6 | WP8271510 Whirlpool Dishwasher Cam |
| 8 | 3374711 Whirlpool Dishwasher Frame |
| 8 | Door Frame (Includes Item 24) (White) |
| 9 | WP3380854 Whirlpool Door Latch Bolt |
| 10 | WP3368954 Whirlpool Dishwasher Lever |
| 11 | Shield, Switch |
| 12 | Pin, Switch (2) |
| 13 | Harness and Protector |
| 14 | 3376405 Whirlpool Dishwasher Elbow |
| 15 | WP488234 Whirlpool Air Conditioner Screw |
| 16 | Cover Timer |
| 17 | Knob, Timer (White) |
| 17 | Knob, Timer |
| 18 | Spacer, Corrugated |
| 19 | WP3369769 Whirlpool Dishwasher Panel |
| 20 | Retainer, Panel (White) |
| 20 | Retainer, Panel |
| 21 | WP304231 Whirlpool Dishwasher Screw |
| 23 | WP3373234 Whirlpool Dishwasher Bearing |
| 24 | WP3374716 Whirlpool Dishwasher Channel |
