RUD5750DQ0 03 – TUB ASSEMBLY, LIT/OPTIONAL

RUD5750DQ0 03 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

RUD5750DQ0 03 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	WP676455 Whirlpool Dishwasher Touch-Up
	Side Panel Kit: (Almond)
	Toast
	675679 Whirlpool Dishwasher White Tip Tines
	676458 Whirlpool Dishwasher Tine Tip
	W10840471 Whirlpool Dishwasher Touch Up
	Side Panel Kit (White)
	DOOR SPRING KIT: (HEAVY DUTY)
	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Instructions, Installation
	Energy Guide
	Avocado
	Gold
	Platinum
	Wiring Diagram
	WP676453 Whirlpool Dishwasher Touch-Up
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	72032 Whirlpool Touch Up Paint Black
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	Enamel, Black (1 Qt. Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly

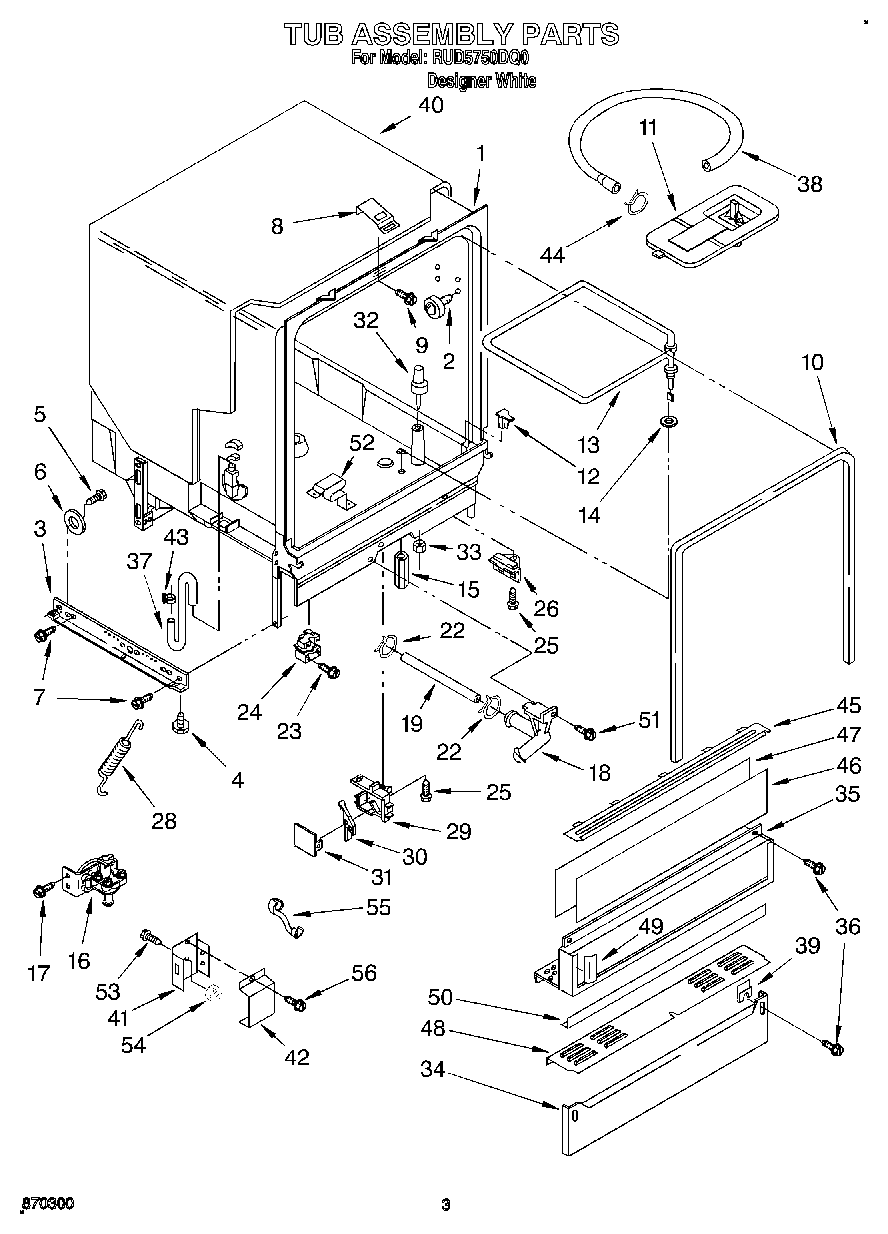

1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
28	WP3373228 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP3374077 Whirlpool Dishwasher Drain Hose
39	Clip, Grounding
40	W11086533 Whirlpool Dishwasher Shield
41	Box, Terminal
42	300068 Whirlpool Dishwasher Cover Assembly
43	WP596669 Whirlpool Hose Clamp
44	WP356138 Whirlpool Hose Clamp
45	Retainer, Access (White)
46	Access Panel (White/Black)
47	Spacer, Corrugated
48	Extension & Clip Assembly
49	Trim, Side (2)
50	Trim, Bottom
51	W11693756 Whirlpool Screw Assembly
52	Support, Heater
53	WP250830 Whirlpool Refrigerator Screw
54	WP488130 Whirlpool Air Conditioner Nut
55	Relief, Strain
56	Screw
