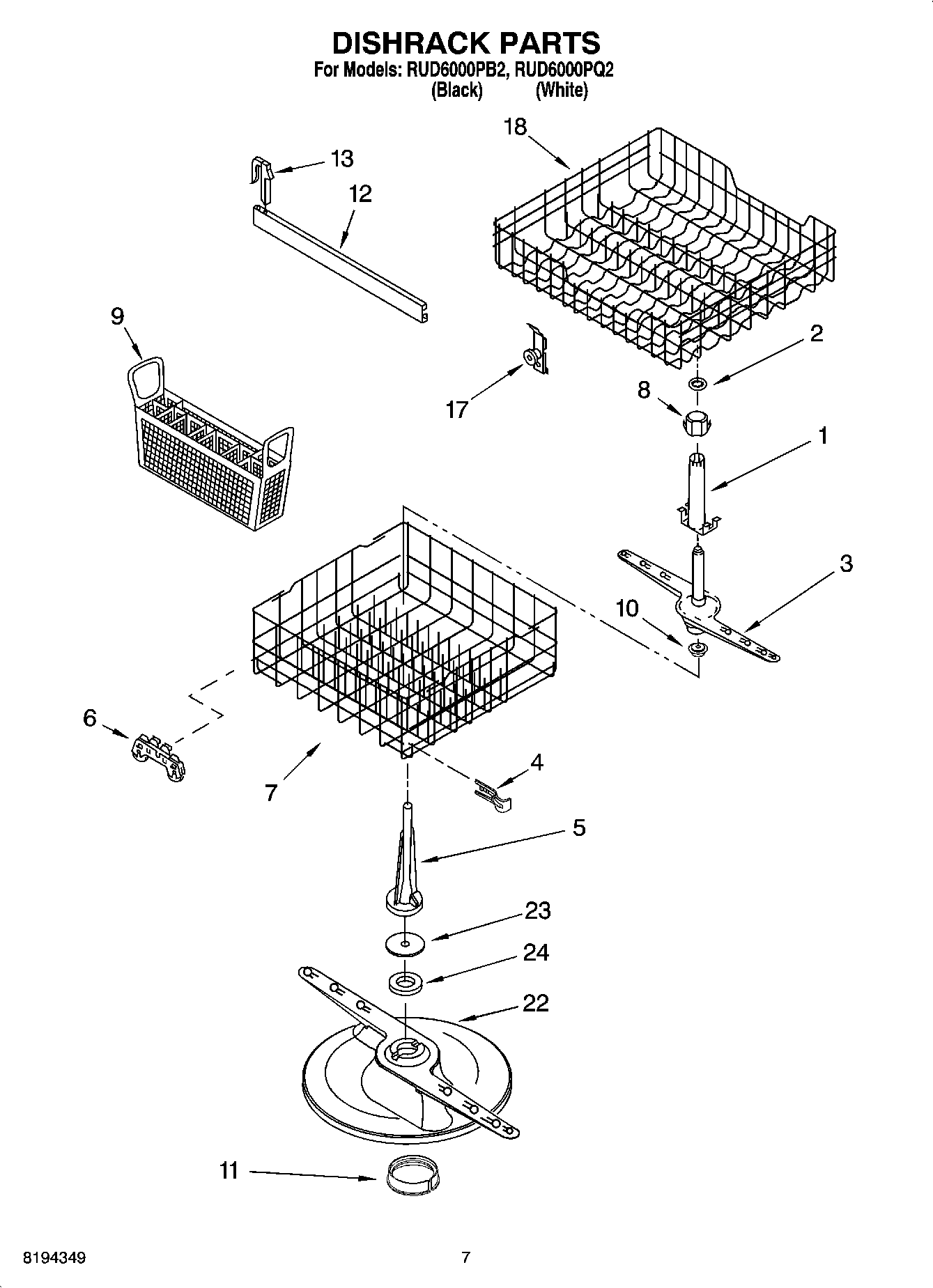

RUD6000PQ2 05 – DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

RUD6000PQ2 05 – DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RUD6000PQ2 05 – DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI128371A
4378968 Whirlpool Dishwasher Mounting Bracket
Side Panel Kits (Black)
Side Panel Kits (Almond)
DOOR SPRING KIT: (HEAVY DUTY)
Custom Trim & Panel Kits (White)
Side Panel Kits (Biscuit)
Custom Trim & Panel Kits (Biscuit)
Custom Trim & Panel Kits (Black)
WPL ARI128372A
WPL ARI128373A
WPL ARI128374A
WPL ARI128375A
WPL ARI128376A
WPL ARI128377A
WPL ARI128369A
WPL ARI128370A
4378867 Whirlpool Dishwasher Panel
4392901 Whirlpool Biscuit Spray Paint
4396277 Whirlpool Barrier Assembly
4317824 Whirlpool Dishwasher 5' 3 Wire Prong Power Cord Kit
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
3385556 Whirlpool Drain Hose
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4396838RC Whirlpool Rack Repair Kit White
4396840RC Whirlpool Gray Rack Repair Kit
WP676455 Whirlpool Dishwasher Touch-Up
4396853 Whirlpool Dishwasher Touch-Up
350930 Whirlpool White Spray Paint
WP676453 Whirlpool Dishwasher Touch-Up
1Support, Arm (Also Order Items 2 & 8)
2Clip
3Spray Arm, Upper (Also Order Item 8)
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
7W10161215 Whirlpool Dishwasher Dishrack
8Support Lock, Spray Arm
9BASKT-WARE
10Cone Assembly
11WP3376846 Whirlpool Seal
12WP3385089 Whirlpool Track
13WP8565925 Whirlpool Slide Rail Stop
17WPW10204141 Whirlpool Dishwasher Adjuster
18W11169039 Whirlpool Dishwasher Dish Rack
22WP8268874 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
