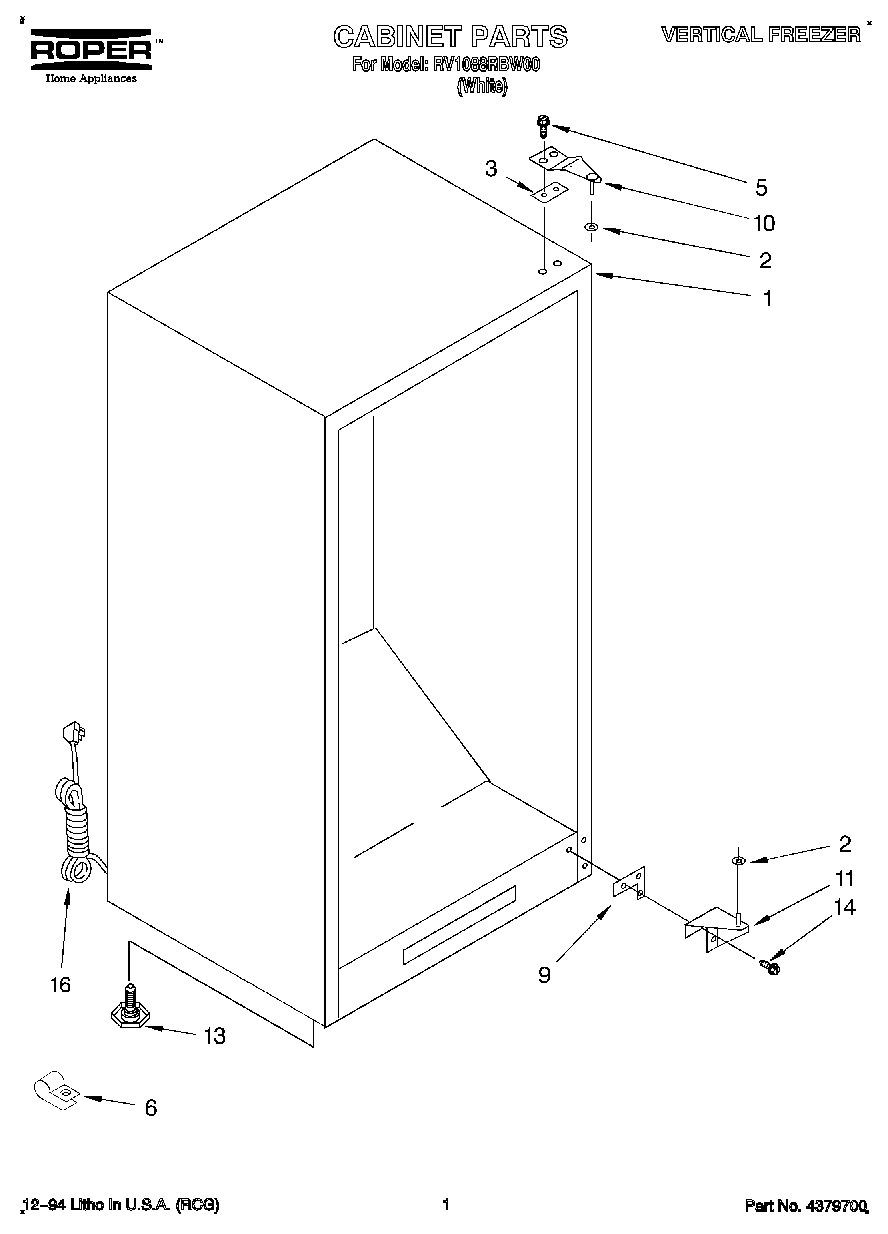

RV1088RBW00 01 – CABINET

Written by

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W10851331 Whirlpool Refrigerator Washer
3	4390489 Whirlpool Refrigerator Shim
5	Screw
6	Clip
9	Shim, Bottom Hinge
10	Top, Hinge
11	Bottom Hinge
13	W11117769 Whirlpool Refrigerator Leveler
14	WP999367 Whirlpool Refrigerator Screw
16	Power Cord
