RV1088RBW00 03 – UNIT

RV1088RBW00 03 – UNIT

Written by

in

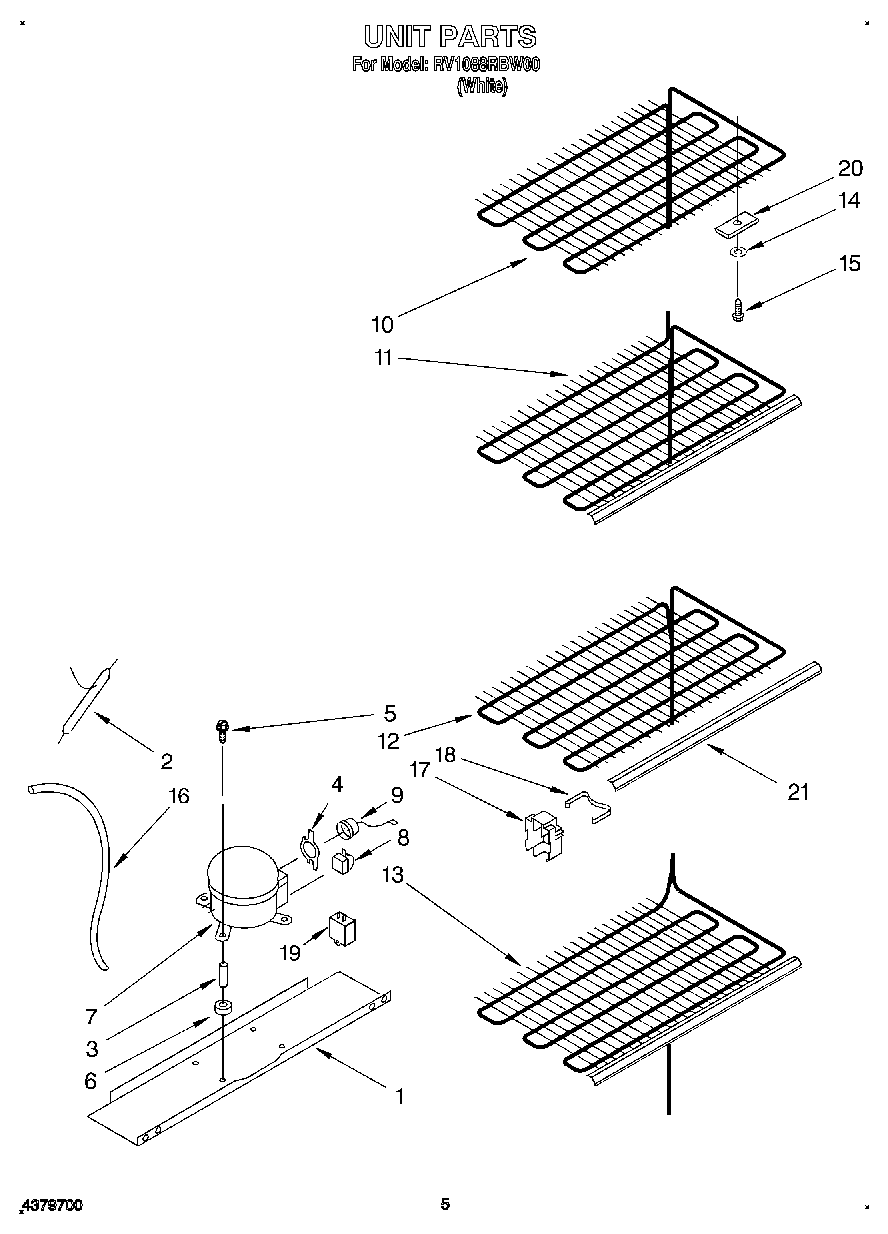

RV1088RBW00 03 – UNIT

Products

PositionProduct
1Compressor Mounting Pan
2W10843121 Whirlpool Refrigerator Tube
3Compressor Grommet Sleeve
4Clip, Overload
5WP999367 Whirlpool Refrigerator Screw
6Grommet, Mounting Compressor
7Compressor
8Relay
9Overload
10Evaporator Top
11Evaporator Shelf
12Wire Shelf
13Evaporator Shelf
14Washer
15Evaporator, Mounting Screw
16Heat Exchanger
17Cover
18Clip, Cover
19WPW10662129 Whirlpool Refrigerator Run Capacitor
20Clamp
21Trim, Shelf
