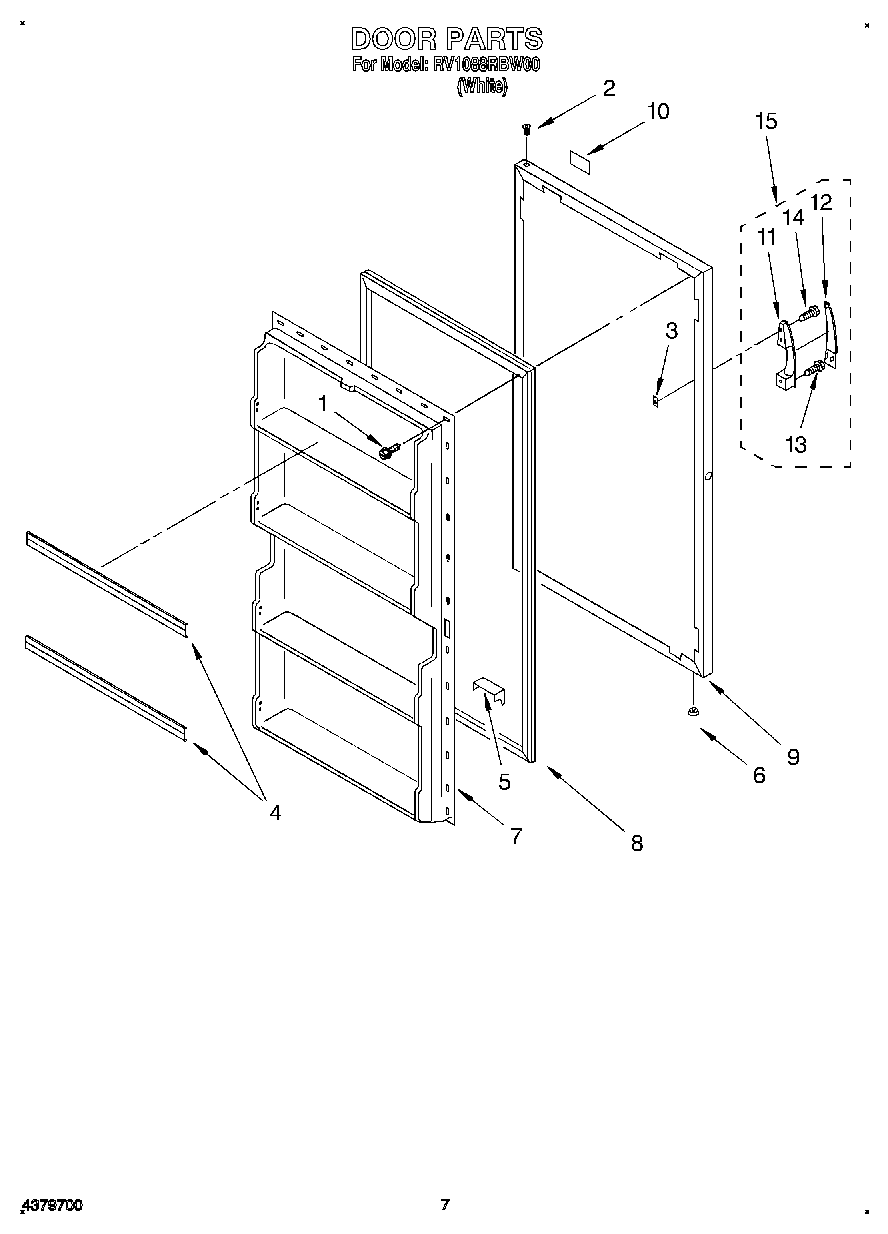

RV1088RBW00 04 – DOOR

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
2	Cap, Hinge Sleeve (4)
3	Anchor, Screw
4	Door Shelf Trim (4)
5	Foam Block
6	3-24898-007 Whirlpool Refrigerator Vent Plug
7	Interior Door
8	Door Gasket
9	Exterior Door
10	Nameplate
11	Handle
12	Handle, Insert (Black)
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Screw
15	Handle Assembly (Includes Items 11, 12, 13 & 14)
