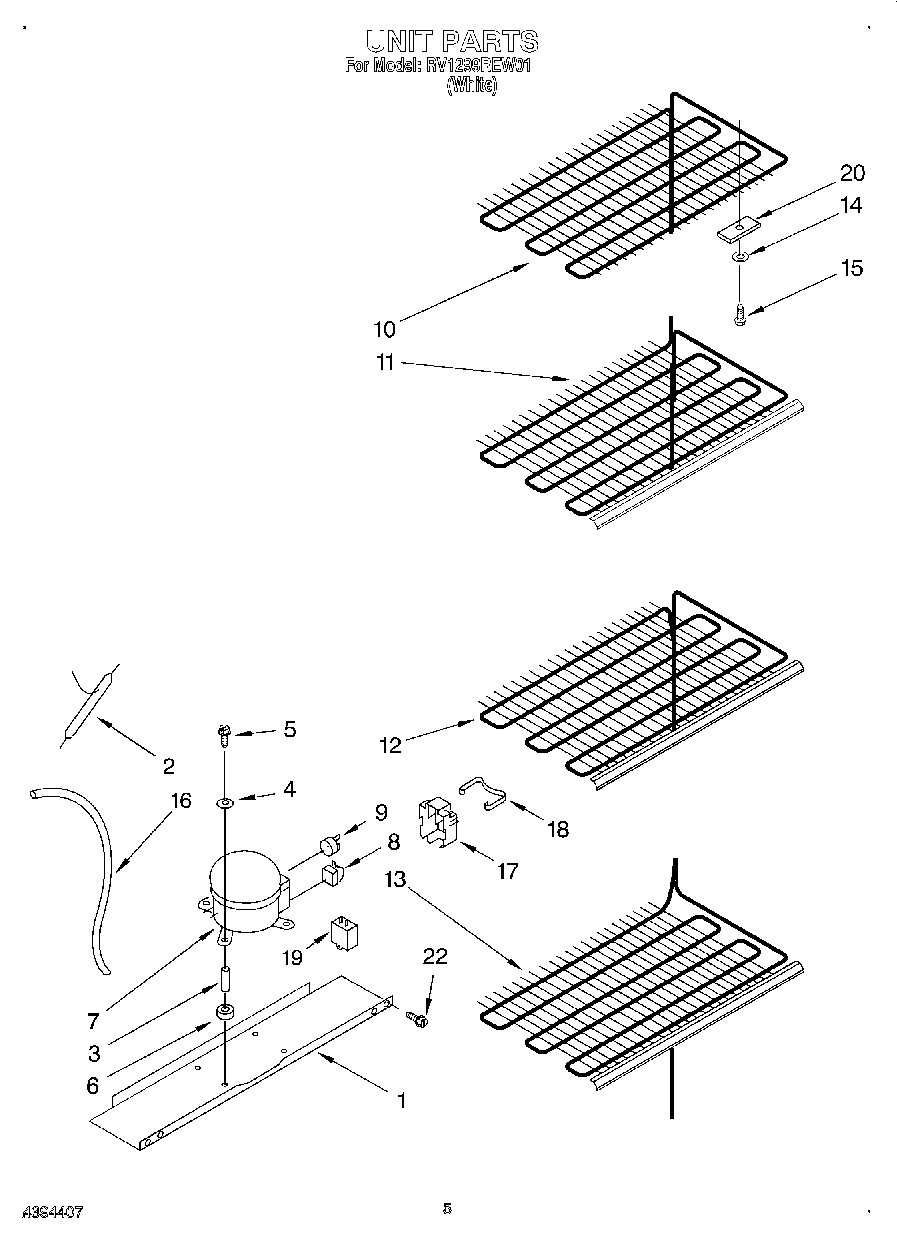

RV1299REW01 03 – UNIT

Products

PositionProduct
1Compressor Mounting Pan
2W10843121 Whirlpool Refrigerator Tube
34356846 Whirlpool Refrigerator Sleeve
4Washer
5Compressor Mounting Screw
6Grommet, Mounting Compressor
7W10309989 Whirlpool Refrigerator Compressor
84318083 Whirlpool Air Conditioner Start Relay
94387913 Whirlpool Refrigerator Primary Overload Relay
10Evaporator Top
11Evaporator Shelf
12Evaporator Shelf
13Evaporator Shelf
14W10903204 Whirlpool Refrigerator Washer
15WP3-24004-109 Whirlpool Refrigerator Screw
16Heat Exchanger
17Cover
18Clip, Cover
19Capacitor
201-80308-101 Whirlpool Refrigerator Bulb Clamp
22WP3-24838-048 Whirlpool Refrigerator Screw
