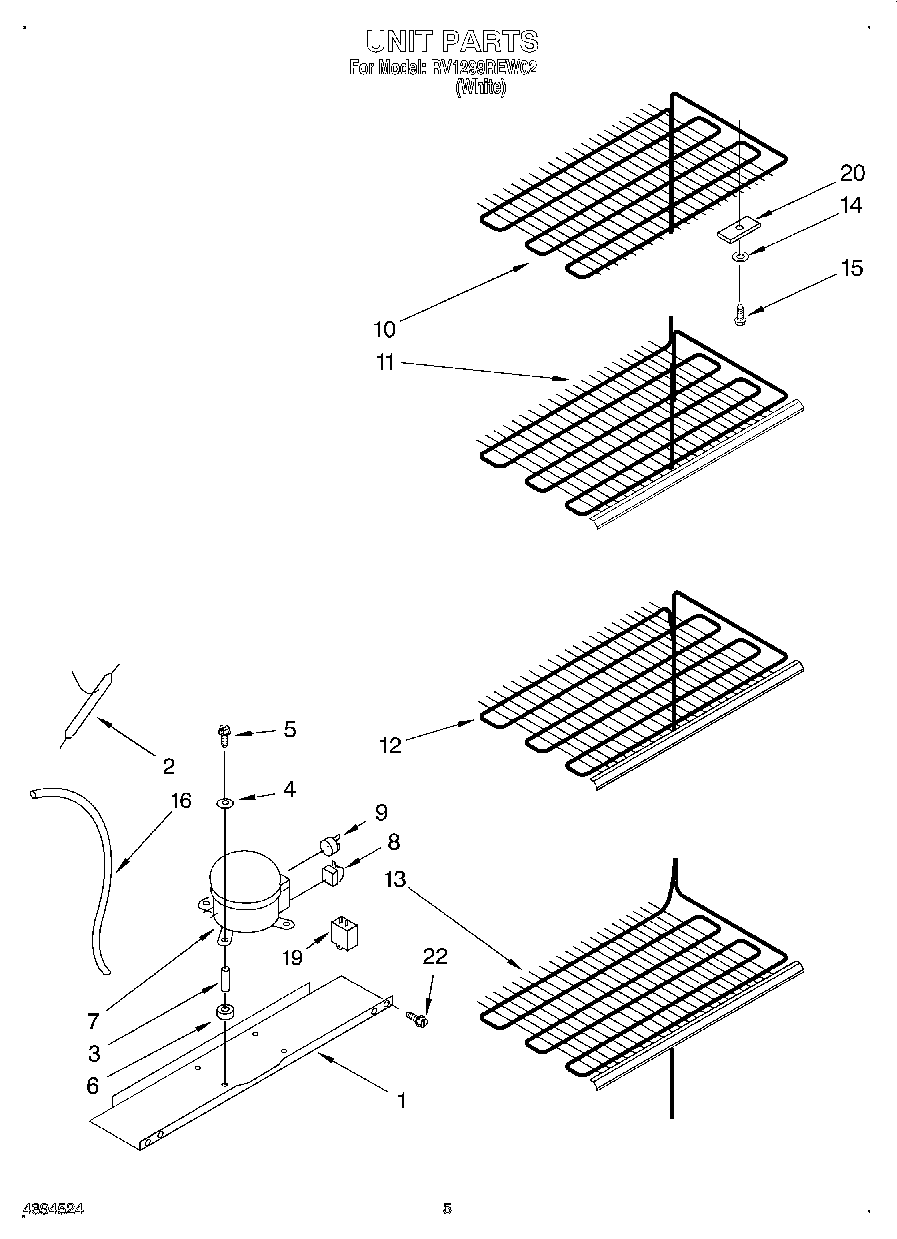

RV1299REW02 03 – UNIT

Products

Position	Product
1	Compressor Mounting Pan
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	Compressor Mounting Screw
6	Grommet, Mounting Compressor
7	W10309989 Whirlpool Refrigerator Compressor
8	Relay
9	2183409 Whirlpool Refrigerator Overload
10	Evaporator Top
11	Evaporator Shelf
12	Evaporator Shelf
13	Evaporator Shelf
14	W10903204 Whirlpool Refrigerator Washer
15	WP3-24004-109 Whirlpool Refrigerator Screw
16	Heat Exchanger
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	1-80308-101 Whirlpool Refrigerator Bulb Clamp
22	WP3-24838-048 Whirlpool Refrigerator Screw
