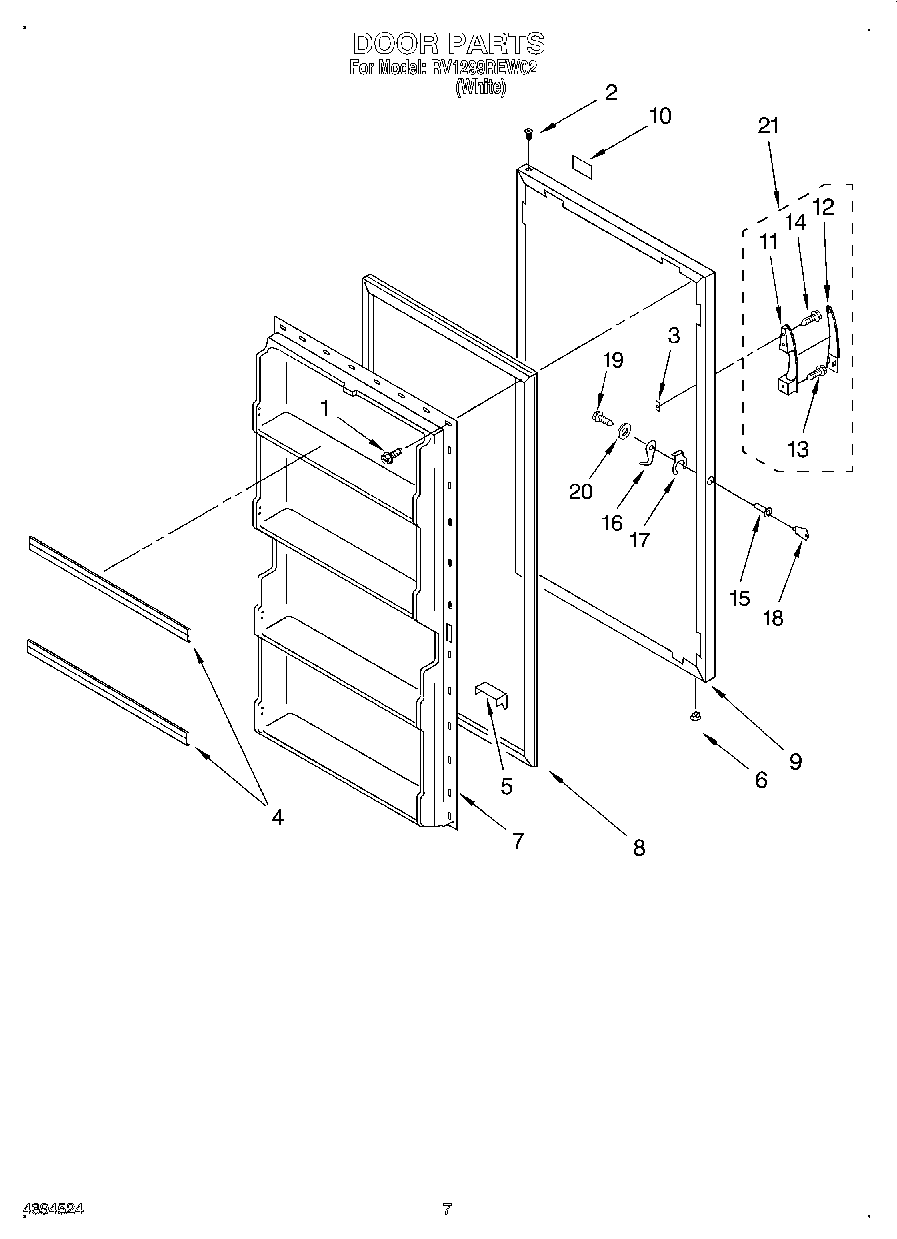

RV1299REW02 04 – DOOR

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
2	4390731 Whirlpool Refrigerator Hinge Bushing
3	Anchor, Screw
4	Door Shelf Trim (4)
5	Foam Block
6	3-24898-007 Whirlpool Refrigerator Vent Plug
7	Interior door
8	Door Gasket
9	Exterior Door
10	Nameplate
11	Handle
12	Insert, Handle
13	Screw (Long)
14	Screw (Short)
15	4357145 Whirlpool Refrigerator Door Lock
16	3-35284-001 Whirlpool Refrigerator Door Lock
17	Spring Clip
18	WP4356840 Whirlpool Refrigerator Door Key
20	Washer
21	Handle Assembly (Includes Items 11, 12, 13 & 14)
