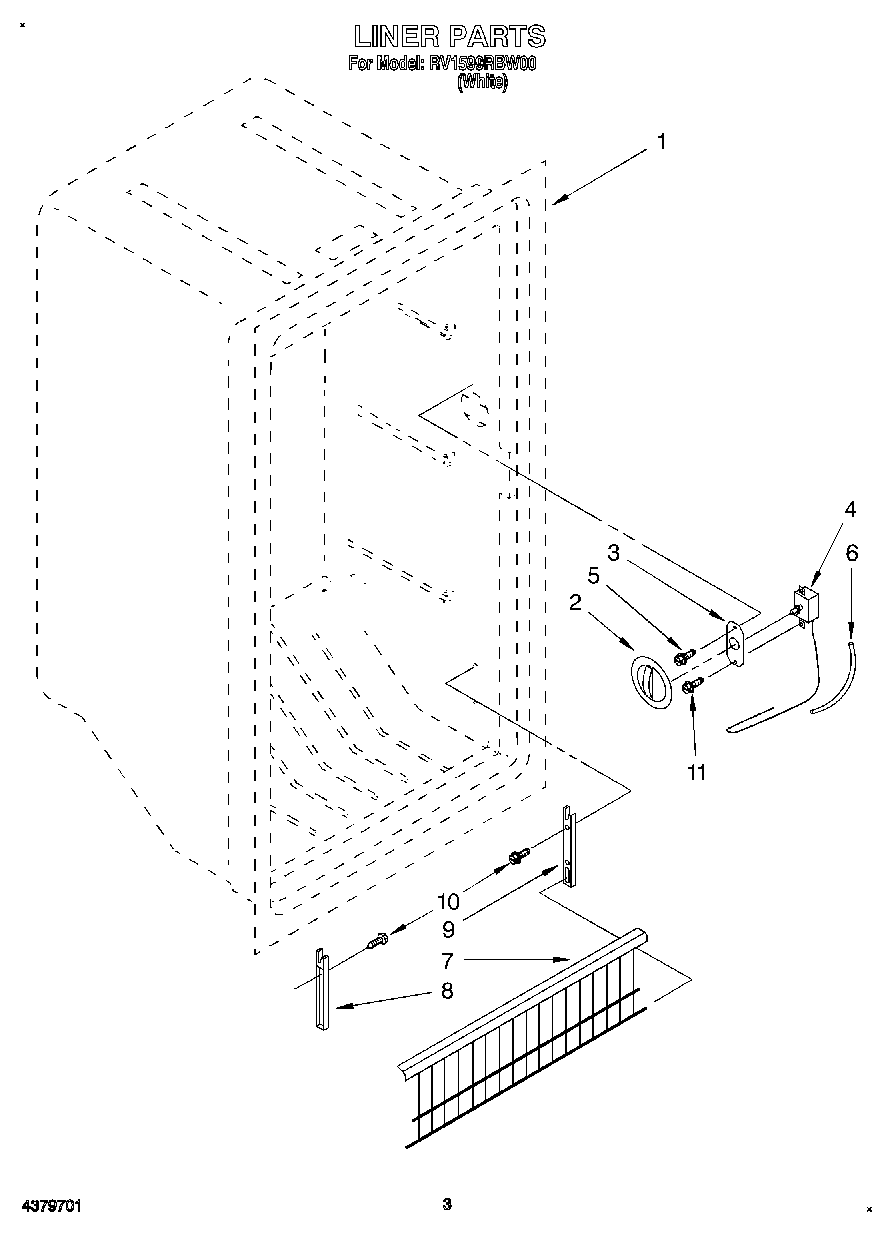

RV1599RBW00 02 – LINER, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	799344 Whirlpool Refrigerator Paint
	Wiring Diagram
1	Liner (Not A Serviceable Part)
2	Control Knob
3	1-81154 Whirlpool Plate
4	Thermostat
5	WPW10068250 Whirlpool Dishwasher Screw
6	WP2196003 Whirlpool Refrigerator Bar Riser
7	Gate
8	Support, Fence, (L.H.)
9	4-80576-202 Whirlpool Refrigerator Gate Support
10	Screw
11	TAPE, VINYL (3/4 X 108``)
11	72017 Whirlpool Appliance Touch-Up Paint White
11	SCREW
11	212643 Whirlpool Refrigerator Permagum Sealer
11	876370 Whirlpool Refrigerator Insulation
11	WP503695 Whirlpool Refrigerator Sealer
11	WP505587 Whirlpool Refrigerator Sealer
11	350930 Whirlpool White Spray Paint
