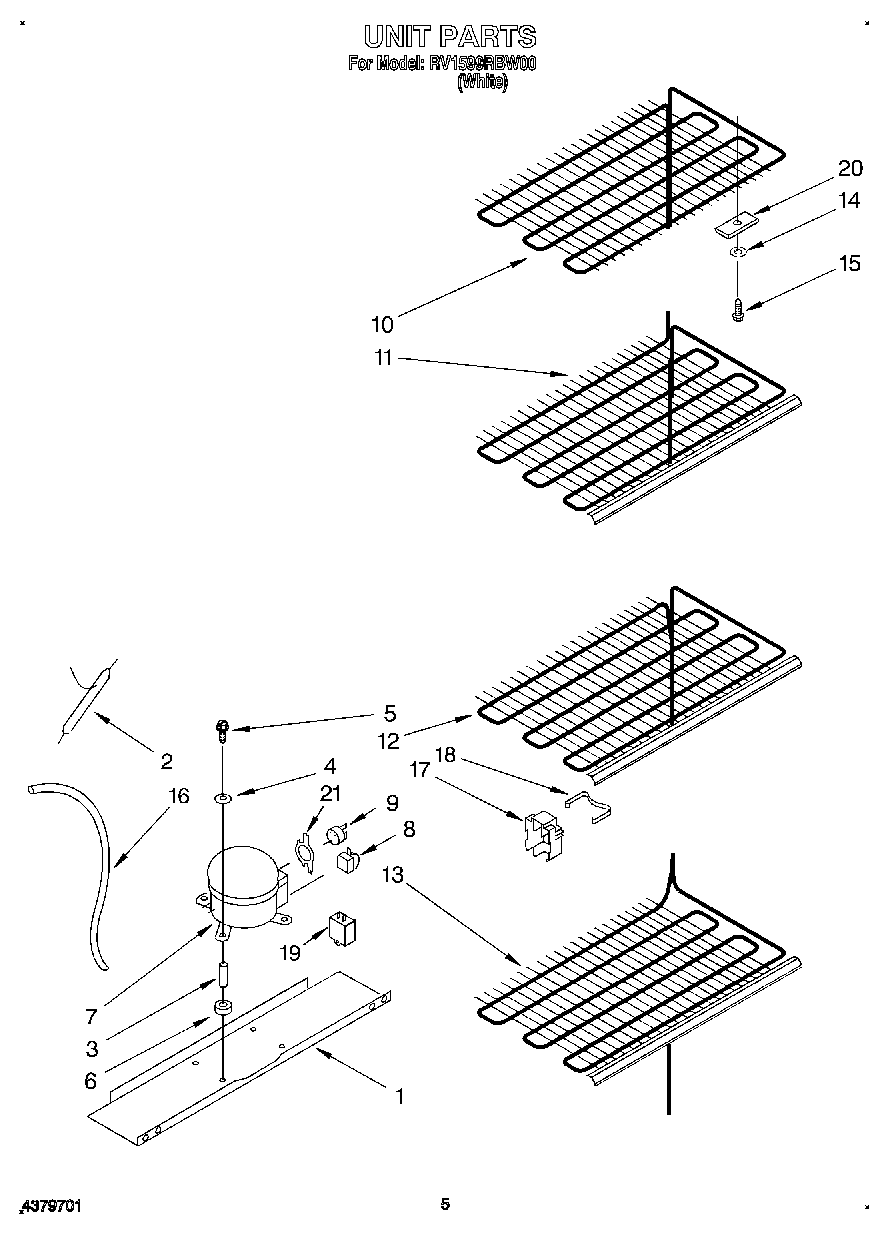

RV1599RBW00 03 – UNIT

Products

Position	Product
1	Compressor Mounting Pan
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	Compressor Mounting Screw
6	Grommet, Mounting Compressor
7	W10439652 Whirlpool Refrigerator Compressor
8	Relay
9	2162216 Whirlpool Refrigerator Overload
10	Evaporator Top
11	Evaporator Shelf (One)
12	Evaporator Shelf (One)
13	Evaporator Shelf (Three)
14	W10903204 Whirlpool Refrigerator Washer
15	Evaporator, Mounting Screw
16	Heat Exchanger
17	Cover
18	Clip, Cover
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	1-80308-101 Whirlpool Refrigerator Bulb Clamp
21	Clip, Overload
