RV15EFRAW00 03 – DOOR

RV15EFRAW00 03 – DOOR

Written by

in

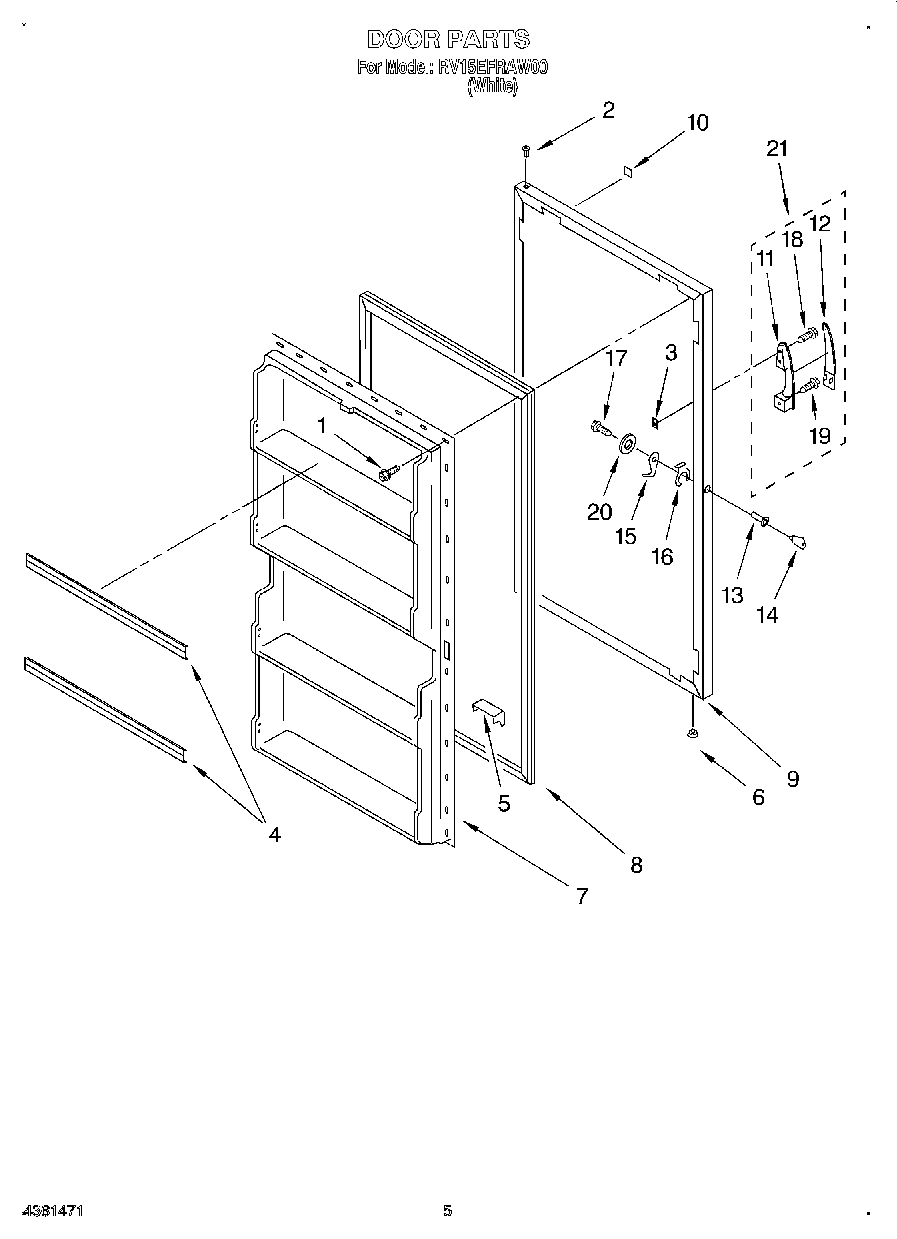

RV15EFRAW00 03 – DOOR

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
24390731 Whirlpool Refrigerator Hinge Bushing
3Anchor, Screw
4Door Shelf Trim (4)
5Foam Block
63-24898-007 Whirlpool Refrigerator Vent Plug
7WP4390870 Whirlpool Refrigerator Panel
8WP4357099 Whirlpool Refrigerator Door Gasket
9Exterior Door
10Nameplate
11Handle
12Handle, Insert (Cherry Hill)
134357145 Whirlpool Refrigerator Door Lock
14WP4356840 Whirlpool Refrigerator Door Key
153-35284-001 Whirlpool Refrigerator Door Lock
16Spring Clip
18WP3-24004-109 Whirlpool Refrigerator Screw
19Screw
20Washer
21Handle Assembly (Includes Items 11, 12, 13 & 14)
