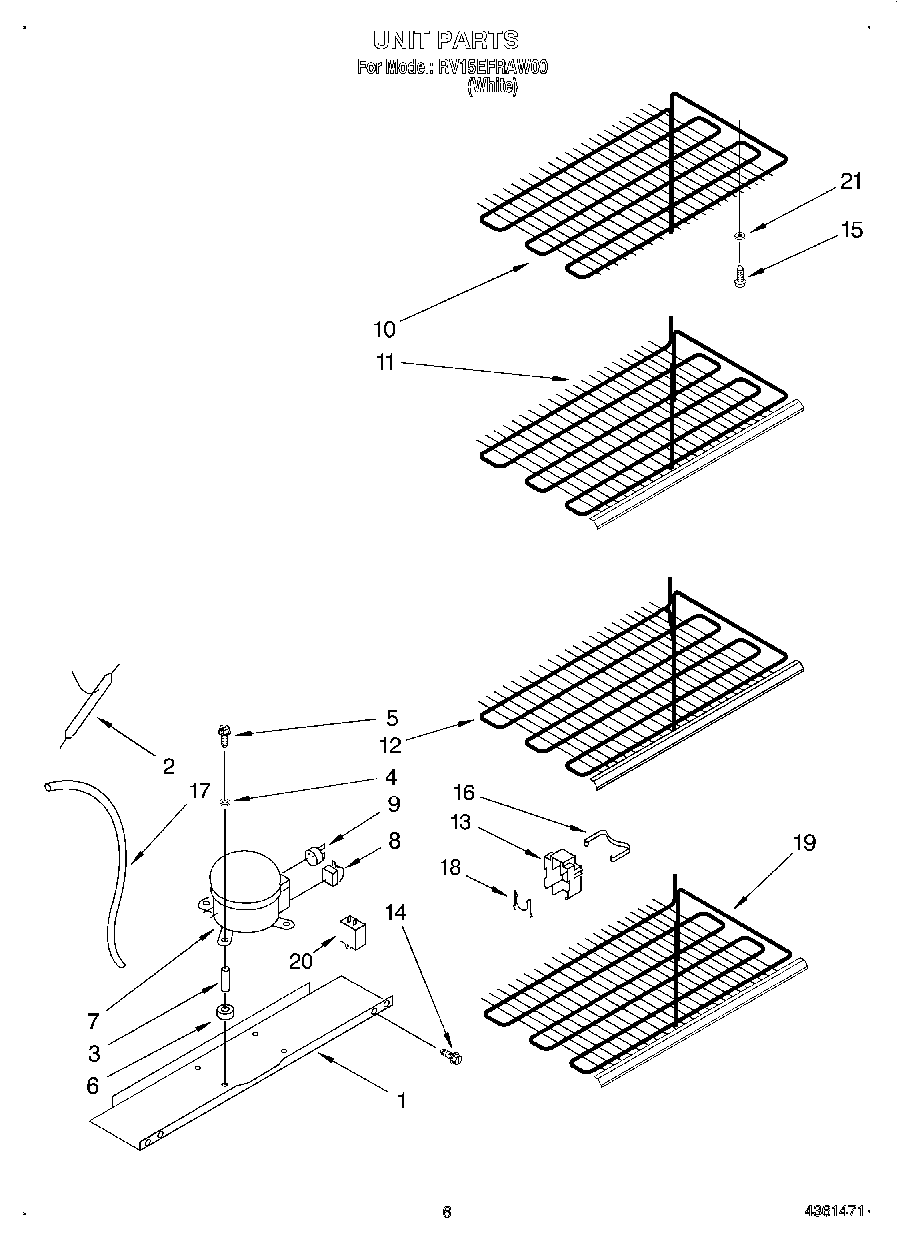

RV15EFRAW00 04 – UNIT

Products

Position	Product
1	Compressor Mounting Pan
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	Compressor Mounting Screw
6	Grommet, Mounting Compressor
7	W10439652 Whirlpool Refrigerator Compressor
8	Relay
9	2162216 Whirlpool Refrigerator Overload
10	Evaporator Top
11	Evaporator Shelf (One)
12	Evaporator Shelf (One)
13	Cover
14	WP3-24838-048 Whirlpool Refrigerator Screw
15	Evaporator, Mounting Screw
16	Clip, Cover
17	Heat Exchanger
18	Clip, Overload
19	Evaporator Shelf (Three)
20	WPW10662129 Whirlpool Refrigerator Run Capacitor
21	W10903204 Whirlpool Refrigerator Washer
