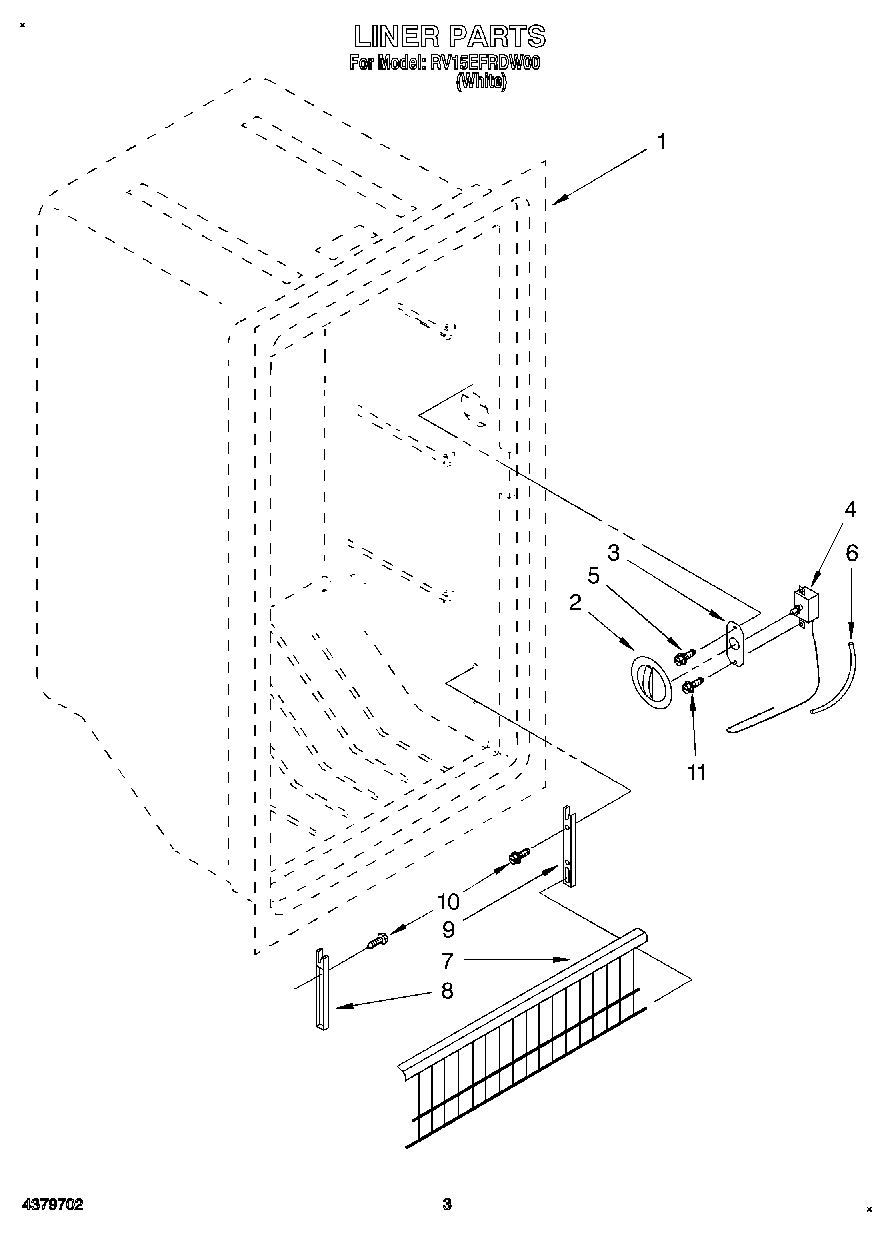

RV15EFRDW00 02 – LINER, LIT/OPTIONAL

RV15EFRDW00 02 – LINER, LIT/OPTIONAL

Written by

in

RV15EFRDW00 02 – LINER, LIT/OPTIONAL

Products

PositionProduct
Use & Care Guide
799344 Whirlpool Refrigerator Paint
Wiring Diagram
1Liner (Not A Serviceable Part)
2Control Knob
31-81154 Whirlpool Plate
4Thermostat
5WPW10068250 Whirlpool Dishwasher Screw
6WP2196003 Whirlpool Refrigerator Bar Riser
7Gate
8Support, Fence, (L.H.)
94-80576-202 Whirlpool Refrigerator Gate Support
10Screw
11TAPE, VINYL (3/4 X 108“)
1172017 Whirlpool Appliance Touch-Up Paint White
11SCREW
11212643 Whirlpool Refrigerator Permagum Sealer
11876370 Whirlpool Refrigerator Insulation
11WP503695 Whirlpool Refrigerator Sealer
11WP505587 Whirlpool Refrigerator Sealer
11350930 Whirlpool White Spray Paint
