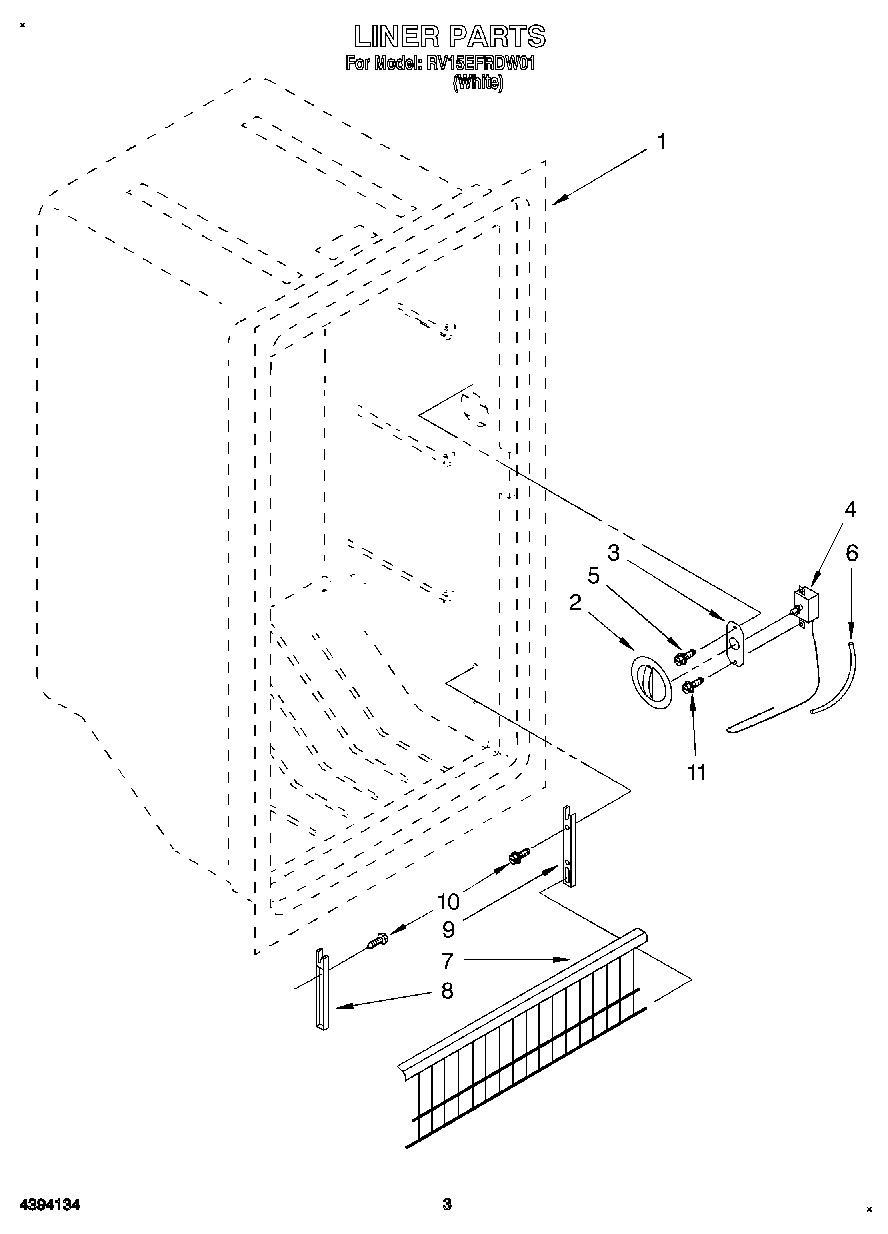

RV15EFRDW01 02 – LINER, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Wiring Diagram
1	Liner (Not A Serviceable Part)
2	Control Knob
3	1-81154 Whirlpool Plate
4	Thermostat
5	WPW10068250 Whirlpool Dishwasher Screw
6	WP2196003 Whirlpool Refrigerator Bar Riser
7	Gate
8	Support, Fence, (L.H.)
9	4-80576-202 Whirlpool Refrigerator Gate Support
10	Screw
11	WP505587 Whirlpool Refrigerator Sealer
11	72017 Whirlpool Appliance Touch-Up Paint White
11	799344 Whirlpool Refrigerator Paint
11	SCREW
11	212643 Whirlpool Refrigerator Permagum Sealer
11	876370 Whirlpool Refrigerator Insulation
11	WP503695 Whirlpool Refrigerator Sealer
11	TAPE, VINYL (3/4 X 108``)
11	350930 Whirlpool White Spray Paint
