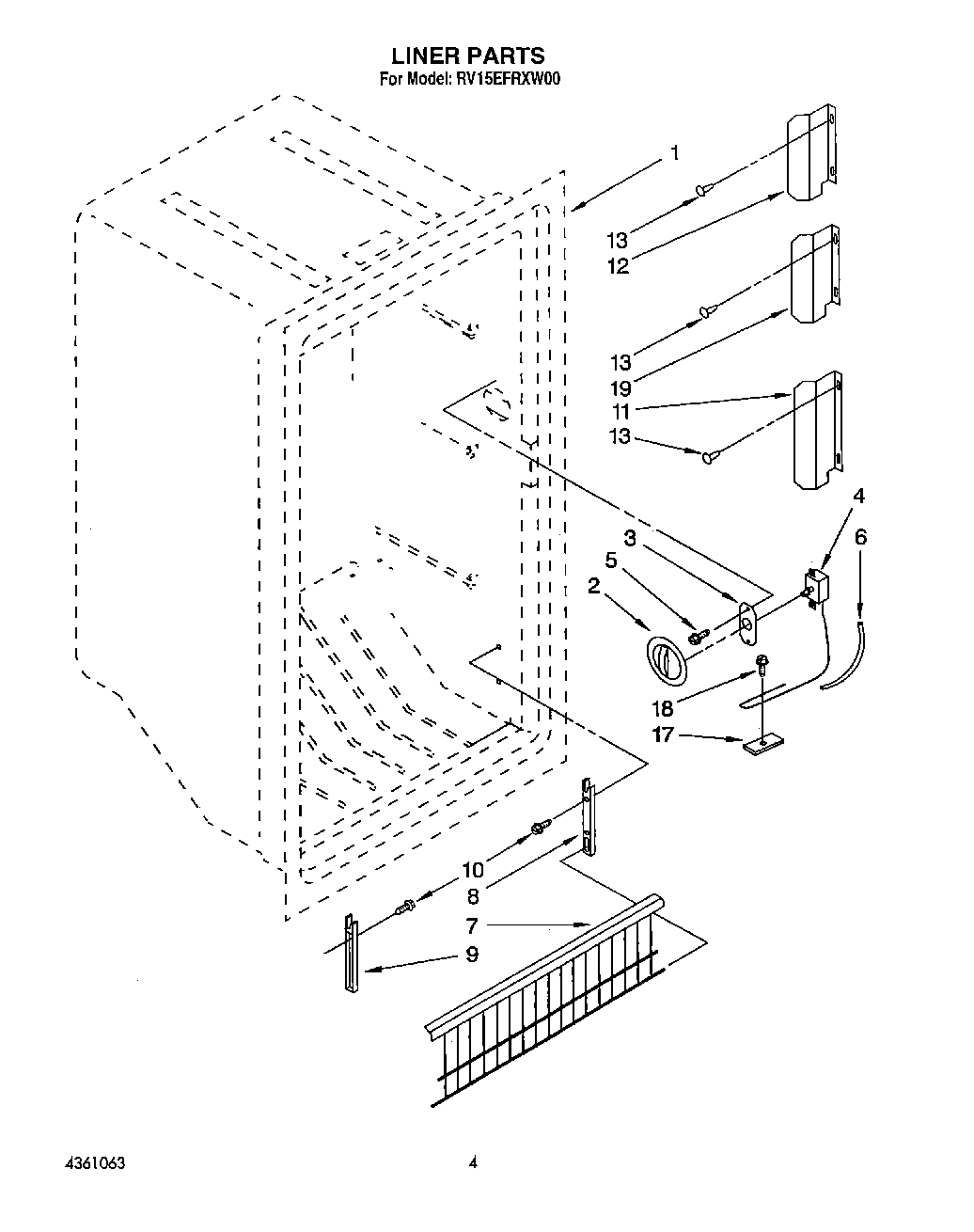

RV15EFRXW00 03 – LINER, LIT/OPTIONAL

Products

Position	Product
	Parts List
	Use & Care Guide
1	Liner (Not A Serviceable Part)
2	Control Knob
3	1-81154 Whirlpool Plate
4	Thermostat
5	Screw
6	WP2196003 Whirlpool Refrigerator Bar Riser
7	Gate
8	Support, Fence, (L.H.)
9	4-80576-202 Whirlpool Refrigerator Gate Support
10	Screw
11	Tube, Cover Bottom
12	Tube, Cover Top
13	Rivet, Plastic
17	1-80308-101 Whirlpool Refrigerator Bulb Clamp
18	Control Bulb Screw
19	WP503695 Whirlpool Refrigerator Sealer
19	72017 Whirlpool Appliance Touch-Up Paint White
19	799344 Whirlpool Refrigerator Paint
19	Tube, Cover Center
19	Transformer (115-230 Volt)
19	TAPE, VINYL (3/4 X 108``)
19	WP505587 Whirlpool Refrigerator Sealer
19	Leveler (Thinner)
19	212643 Whirlpool Refrigerator Permagum Sealer
19	876370 Whirlpool Refrigerator Insulation
19	350930 Whirlpool White Spray Paint
