RV15EFRXW00 04 – DOOR

RV15EFRXW00 04 – DOOR

Written by

in

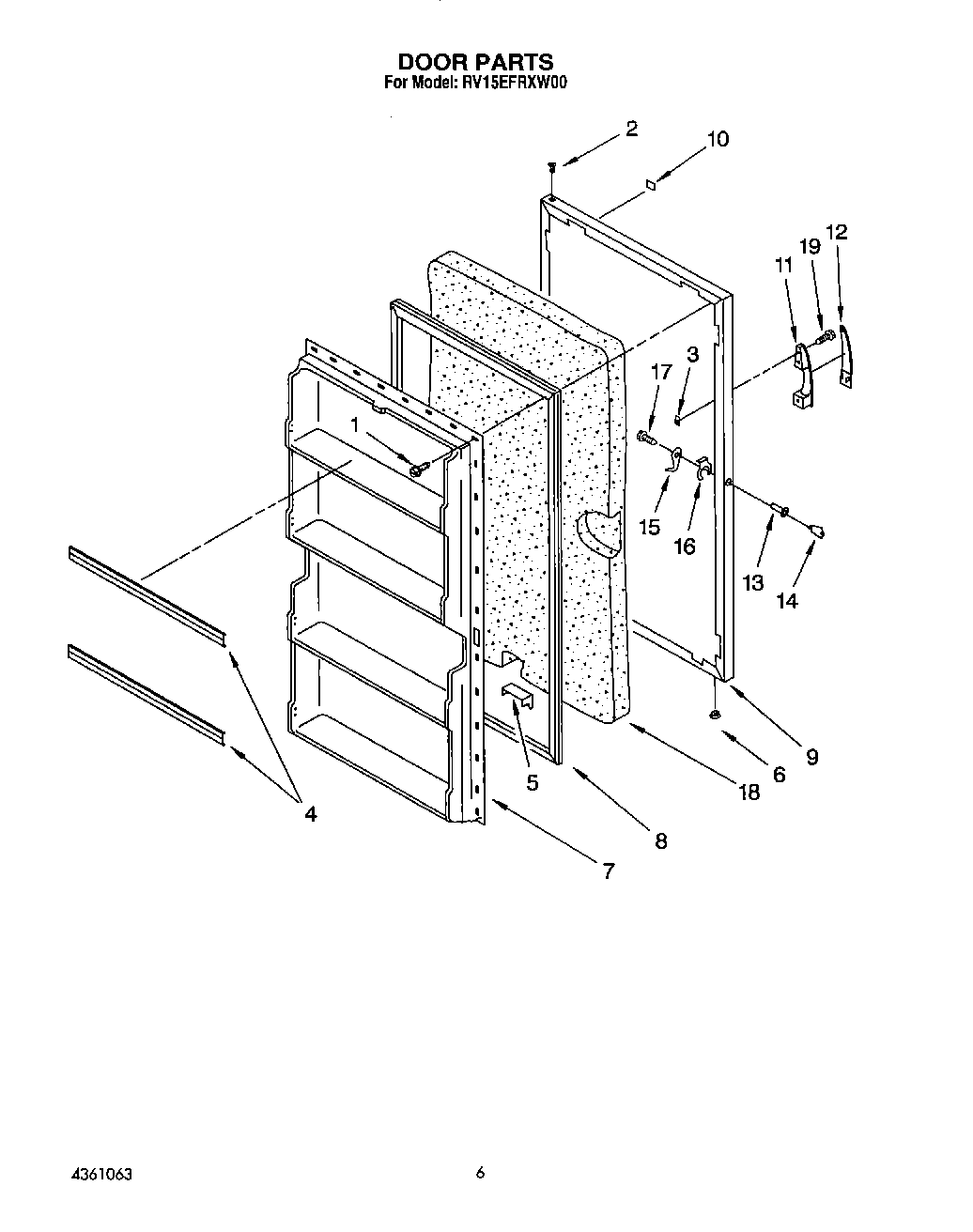

RV15EFRXW00 04 – DOOR

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
24390731 Whirlpool Refrigerator Hinge Bushing
3Anchor, Screw
4Door Shelf Trim (4)
5Foam Block
63-24898-007 Whirlpool Refrigerator Vent Plug
7WP4390870 Whirlpool Refrigerator Panel
8WP4357099 Whirlpool Refrigerator Door Gasket
9Exterior Door (White)
10Nameplate
11Handle
12Handle, Insert (Black)
134357145 Whirlpool Refrigerator Door Lock
14WP4356840 Whirlpool Refrigerator Door Key
153-35284-001 Whirlpool Refrigerator Door Lock
16Spring Clip
18876370 Whirlpool Refrigerator Insulation
19Screw (Repair)
19Screw, 8-18 x 1-5/8 St. Stl. (4)
