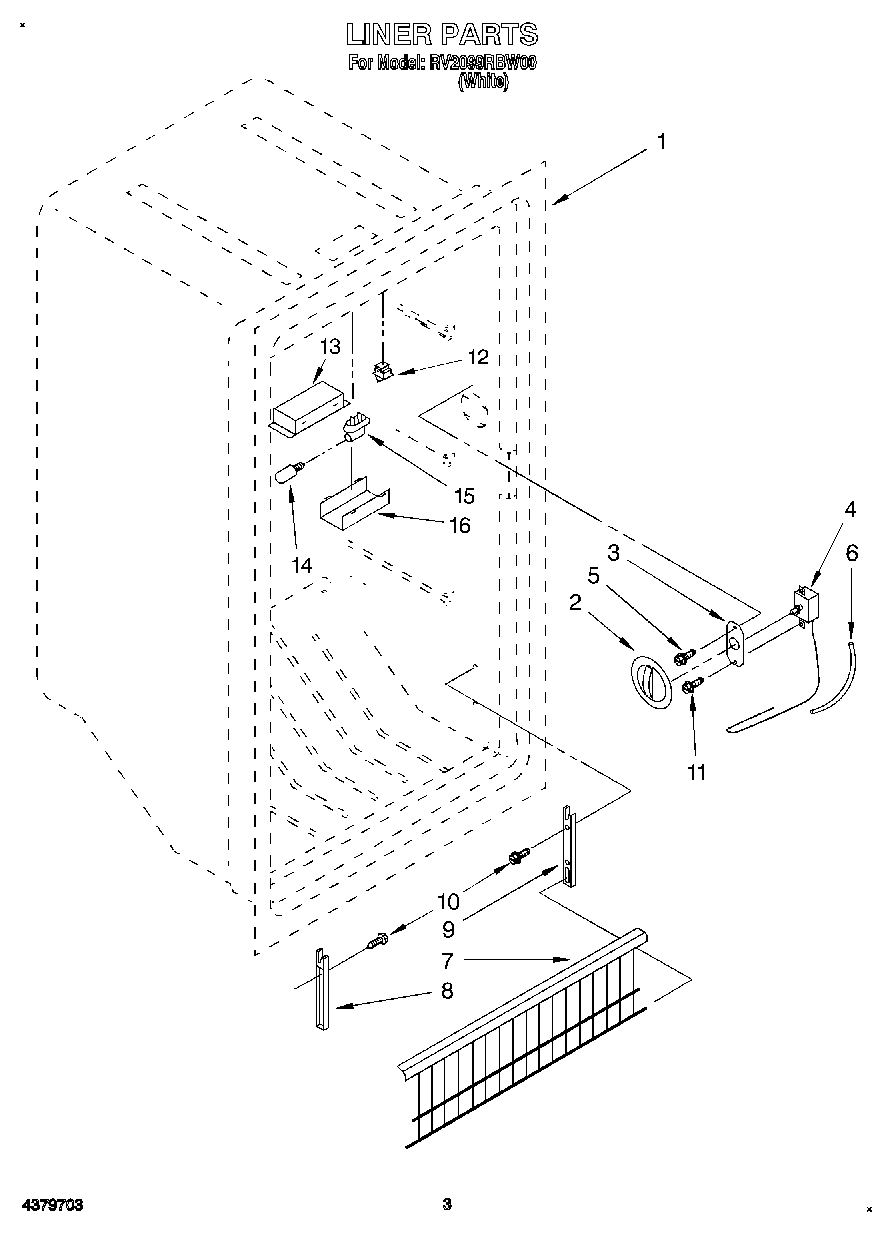

RV2099RBW00 02 – LINER, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Wiring Diagram
	799344 Whirlpool Refrigerator Paint
1	Liner (Not A Serviceable Part)
2	Control Knob
3	1-81154 Whirlpool Plate
4	Thermostat
5	WPW10068250 Whirlpool Dishwasher Screw
6	WP2196003 Whirlpool Refrigerator Bar Riser
7	Gate
8	Support, Fence, (L.H.)
9	4-80576-202 Whirlpool Refrigerator Gate Support
10	Screw
11	SCREW
12	W11384469 Whirlpool Door Switch
13	Bracket, Light
14	W10873798 Whirlpool Refrigerator Light Bulb
15	Socket, Light
16	72017 Whirlpool Appliance Touch-Up Paint White
16	212643 Whirlpool Refrigerator Permagum Sealer
16	876370 Whirlpool Refrigerator Insulation
16	WP503695 Whirlpool Refrigerator Sealer
16	Light Shield
16	WP505587 Whirlpool Refrigerator Sealer
16	TAPE, VINYL (3/4 X 108``)
16	350930 Whirlpool White Spray Paint
