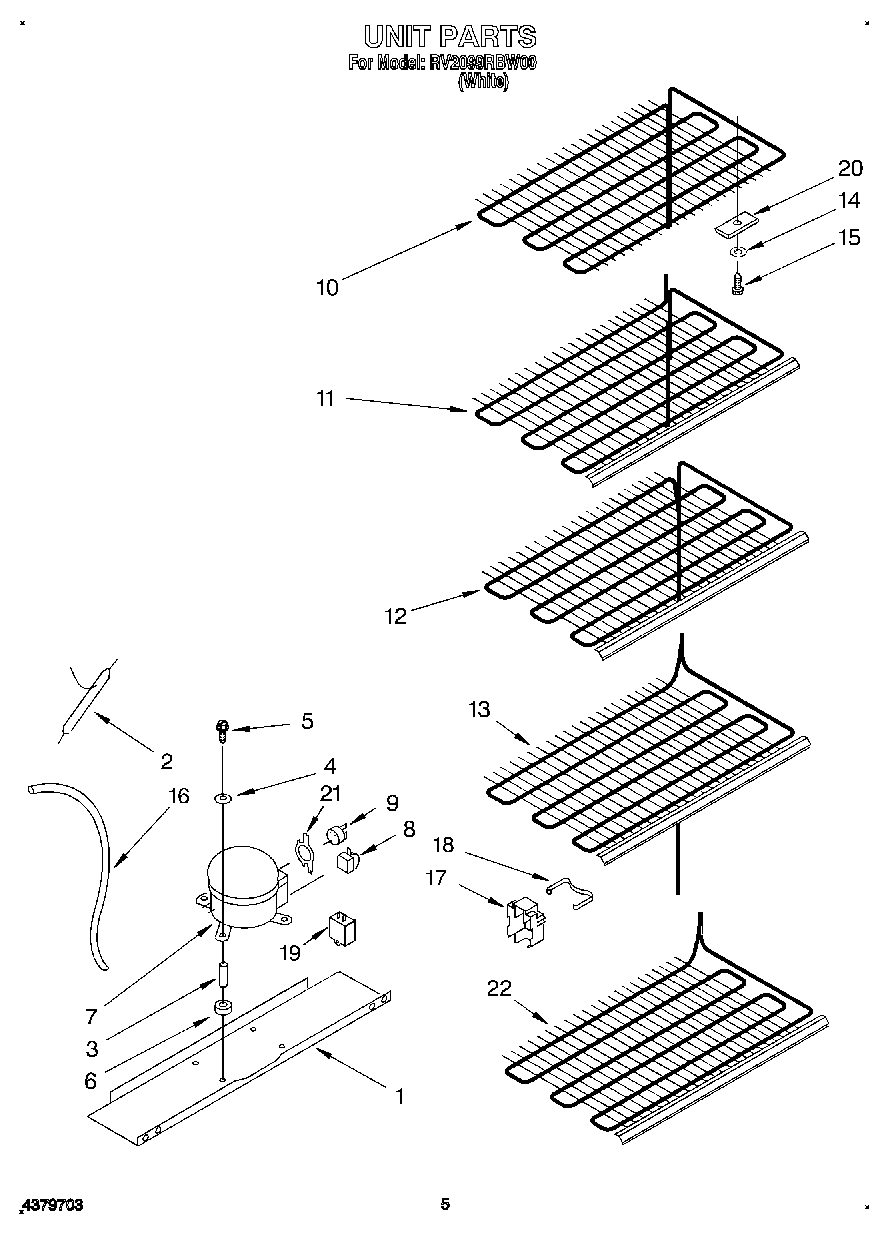

RV2099RBW00 03 – UNIT

Products

Position	Product
1	Pan, Compressor Mounting
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	Compressor Mounting Screw
6	Grommet, Mounting Compressor
7	Compressor
8	Relay
9	Overload
10	Evaporator Top
11	Evaporator Shelf
12	Evaporator Shelf
13	Evaporator Shelf
14	W10903204 Whirlpool Refrigerator Washer
15	Evaporator, Mounting Screw
16	Heat Exchanger
17	Cover
18	Clip, Cover
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	1-80308-101 Whirlpool Refrigerator Bulb Clamp
21	Clip, Overload
22	Evaporator Shelf, Bottom
