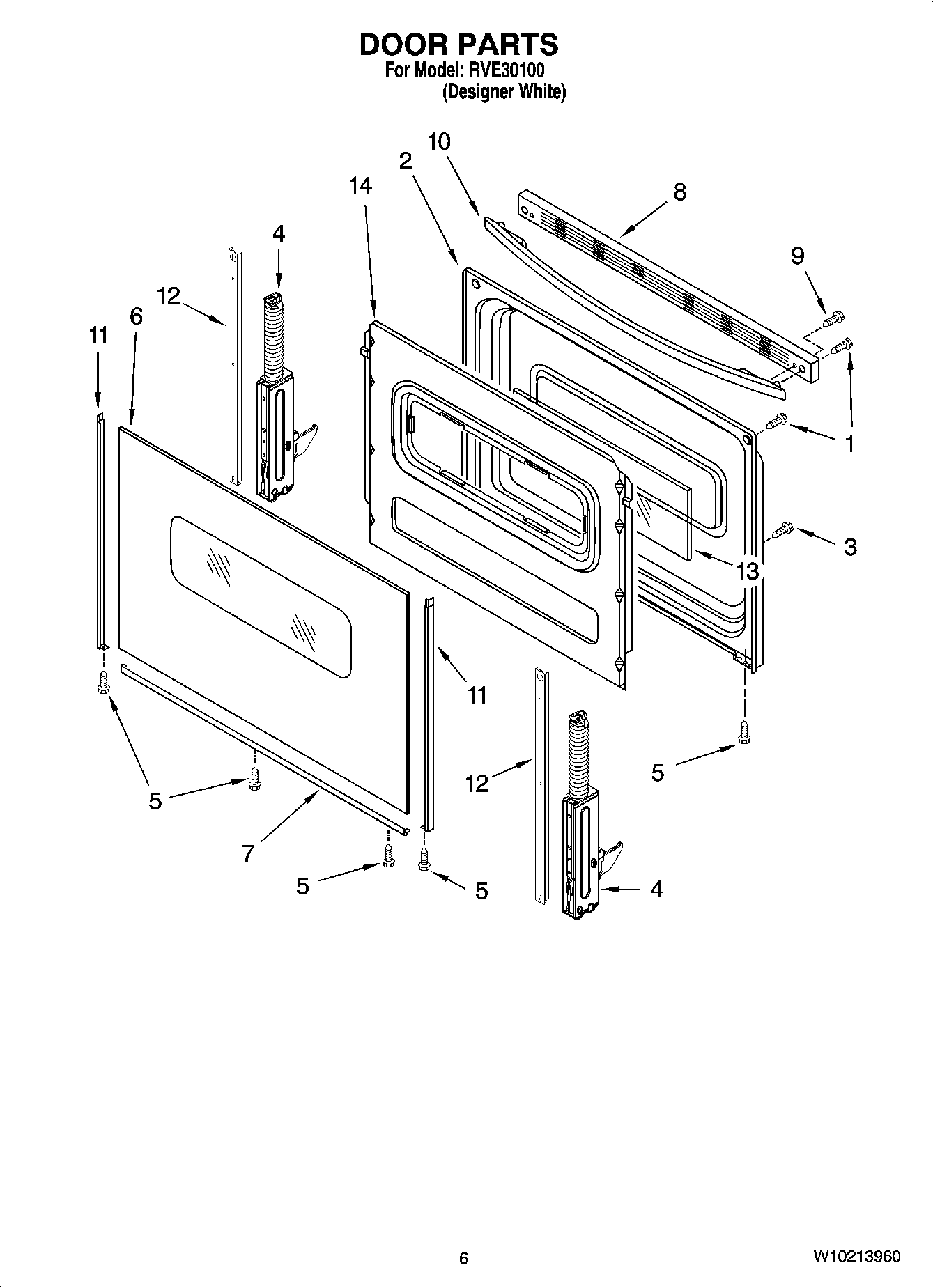

RVE30100 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Grease
	Clip, Ground Wire
	ANTI-TIP KIT
	ACCESSORY PARTS
	WP3196174 Whirlpool Screw
	W11244557 Whirlpool Screw
	8212471 Whirlpool Oven Paint
	3184020 Whirlpool Oven Wire
	Insulation
	WP3196154 Whirlpool Screw Assembly
	WIRING HARNESS PARTS
	REFINISHING MATERIAL
	WPW10295595 Whirlpool Wire Harness
	W11447673 Whirlpool Range Tip Anchor
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	285006 Whirlpool Spray
	W10137379 Whirlpool Wire Harness
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
1	WPW10031790 Whirlpool Screw
2	9761340 Whirlpool Oven Door Liner
4	W10347465 Whirlpool Door Hinge
5	W10491985 Whirlpool Screw
6	WP9762476 Whirlpool Door Glass
7	WP8523175 Whirlpool Door Trim Assembly
8	WPW10016370 Whirlpool Door Trim
9	W10777162 Whirlpool Screw
10	W10202219 Whirlpool Door Handle Assembly
11	WP8523172 Whirlpool Left Door Trim
11	WP3195263 Whirlpool Door Handle
12	W11502236 Whirlpool Door Trim
13	WP9758163 Whirlpool Door Glass Assembly
14	9761500 Whirlpool Oven Retainer
