RVG12C1WT2A 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

RVG12C1WT2A 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

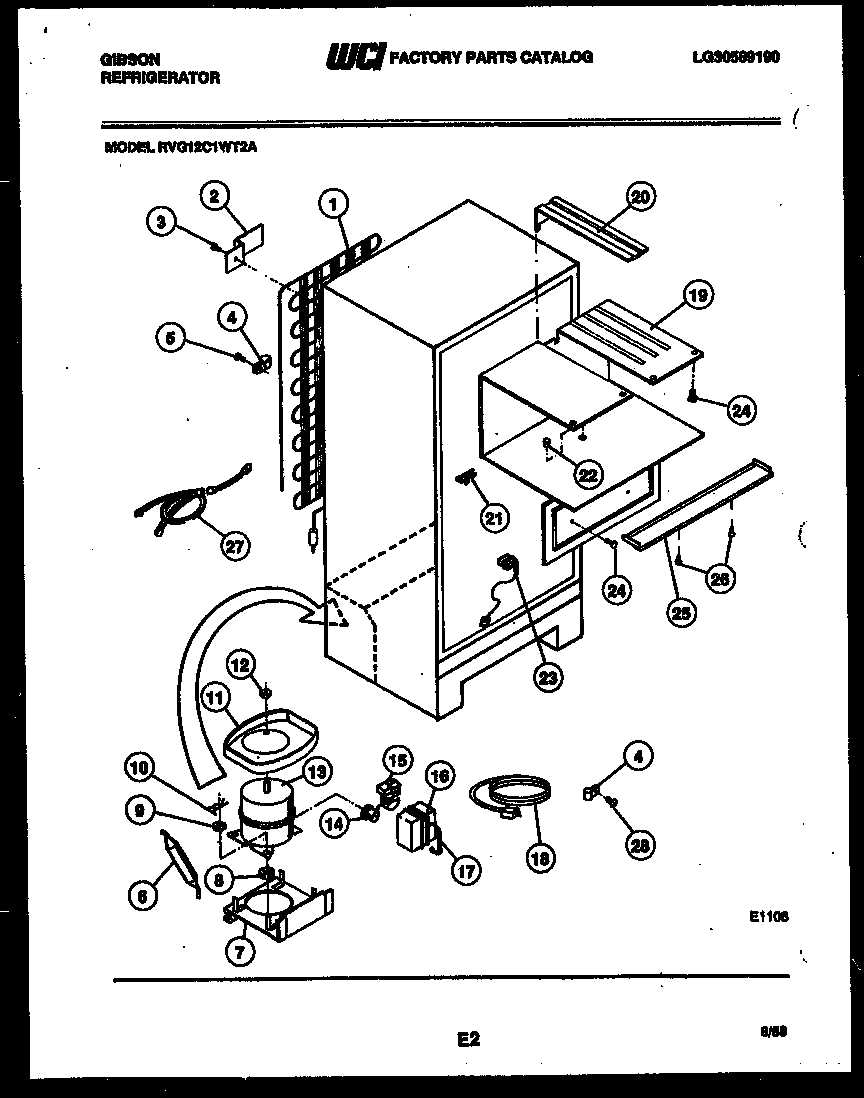

RVG12C1WT2A 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI G164857
2AWASHER
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
45303001199 Frigidaire Refrigerator Wiring Harness Clamp
55304455651 Frigidaire Refrigerator Screw
65303305677 Frigidaire Replacement Filter Dryer Filters
7WCI G162822
8218513300 Frigidaire Refrigerator Compressor Mount Grommet
9WASHER, COMPRESSOR MOUNTING (4)
10CLIP, COMPRESSOR MOUNTING (4)
11BPAN RETAINER KIT-SERVICE
11DEFROST PAN & NUT
11A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12NUT, LOCK
13WCI 3916023
14WCI 3017099
15WCI G182225-16
175303006412 Frigidaire Refrigerator Cover Mounting Strap
18WCI G177252-02
19WCI G186727
20WCI G186573
21WCI G178497
22WCI G164854
23WCI G188106
245304455650 Frigidaire Refrigerator Screw
25WCI G162980-01
26SCREW (5)
27WCI 3017083
27AHOT TUBE REPAIR KIT- (NON-ILLUSTRATED)
285304455852 Frigidaire Refrigerator Screw
