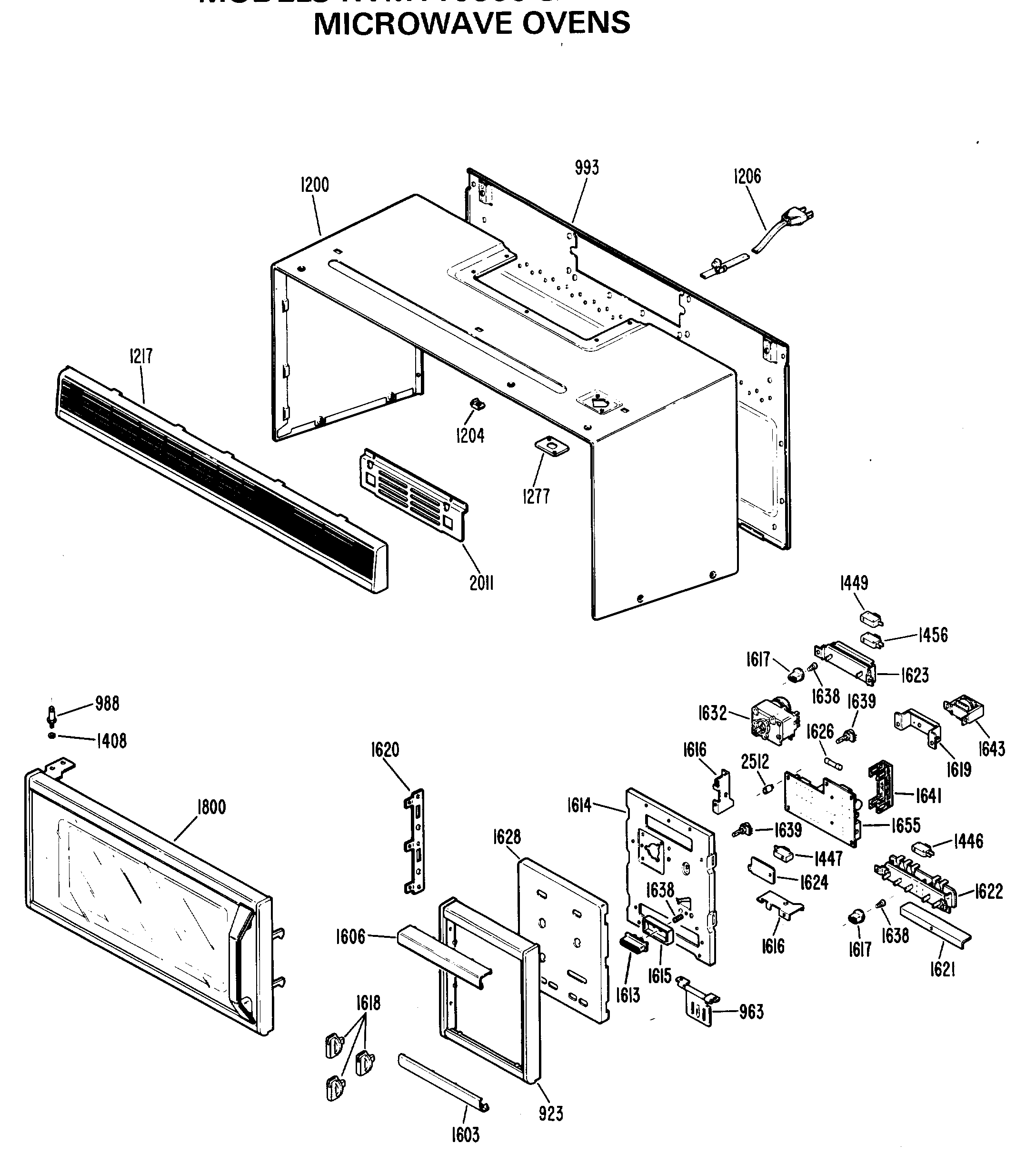

RVM110000 MICROWAVE OVENS

RVM110000 MICROWAVE OVENS

Written by

in

RVM110000 MICROWAVE OVENS

Products

Position	Product
34	GEN WB08X0240
280	WB36X10003 GE Oven 40W 130V Light Bulb
923	TRIM-CONTROL PANEL
949	BRACKET-ADJUSTABLE
963	GEN WB14X0046
988	BOLT
993	GEN WB56X1683
1200	GEN WB56X1684
1202	GEN WB49X0522
1204	NUT ASSEMBLY
1205	GEN WB02X4259
1205	GEN WB02X4255
1206	CORD POWER
1210	HOOD DAMPER
1211	DAMPER DOOR
1217	GRILLE ASSEMBLY
1217	SCREW-GRILLE MOUNTING
1224	GEN WB01X0718
1227	BRACKET-MOTOR
1229	GEN WB02X4261
1230	GEN WB02X4234
1236	GEN WB02X4260
1237	GEN WB09X0199
1239	GEN WB36X0677
1240	FILTER-AIR-BOTTOM
1240	GEN WB02X4267
1241	GEN WB56X1685
1246	THERMOSTAT
1251	GEN WB02X4250
1258	GEN WB26X0072
1277	GEN WB02X4223
1401	OVEN ASSEMBLY
1402	GUIDE-SHAFT-MOUNTING
1405	GEN WB02X4237
1408	WASHER-SMOOTH
1409	DUCT-SIDE-LEFT
1410	GEN WB02X4241
1415	DUCT-EXHAUST
1417	MOTOR-STIRRER
1419	GEN WB02X4233
1422	MOTOR-BLOWER
1423	SUPPORT-MOTOR
1428	WB27X10249 GE Oven Magnetron
1430	GEN WB27X5321
1431	GEN WB02X4246
1433	GEN WB27X0284
1434	GEN WB02X4245
1435	BARRIER-HV TRANSFORMER
1436	FASTENER-HV CAPACITOR
1437	GEN WB02X4258
1438	CAPACITOR-HV
1439	WB27X1160 GE Microwave High Voltage Diode
1443	DUCT-SIDE-RIGHT
1445	SWITCH-MONITOR
1446	GEN WB24X0326
1447	GEN WB24X0327
1448	WB24X829 GE Oven Microwave Secondary Micro Switch
1449	GEN WB24X0364
1450	GEN WB02X4248
1451	GEN WB01X0717
1452	GEN WB20X0079
1453	GEN WB39X0059
1454	PROBE SOCKET
1454	GEN WB01X5588
1455	GEN WB02X4242
1456	GEN WB24X0363
1462	GEN WB49X0519
1475	GEN WB02X4254
1499	GEN WB02X4257
1509	GEN WB02X4232
1527	BARRIER-CAPACITOR
1537	CLIP-BOTTOM
1603	TRIM-CONTROL PANEL-LOWER
1606	TRIM-CONTROL PANEL-UPPER
1613	GEN WB03X5689
1614	BRACKET-CONTROL PANEL
1615	GUIDE BUTTON
1616	BREAKER PCB
1617	GEN WB04X0107
1617	BUTTON-SWITCH
1617	LABEL-BUTTON-ON
1617	GEN WB04X0108
1617	LABEL-BUTTON-HIGH
1617	GEN WB04X0106
1618	KNOB
1619	BRACKET-TRANSFORMER
1620	BRACKET-FRONT PANEL
1621	GEN WB02X4588
1622	GEN WB24X0359
1623	GEN WB24X0360
1624	GEN WB02X4589
1626	WB27X7 GE Oven Fuse
1628	GEN WB02X4586
1632	GEN WB19X0219
1638	SPRING BUTTON
1639	POTENTIOMETER
1641	GEN WB02X4591
1643	TRANSFORMER-LV
1655	SMARTBOARD
1800	DOOR ASSEMBLY
2011	BARRIER-FRONT
2095	GEN WB01X0721
2309	CAPACITOR
2512	HOLDER PCB
2525	GEN WB02X4262
32767	GEN 39-4538
32767	GEN 31-0453
32767	GEN 31-0452
32767	GEN 31-0451
32767	GEN 49-4664
32767	TOUCH UP-CAVITY (SPRAY)
32767	GEN WB02X4265
