RVM122H02

RVM122H02

Written by

in

RVM122H02

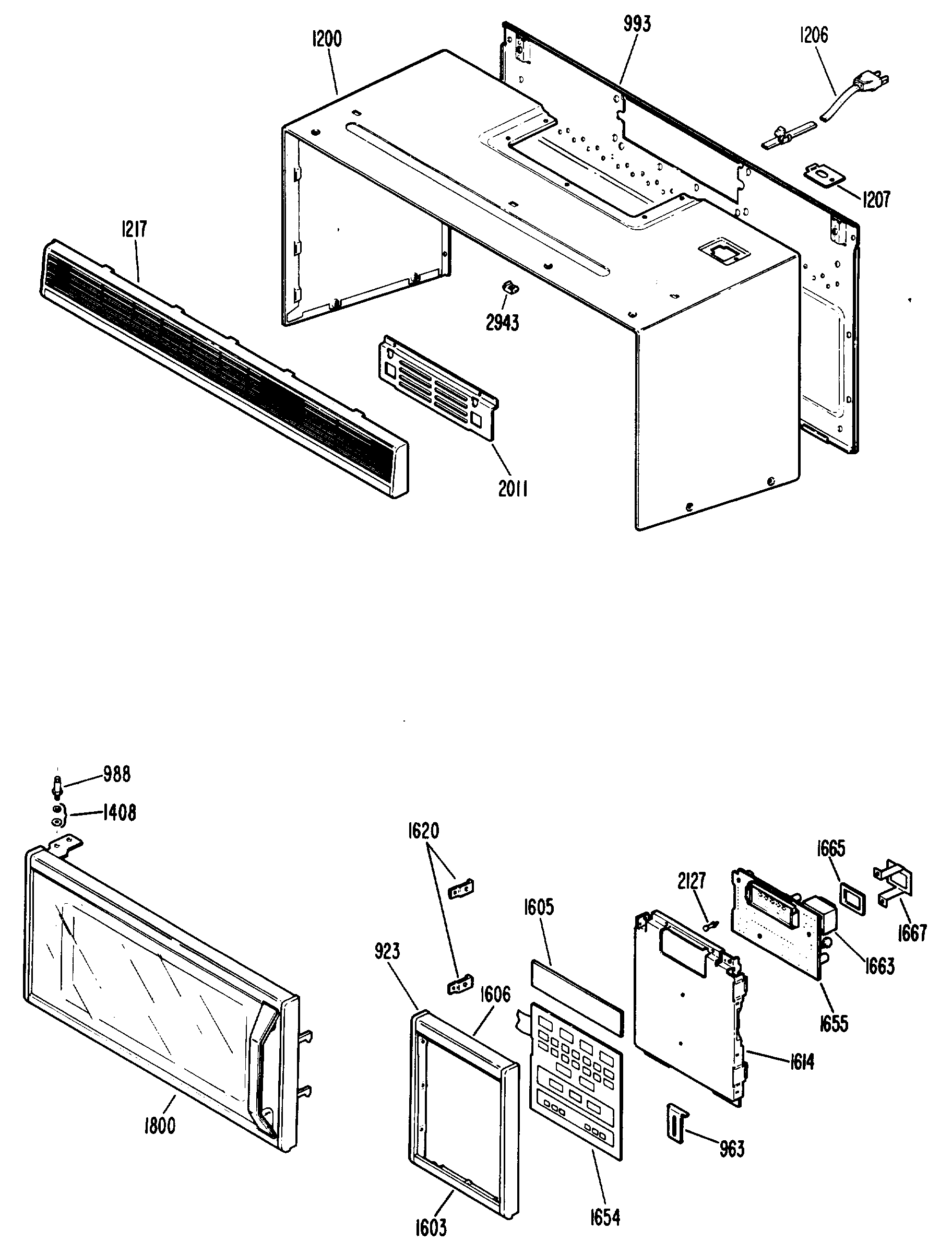

Products

Position	Product
34	GEN WB08X0299
36	RECEPTACLE-LAMP-COOK TOP
280	WB36X10003 GE Oven 40W 130V Light Bulb
923	GEN WB07X1780
963	GEN WB14X0046
988	GEN WB02X9358
993	GEN WB56X1946
1113	GEN WB02X9942
1114	GEN WB02X9943
1117	GEN WB02X9944
1121	GEN WB20X0134
1130	GEN WB02X9952
1200	OUTER CASE, WHITE
1202	GEN WB56X2042
1205	GEN WB02X9324
1205	LATCH BODY-LOWER
1206	GEN WB18X0395
1207	GEN WB02X9323
1208	BRACKET MOTOR
1210	GEN WB02X9957
1211	DAMPER DOOR
1217	GEN WB07X1819
1229	GEN WB02X4261
1236	GEN WB02X4260
1237	GEN WB09X0199
1240	FILTER-AIR-BOTTOM
1240	CHARCOAL FILTER(OPTIONA)
1241	GEN WB56X2043
1258	MOTOR-FAN
1401	OVEN ASSEMBLY
1402	GUIDE-SHAFT-MOUNTING
1407	GEN WB02X9964
1408	WASHER-SMOOTH
1408	GEN WB01X0838
1415	GEN WB02X9946
1416	GEN WB02X9948
1422	MOTOR-BLOWER
1428	WB27X10249 GE Oven Magnetron
1430	GEN WB21X0486
1431	GEN WB02X9955
1433	GEN WB27X0584
1434	GEN WB02X9335
1435	BARRIER-HV TRANSFORMER
1436	FASTENER-HVC
1437	GEN WB02X9951
1438	WB27X10011 GE Microwave Capacitor
1439	WB27X1160 GE Microwave High Voltage Diode
1443	GEN WB02X9950
1445	SWITCH-MONITOR
1446	SWITCH MICRO
1448	WB24X829 GE Oven Microwave Secondary Micro Switch
1450	GEN WB02X9953
1452	GEN WB20X0079
1453	GEN WB49X0635
1454	GEN WB08X0288
1470	GEN WB26X0125
1499	GEN WB02X4257
1500	GEN WB02X9934
1504	GEN WB02X9937
1507	RACK-OVEN
1527	BARRIER-CAPACITOR
1603	TRIM CONTROL PANEL LOWER
1605	GEN WB36X0793
1606	TRIM CONTROL PANEL UPPER
1614	GEN WB02X9319
1620	GEN WB02X9936
1621	FUSE HOLDER
1626	WB27X7 GE Oven Fuse
1632	WB27X10170 GE Oven Capacitor
1648	GEN WB18X0390
1649	GEN WB18X0392
1654	GEN WB27X0638
1655	GEN WB27X0633
1663	GEN WB27X0576
1665	GEN WB02X9962
1667	GEN WB02X9933
1800	GEN WB55X0741
2011	GEN WB02X9954
2095	GEN WB01X0721
2127	GEN WB02X9963
2920	GEN WB02X9935
2931	GEN WB02X9949
2935	GEN WB01X0718
2940	GEN WB36X0796
2943	GEN WB01X1398
2944	PIN WIRE
2945	THERMOSTAT
2946	CLIP
2956	GEN WB02X9956
2958	GEN WB02X9961
32767	TOUCH UP-CAVITY (BRUSH)
32767	GEN WB02X9339
32767	GEN 31-0689
32767	TOUCH UP-CAVITY (SPRAY)
32767	GEN 31-0864
32767	TOP CABINET TEMPLATE
