RVM125K03

RVM125K03

Written by

in

RVM125K03

Products

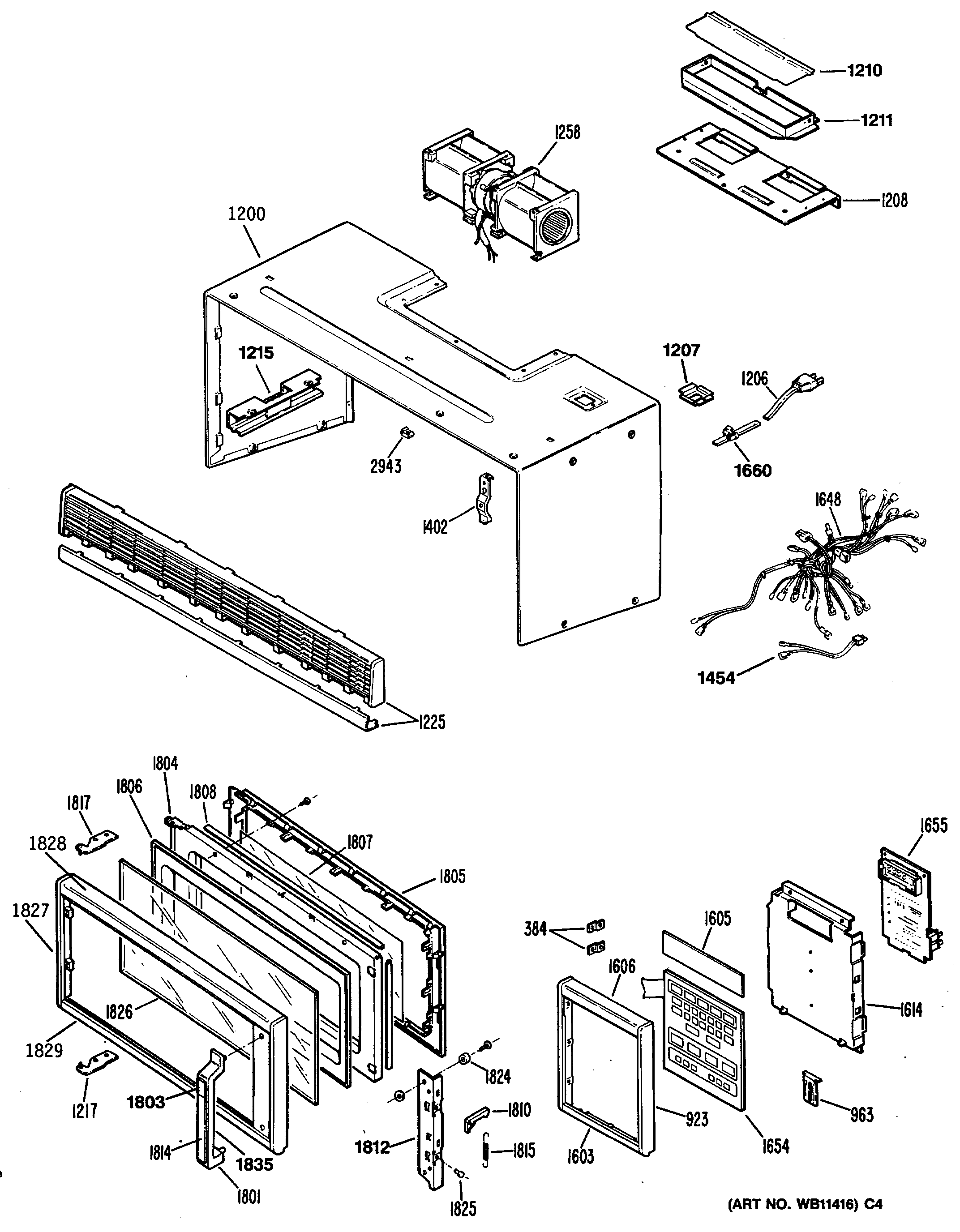

Position	Product
34	GEN WB08X0275
38	GEN WB08X0306
281	WB36X10003 GE Oven 40W 130V Light Bulb
384	GEN WB06X0183
923	GEN WB07X1882
963	GEN WB14X0159
993	GEN WB56X2079
994	GEN WB06X0178
1121	GEN WB20X0146
1200	GEN WB56X2080
1201	GEN WB63X0443
1205	GEN WB02X9324
1205	LATCH BODY-LOWER
1206	GEN WB18X0435
1207	GEN WB06X0179
1208	BRACKET MOTOR
1210	GEN WB02X9957
1211	DAMPER DOOR
1215	GEN WB06X0304
1217	GEN WB14X0162
1225	GEN WB07X1888
1229	GEN WB02X4261
1236	GEN WB02X4260
1237	GEN WB09X0199
1238	GEN WB36X0830
1239	GEN WB36X0820
1240	FILTER-AIR-BOTTOM
1242	GEN WB06X0322
1258	GEN WB26X0141
1402	GUIDE-SHAFT-MOUNTING
1417	GEN WB26X0154
1419	GEN WB06X0180
1422	GEN WB26X0143
1423	GEN WB63X0444
1424	GEN WB06X0184
1428	WB27X10585 GE Oven Magnetron
1430	GEN WB21X0486
1431	WB27X709 GE Oven Thermostat Vent
1433	GEN WB27X0707
1435	BARRIER-HV TRANSFORMER
1437	GEN WB06X0185
1438	WB27X10240 GE Oven High Voltage Capacitor
1439	WB27X1160 GE Microwave High Voltage Diode
1441	GEN WB04X0131
1445	SWITCH-MONITOR
1447	SWITCH MICRO
1448	WB24X829 GE Oven Microwave Secondary Micro Switch
1452	GEN WB20X0147
1453	GEN WB49X0672
1454	GEN WB20X0145
1455	GEN WB06X0182
1465	GEN WB38X0130
1499	GEN WB02X4257
1500	GEN WB06X0419
1507	GEN WB48X0223
1516	LABEL MENU CODE
1603	GEN WB07X1881
1605	GEN WB36X0857
1606	GEN WB07X1880
1614	GEN WB06X0173
1621	FUSE HOLDER
1623	WB27X10170 GE Oven Capacitor
1626	WB27X7 GE Oven Fuse
1643	GEN WB27X0708
1648	GEN WB18X0436
1654	GEN WB27X0802
1655	GEN WB27X0803
1660	GEN WB02X9323
1801	GEN WB15X0325
1804	GEN WB55X0764
1805	GEN WB55X0765
1806	GEN WB55X0763
1807	GEN WB36X0819
1808	GEN WB06X0176
1810	GEN WB10X0279
1814	GEN WB07X1890
1815	GEN WB09X0282
1817	GEN WB14X0161
1824	GEN WB06X0175
1825	GEN WB06X0174
1826	GEN WB36X0818
1827	GEN WB55X0771
1828	GEN WB07X1885
1829	GEN WB07X1886
2095	GEN WB01X0721
2921	GEN WB06X0181
2943	GEN WB01X1398
2958	GEN WB06X0351
3005	OVEN ASSEMBLY
3005	GEN WB01X1458
3010	GEN WB01X0894
7128	GEN WB01X1460
9999	GEN 31-1120
9999	WIRING SCHEMATIC
9999	GEN 39-4711
9999	GEN 31-1121
9999	GEN 31-1056
