RVM1325WW004 MICROWAVE

RVM1325WW004 MICROWAVE

Written by

in

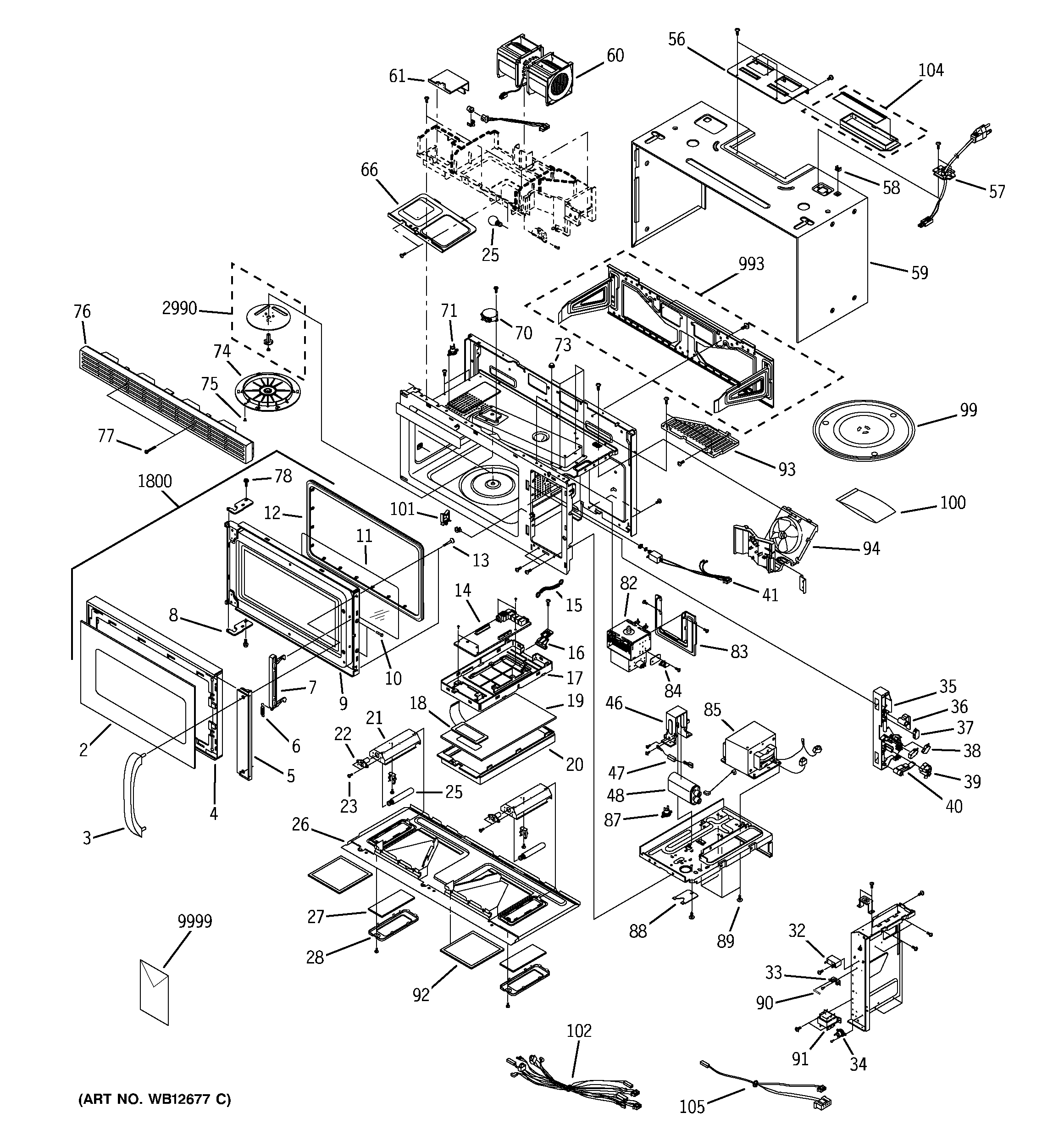

RVM1325WW004 MICROWAVE

Products

Position	Product
2	GEN WB36X10156
3	GEN WB15X0338
4	DOOR-A
5	BRACKET – DOOR
6	GEN WB09X0303
7	GEN WB10X0301
8	GEN WB14X0203
9	CHOKE COVER
10	GEN WB06X10025
11	GEN WB36X0943
12	GEN WB55X0986
13	GEN WB01X1525
14	ASSY PCB PARTS
15	GEN WB18X10139
16	HINGE-C/BOX
17	ASSY-BKT C/PANEL
18	GEN WB36X10070
19	GEN WB27X1139
20	GEN WB07X2092
21	GEN WB06X10117
22	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
23	SCREW-LAMP SOCKET
25	WB36X10003 GE Oven 40W 130V Light Bulb
26	GEN WB56X10171
27	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
28	COVER LAMP
32	WB27X10170 GE Oven Capacitor
33	GEN WB06X10005
34	WB27X709 GE Oven Thermostat Vent
35	GEN WB06X0484
36	GEN WB06X0489
37	WB24X829 GE Oven Microwave Secondary Micro Switch
38	WB24X830 GE Oven Door Switch
39	GEN WB06X0490
40	GEN WB06X0491
41	GEN WB18X10048
46	GEN WB06X10118
47	WB27X10597 GE Oven Diode
48	WB27X10011 GE Microwave Capacitor
56	GEN WB06X0387
57	GEN WB18X0566
58	ASM.- NUT HOLDER
59	GEN WB56X10143
60	GEN WB26X0182
61	GEN WB06X0492
66	GEN WB06X0493
70	GEN WB26X0154
71	GEN WB27X10167
73	WB01X10065 GE Oven Flange Nut
74	GEN WB06X10130
75	BUTTON-LOCK
76	GEN WB07X2083
77	SCREW TRUSS HD. 4X12MM
78	GEN WB01X10064
82	WB27X10017 GE Microwave Oven Magnetron
83	GEN WB06X10280
84	GEN WB24X0810
85	GEN WB27X10377
87	WB27X1127 RANGE THERMAL FUSE
88	COVER TCO BOTTOM
89	WB01X10084 GE Oven Washer Screw
90	WB27X10928 GE Oven Line Fuse
91	GEN WB27X10680
92	WB6X486 GE Microwave Range Vent Hood Grease Filter
93	GEN WB06X0495
94	ASSY-MOTOR FAN
99	COOKING TRAY
100	GEN WB01X1526
101	GEN WB01X10135
102	ASSY WIRE H ARNESS-A
104	WB06X10436 GE Oven Hood Damper Assembly
105	WIRE HARNESS-C ASS'Y
993	GEN WB56X2147
1800	GEN WB55X1009
2990	GEN WB06X0496
9999	GEN 49-8699-3
9999	GEN 31-20901
9999	GEN 49-8729
9999	GEN 39-40006
