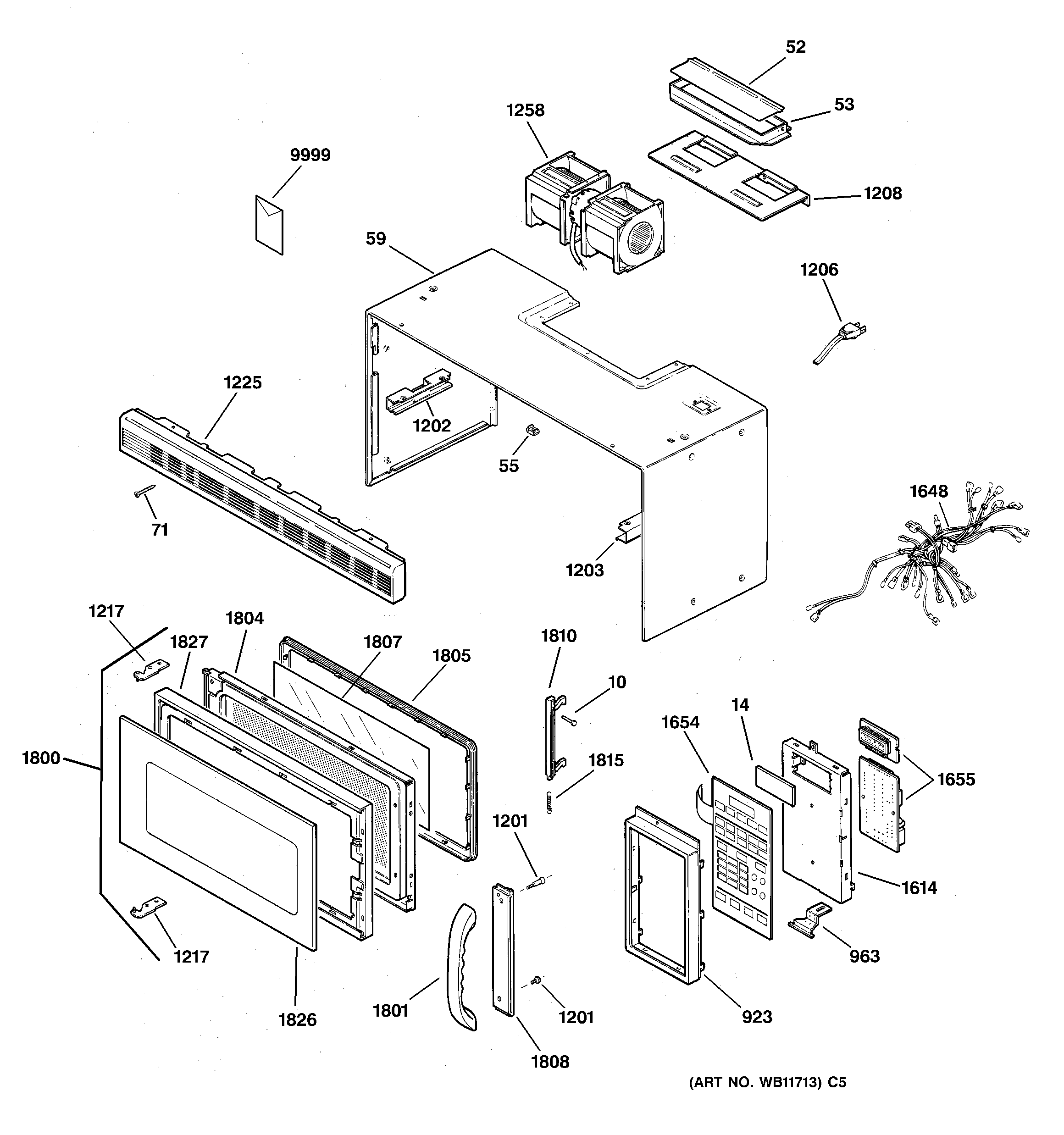

RVM1335WC001 CASE, DOOR & CONTROLS
Products
| Position | Product |
|---|---|
| 10 | GEN WB06X10025 |
| 14 | GEN WB36X10070 |
| 52 | WB06X10129 GE Oven Damper Cover |
| 53 | WB06X10436 GE Oven Hood Damper Assembly |
| 55 | ASM.- NUT HOLDER |
| 59 | GEN WB56X10143 |
| 71 | SCREW TRUSS HD. 4X12MM |
| 923 | GEN WB07X2092 |
| 963 | HINGE-C/BOX |
| 1201 | SCREW, TAPPING |
| 1202 | GEN WB56X10167 |
| 1203 | GEN WB56X10166 |
| 1206 | GEN WB18X0566 |
| 1208 | GEN WB06X0387 |
| 1217 | GEN WB14X10012 |
| 1217 | GEN WB14X0203 |
| 1225 | GEN WB07X2083 |
| 1258 | GEN WB26X0182 |
| 1614 | ASSY-BKT C/PANEL |
| 1648 | WIRE HARNESS-A |
| 1654 | GEN WB27X10380 |
| 1655 | ASSY PCB PARTS |
| 1800 | GEN WB55X1009 |
| 1801 | GEN WB15X0338 |
| 1804 | ASSY DOOR-E |
| 1805 | GEN WB55X0986 |
| 1807 | GEN WB36X0943 |
| 1808 | BRACKET - DOOR |
| 1810 | GEN WB10X0301 |
| 1815 | GEN WB09X0303 |
| 1826 | GEN WB36X10156 |
| 1827 | DOOR-A |
| 9999 | GEN 31-20943 |
| 9999 | GEN 49-40111 |
