RVM1435WH001 MICROWAVE

RVM1435WH001 MICROWAVE

Written by

in

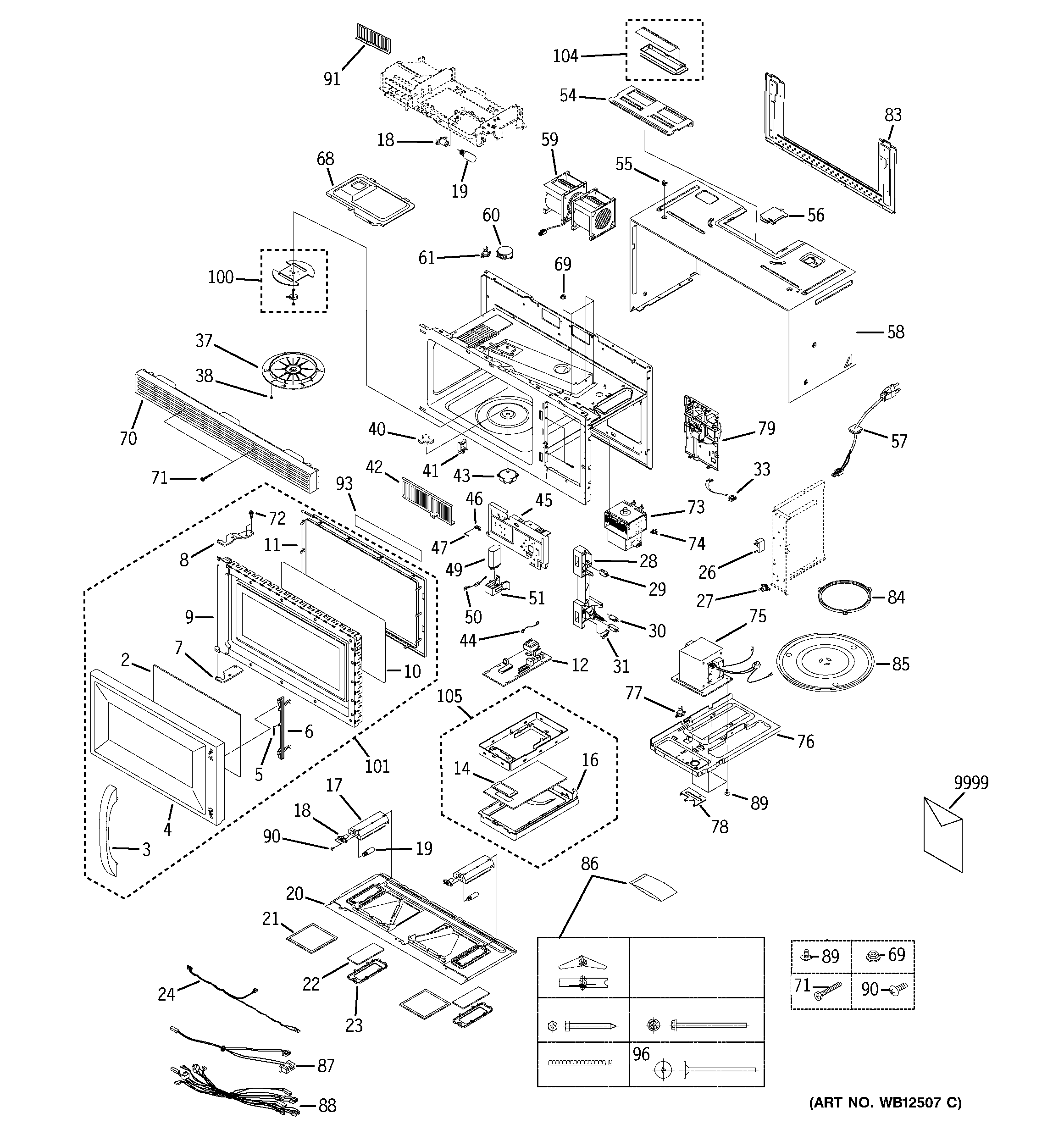

RVM1435WH001 MICROWAVE

Products

Position	Product
2	GEN WB36X10206
3	HANDLE
3	WB15X10023 GE Oven Door Handle
4	GEN WB55X10601
4	GEN WB55X10612
5	GEN WB09X10013
6	LATCH, DOOR
7	HINGE- LOWER
8	HINGE- UPPER
9	DOOR CHOKE & LINER BK
10	GEN WB36X10068
11	GEN WB55X10137
12	SMARTBOARD
14	GEN WB36X10070
16	GEN WB07X10529
16	GEN WB07X10532
17	GEN WB06X10117
18	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19	WB36X10003 GE Oven 40W 130V Light Bulb
20	GEN WB56X10089
20	GEN WB56X10087
21	WB6X486 GE Microwave Range Vent Hood Grease Filter
22	GEN WB36X10167
23	COVER LAMP
23	COVER LAMP
24	GEN WB18X10177
26	WB27X10170 GE Oven Capacitor
27	GEN WB27X10194
28	GEN WB06X10127
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
33	GEN WB18X10055
37	GEN WB06X10130
38	BUTTON-LOCK
40	WB06X10420 GE Oven Turntable Coupling
41	GEN WB01X10135
42	GEN WB06X10132
43	M/W TURNTABLE MOTOR
44	GEN WB18X10139
45	GEN WB06X10147
46	GEN WB06X10050
47	WB27X10928 GE Oven Line Fuse
49	WB27X10011 GE Microwave Capacitor
50	WB27X1160 GE Microwave High Voltage Diode
51	GEN WB06X10118
54	GEN WB06X10165
55	WB01X10071 GE Oven Holder Assembly
56	GEN WB06X10122
57	POWER CORD ASM
58	CASE,OUTER-BLACK
58	GEN WB56X10269
59	MOTOR-VENTILATION
60	WB26X10037 GE Oven Stirrer Motor
61	WB27X10195 GE Oven Thermostat
68	BRACKET-DUCT UPPER ASM
69	WB01X10065 GE Oven Flange Nut
70	WB07X10525 GE Oven Grille
70	GRILLE
71	SCREW-GRILLE
71	SCREW-GRILLE
72	GEN WB01X10064
73	WB27X10017 GE Microwave Oven Magnetron
74	GEN WB27X10166
75	GEN WB27X10133
76	GEN WB56X10228
77	WB27X1127 RANGE THERMAL FUSE
78	COVER TCO BOTTOM
79	MOTOR MAG FAN ASM
83	GEN WB56X10260
84	WB06X10139 GE Oven Rack Guide Assembly
85	WB39X10003 GE Oven Microwave Glass Cooking Tray
86	GEN WB01X10181
87	GEN WB18X10123
88	GEN WB18X10176
89	WB01X10084 GE Oven Washer Screw
90	SCREW-LAMP SOCKET
91	GEN WB06X10167
93	GEN 39-40241
96	WB01X10180 GE Oven Flat Bolt
100	GEN WB06X10134
101	GEN WB56X10345
101	GEN WB56X10359
104	WB06X10436 GE Oven Hood Damper Assembly
105	GEN WB07X10557
105	GEN WB07X10558
9999	GEN 49-40247
9999	GEN 31-40020
9999	GEN 39-40232-1
9999	GEN 49-40239
9999	REAR WALL TEMPLATE
